Product Specifications

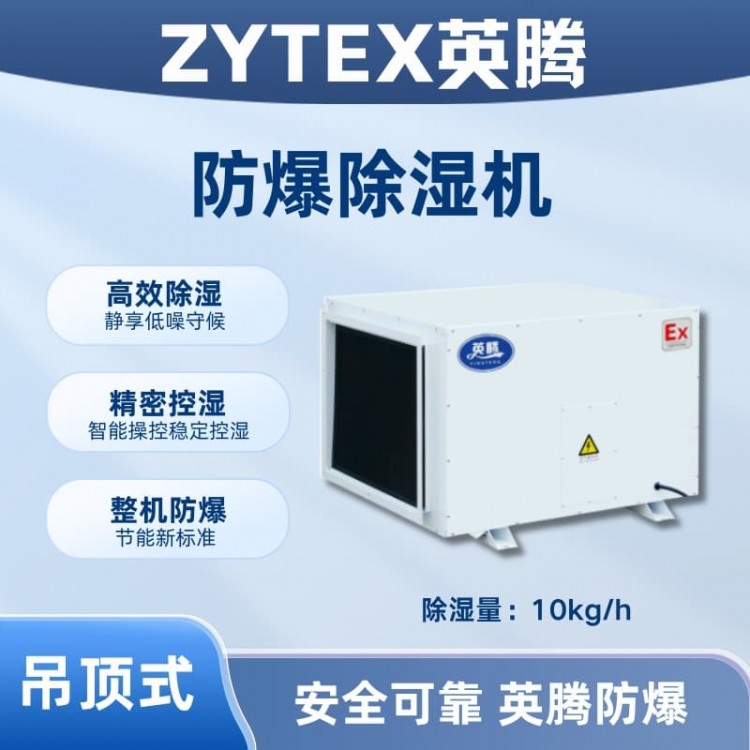

Model: BCF-10D
Brand: YingTeng
Dehumidification Rate (30℃ RH 80%): 10kg/h
Power: 380V/50Hz
Input Power: 4200W
Defrosting Method: Automatic Defrost
Airflow Rate: 2800 m³/h
Drainage Method: Tube Drainage
Airflow Method: Front air supply, rear intake
Operating Temperature: 5-38℃
Weight: 115 kg
Dimensions: Length 1100mm, Width 700mm, Height 700mm
Ex db ib mb ll BT 4 Gb / Ex db ib mb ll CT 4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only; any changes will not be notified, and the physical unit shall prevail!
2. Customizable - Optional R485 remote control interface; customizable upon request.
The YingTeng explosion-proof dehumidifier product series complies with the following standards:
GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021 *2nd Part: Explosion-proof Electrical Equipment for Explosive Gas Atmospheres - Type "d"
GB3836.4-2021 *2nd Part: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres
GB3836.9-2021 Electrical equipment for explosive gas atmospheres*Part 9: Encapsulation type “m”
GB3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Mines) JB/T10538-2005 Explosion-proof Dehumidifiers and Air Conditioners
The YingTeng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC classifications; explosive hazardous areas formed by mixtures of flammable gases, vapors, and air in T1 to T4 groups.
The "Yingteng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. Yingteng explosion-proof dehumidifiers are suitable for locations with temperature requirements. They have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certificates and explosion-proof CCC certificates. These dehumidifiers feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The full series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include: portable explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature control explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and corrosion-resistant explosion-proof dehumidifiers, etc.).
Yinteng Explosion-proof Dehumidifier Features
LCD Screen: Features a sleek and stylish LCD screen.
Compressor: Utilizes a branded compressor, featuring low noise and reliable operation.
Automatic Defrosting: Compressor with a 3-minute delay protection, automatic defrosting
Safety: Low-voltage control for safer use
Mobility: Equipped with swivel casters at the base for easy movement.
Drainage Method: Continuous drainage through hose.
Energy-saving, time-saving, and highly efficient energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts off upon meeting requirements, and activates dehumidification if exceeded.
Highly effective dehumidification, essential for large warehouses, large workshops, and underground garages, etc.
