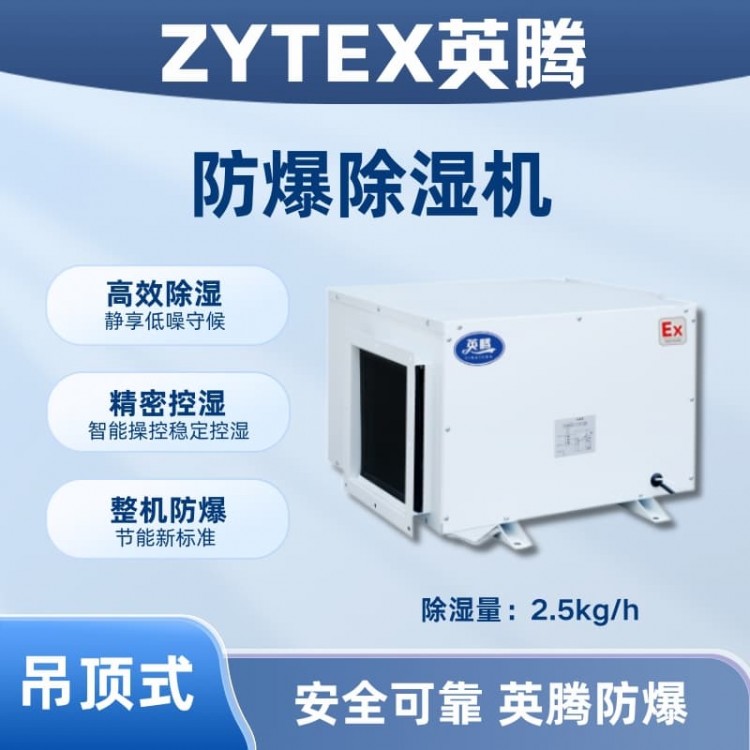

Product Specifications
Model: BCF-2.5D
Brand: YingTeng
Dehumidification Rate (30℃ RH 80%): 2.5 kg/h
Power Supply: 220V/50Hz
Input Power: 880W
Defrosting Method: Automatic Defrost
Circulating Airflow: 365 m³/h
Drainage Method: Hose Drainage
Airflow Direction: Front Delivery, Rear Intake
Operating Temperature: 5-38℃
Weight: 28 kg
Dimensions: Length 855mm, Width 600mm, Height 350mm
Ex db ib mb ll BT 4 Gb / Ex db ib mb ll CT 4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only. Any changes will not be notified in advance, and the physical unit shall prevail!
2. Customizable - with optional R485 remote control interface; customizable as required.
YingTeng series explosion-proof dehumidifiers comply with the following standards:
GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021 *2nd Part: Explosion-proof electrical equipment for explosive gas environments "d" type
GB3836.4-2021 *2nd Part: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres
GB3836.9-2021 *9th Part: Encapsulated Type "m" Electrical Equipment for Explosive Gas Atmospheres
GB3836.15-2017 Electrical equipment for explosive gas atmosphere*Part 15: Electrical installation in hazardous areas (excluding coal mines) JB/T10538-2005 Explosion-proof Dehumidifiers and Air Conditioners
The YingTeng explosion-proof dehumidifier can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Applicable environment: Temperature 5°C to 38°C, free from corrosive gases.
c) Areas with IA, IIB, IIC classifications; T1 to T4 groups of flammable gases, vapors, and air mixtures that pose explosion hazards.
The "Yingteng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. Yingteng explosion-proof dehumidifiers are suitable for locations with temperature requirements. They have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The full series of explosion-proof dehumidifiers are equipped with brand-name compressors, microcomputer intelligent control, digital display, and offer low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include mobile explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature control explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and corrosion-resistant explosion-proof dehumidifiers, etc.).
Yinteng Explosion-proof Dehumidifier Features
LCD Display: Utilizes a sleek and stylish LCD display.
Compressors: Utilizing renowned brand compressors, low noise, reliable operation.
Automatic Defrost: Compressor with 3-minute delay protection, automatic defrost
Safety: Low-voltage control for safer use
Mobility: Equipped with swivel casters at the base for easy movement.
Drainage Method: Continuous drainage through hose.
Energy-saving, time-saving, and high efficiency in energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set to meet requirements, will automatically shut down upon reaching requirements, and will activate dehumidification if exceeded.
Strong dehumidification, essential for large warehouses, large workshops, underground garages, and similar locations.
