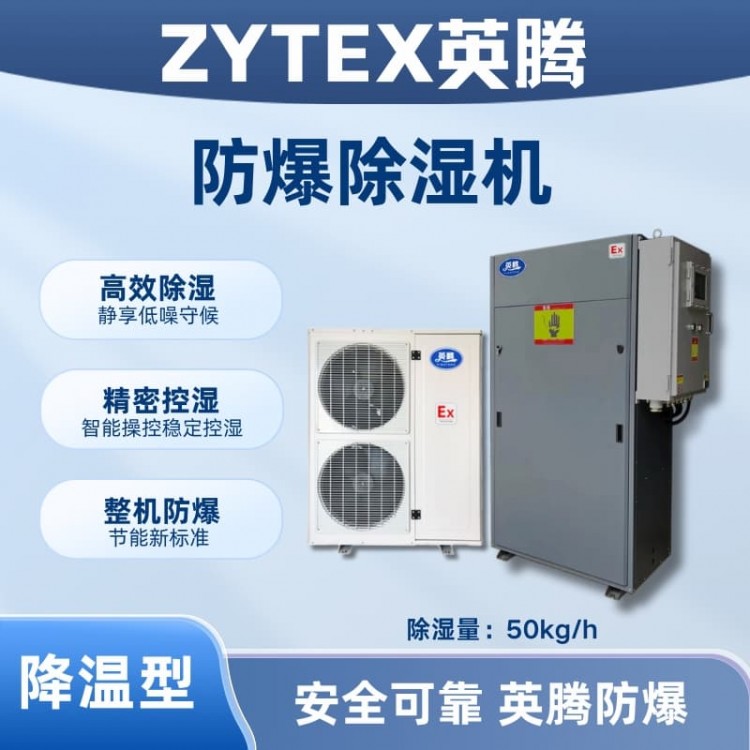

Product Specifications
Brand: YingTeng
Product Model: BCF-50JW
Control Range (Temperature): 18-35℃ ±1℃
Control Accuracy (Humidity): 40%-70% ± 5%
Cooling capacity: 55 kW
Heating Power: 24 kW
Dehumidification Capacity: 50kg/h
Re-circulating Airflow: 12,000 m³/h
Internal unit power supply: 380V/50Hz
Control System: 7-inch touch screen intelligent control system
Fan Power (Indoor): 0.75*2 kW
External Machine Power: 23kW
Interior unit dimensions: 1400×650×2000mm
Internal Unit Weight: 200kg
Tubing: Single System: 25/19
Airflow Type: Top Blower
External Unit Dimensions (Side Air Out): 1500×810×1515mm
Outboard Weight: 350kgg
Outboard Power Supply: 380V/50Hz
Outboard Quantity: 1
Explosion-proof marking: ExdbibmbllBT4Gb/ExdbibmbllCT4Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only. Any changes will not be notified, and the physical unit shall prevail!
2. Customizable - with optional R485 remote control interface; available for customization as required.
The Yinteng Explosion-Proof Dehumidifier Series complies with the following standards:
GB3836.1-2021 *1st Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021, Part 2: Intrinsically Safe "d" Type Electrical Equipment for Explosive Gas Atmospheres *2
GB3836.4-2021, Part 2: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres *2
GB3836.9-2021 *9 Part: Encapsulation Type "m" Electrical Equipment for Explosive Gas Atmospheres
GB 3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Coal Mines) JB/T 10538-2005 Explosion-proof Dehumidifiers and Air Conditioners
The Yingteng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m;
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC exist; explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from groups T1 to T4.
The "YingTeng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases, steam, and air mixtures pose explosion hazards. YingTeng explosion-proof dehumidifiers are suitable for spaces with temperature requirements. They have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have received explosion-proof certification and CCC certification. These dehumidifiers feature an attractive appearance, reasonable design, and easy installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include mobile explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature control explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and corrosion-resistant explosion-proof dehumidifiers, etc.).
YingTeng Temperature-Controlled Explosion-Proof Dehumidifier Features
LCD Screen: Equipped with a sleek and stylish LCD screen.
Compressors: Utilizing brand-name compressors with low noise and reliable operation.
Automatic Defrosting: Compressor with 3-minute delay protection, automatic defrosting
Safety: Utilizes low-voltage control for enhanced safety;
Mobility: Equipped with swivel casters at the base, allowing for easy movement.
Drainage Method: Continuous drainage via hose
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full-automatic control, timer on/off.
Humidity can be set as required, automatically shuts down upon reaching the required level, and starts dehumidification when exceeding it.
High-efficiency dehumidification, essential for large warehouses, large workshops, and underground garages.
YingTeng temperature control type explosion-proof dehumidifier working principle:
As ambient air passes over the evaporator surface, due to the evaporator's temperature being below the dew point of the air, water vapor condenses in the water collection tray and is drained out through pipes. This reduces the humidity of the air. The room can be heated, cooled, and dehumidified according to the user's requirements for the environmental temperature and humidity.
The Temperature Control and Explosion-Proof Dehumidifier combines effective cooling and dehumidification into one unit, mainly consisting of: the cooling section, the preliminary filter section, and the circulating fan section. It features an upward air supply and downward return air from the front side, controlled by microcomputer programming to ensure efficient operation in each section, meeting the requirements for temperature and humidity in the operating environment.
Yiting Temperature-Controlled Explosion-Proof DehumidifierApplication Fields:
Aerospace & Aviation: Used for assembly and testing sites of satellites and spacecraft, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly important. Yingteng's cooling and explosion-proof dehumidification units can create an excellent environment for pharmaceutical production to ensure product quality.
Electronics Industry: Low humidity requirements for the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Cooling, explosion-proof, and dehumidifying machines with sterilization capabilities are particularly suitable for process conditions requiring constant temperature and dry air for sensitive products like milk powder, freeze-dried vegetables, animal glue, and sugar in their production lines.
Warehouse, library, archive room: Stored items, books, documents, etc. can be preserved in a controlled temperature and humidity environment for long-term storage without damage.
Automotive Industry: The temperature control, explosion-proof, and dehumidification unit is an indispensable air treatment equipment in the production of automotive parts in the automotive industry.
