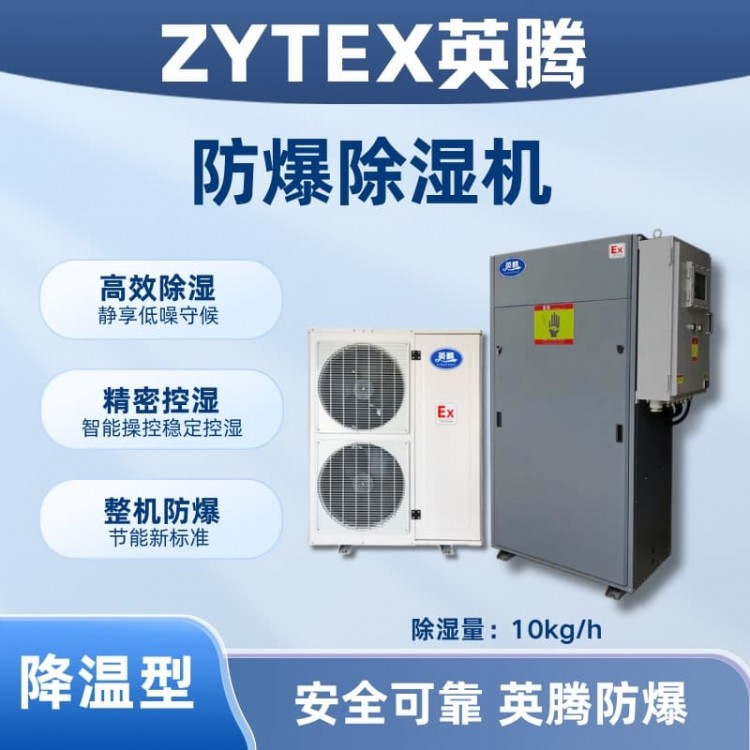

Product Specifications
Brand: YingTeng
Product Model: BCF-10JW
Control Range (Temperature): 18-35℃ ±1℃
Control Precision (Humidity): 40%-70% ±5%
Cooling Capacity: 12.7 kW
Heating Power: 10 kW
Dehumidification Capacity: 10kg/h
Recirculating air volume: 2800 m³/h
Internal Unit Power Supply: 380V/50Hz
Control System: 7-inch Touchscreen Intelligent Control System
Fan Power (Indoor): 0.25 kW
Outboard Power: 6kW
Inner Unit Dimensions: 950×550×1800mm
Internal Unit Weight: 90kg
Tubing: 12.7mm/19mm
Blow Type: Side Blowing / Top Blowing
Outdoor Unit Dimensions (Side Air Out): 750×750×1050mm
(Extrusion Wind): 1120×405×1330mm
Outboard Weight: 130kg
Outboard Power Supply: 380V/50Hz
Unit Quantity: 1
Ex db IIB T4 Gb / Ex db IIB C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only; please note that no prior notice will be given of any changes, and the physical unit shall be the standard!
2. Customizable - Optional R485 remote control interface; available for customization as required.
The YingTeng series explosion-proof dehumidifiers comply with the following standards:
GB3836.1-2021*1st Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021, Part 2: Electrical Equipment for Explosive Gas Atmospheres - Type "d" Intrinsically Safe
GB3836.4-2021 *2nd Part: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres
GB3836.9-2021 Electrical equipment for explosive gas atmospheres*Part 9: Encapsulation type “m”
GB 3836.15-2017 Electrical equipment for explosive gas atmosphere * Part 15: Electrical installation in hazardous areas (excluding coal mines) JB/T 10538-2005 Explosion-proof Dehumidifiers and Air Conditioners
The Yinteng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) Areas with IA, IIB, IIC; explosion hazards from mixtures of flammable gases, vapors, and air in groups T1 to T4.
The "Yingteng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology and is widely applicable in Class 1 and 2 flammable and explosive environments. It is suitable for scientific research, oil, chemical, pharmaceutical, power plants, and other locations where there may be or could be II A, II B groups of T1 to T4 combustible gases, steam, and air mixtures posing explosion hazards. Yingteng explosion-proof dehumidifiers are suitable for environments with temperature requirements and have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The entire series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include: portable explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature-regulating explosion-proof dehumidifiers, cooling-type explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, corrosion-resistant explosion-proof dehumidifiers, etc.)
YingTeng Temperature-Controlled Explosion-Proof Dehumidifier Features
LCD Screen: Features a sleek and stylish LCD screen.
Compressors: Utilizing brand-name compressors, low noise, and reliable operation.
Automatic Defrosting: Compressor with 3-minute delay protection, automatic defrosting
Safety: Low-voltage control for safer operation.
Mobile Method: Equipped with swivel casters at the base, allowing for easy movement.
Drainage Method: Continuous drainage via hose.
Energy-saving, time-saving, and highly efficient energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts down upon meeting requirements, and activates dehumidification when exceeding limits.
Strong dehumidification, essential for large warehouses, workshops, and underground parking garages.
YingTeng temperature-controlled防爆dehumidifier working principle:
As ambient air passes over the evaporator surface, due to the evaporator temperature being below the dew point of the air, water vapor condenses in the collection tray and is drained out through pipes. This reduces the moisture content of the air. The indoor environment can be heated, cooled, and dehumidified according to the user's requirements for temperature and humidity in the operating environment.
The temperature control and explosion-proof dehumidifier combines refrigeration and dehumidification into one unit, mainly consisting of: refrigeration section, preliminary filtration section, and circulating fan section. It features an air supply from above and return air from the front side below, utilizing microcomputer programming to effectively manage each operational section, ensuring the required temperature and humidity levels in the usage environment.
Yiting Temperature-Controlled Explosion-Proof DehumidifierApplication Fields:
Aerospace & Aviation: Used for satellite and spacecraft assembly and testing facilities, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly important. Yingteng's cooling and explosion-proof dehumidification units can create an excellent environment for pharmaceutical production to ensure product quality.
Electronics Industry: Low humidity requirements for the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Temperature control, explosion-proof dehumidifiers with sterilization function are particularly suitable for process conditions requiring constant temperature and dry air for the production lines of heat-sensitive foods such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive room: Stored items, books, documents, etc. can be preserved in a controlled temperature and humidity environment for long-term preservation without damage.
Automotive Industry: The temperature control, explosion-proof, and dehumidification unit is an indispensable air treatment equipment in the production of automotive parts in the automotive industry.
