Automatic Weft Insertion Machine - Optional Solution for Technical Upgrades for Weaving Enterprises:
Hand-sewn warping no longer meets the development trend of modern textile enterprises, which require small batch production, a variety of products, high difficulty, and short delivery times. The weaving industry is introducing automatic warp threading machines to ensure warp threading quality and delivery dates, catering to the ever-changing production needs of the current textile market and maintaining a competitive edge.
For example, with the efficiency of a domestic textile company's 80S and 100S high-count, high-density cotton varieties:
Handweaving: Two people need 32 hours to weave a pair of 340-type 100S (total warp ends 28,000) yarn beams simultaneously.
Automatic warp threading: It takes only 4 hours to thread a pair of 340 type 100S (total warp ends 28,000) sizing reel.
Yongxu Sheng warp knitting machine features:
The Yongxu Sheng warping machines are equipped with an electronic double warp detection device, which can detect double yarns and automatically stop without twisting, thereby enhancing fabric quality. Reducing double warp occurrences decreases warp missetting and boosts the efficiency of the loom.
Performance of the YXS-A type automatic warp threading machine:
The YXS-A automatic warping machine can reach a yarn feeding speed of 140 threads per minute. All YXS-A warping machines are modularly designed. Each machine can be customized according to the customer's specific needs and configurations can be added later. Based on the standard model, users can choose the required configurations. Depending on the company's actual production requirements, the total frame can reach 16 pages for O-type and 20 pages for J and C types.

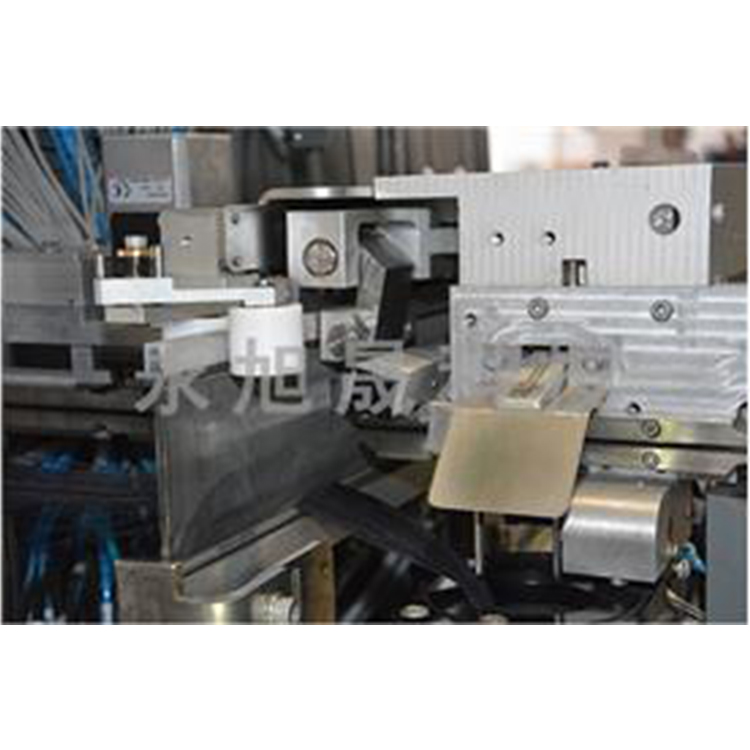

The YXS-A weft insertion device can pass the weft through the stop, reed, and reed pin with just one process. It is nearly adaptable to all reeds, and the significant feature of the reed and stop is that they do not require any auxiliary methods (such as: stopping the knife blade movement, clips, etc.) to separate them. It is applicable to both standard and double reed pins, as well as those used in jet looms, and has a wide range of yarn counts.
| Standard Type | Axle Width | 230cm/400cm |
| Racking loom with lifting mechanism | √ | |
| A single layer yarn warp | √ | |
| Two modular combed track wire assemblies | √ | |
| Total frame count (J/C type reed) | 20 | |
| Total Count (O-Type Filament) | 16 | |
| Steel Rebar Module | √ | |
| Menopause Module Menopause Rod Count | 6/8 | |
| Double yarn inspection | √ | |
| Spooling Capacity | Spinning speed | 140 rods/min |
| Yarn raw material | Cotton yarn and blended yarn (carded and combed) | √ |
| Wool (Carded and Combed Yarn) | √ | |
| Silk, single filament, and multifilament yarns | √ | |
| Up to 4.5mm wide flat yarn, bamboo flower pattern yarn, and pile yarn | √ | |
| Specialty yarns | √ | |
| count | 20-100 | |
| Spindle | Nominal Width | 230cm |
| Axle wheel diameter | 120cm | |
| A single yarn layer, with separate twist | √ | |
| Continuous Filament | Total Filament Length | 260-382mm |
| Composite silk thickness | 0.25-0.38mm | |
| Comprehensive ear type | J/C/O | |
| Comprehensive view | Not less than 1.28 x 5.5 mm | |
| Rebar | Reed Width | 230cm/40mm |
| Reed Density (Standard) | 20-350 picks per decimeter | |
| Reed Density (Fine Reed) | 351-500 picks per decimeter | |
| Reed height | 40-100mm | |
| Rebar height | 80-150mm | |
| Reed tooth depth | 16mm diameter | |
| Reed Type | Flat, curved or heavy gauge pins | |
| Menopause Tablets | Menopause Strip Width | 7-11mm |
| Menopause Pill Length | 125-180mm | |
| Menopause Patches Thickness | 0.2-0.65mm | |
| One menstrual product storage aisle | √ | |
| Control Module | System | Windows operating system |
| Monitor | Touch Smart Monitor | |
| Language | Please provide the Chinese content to be translated. | |
| Electrical power consumption | Approximately 3 kW | |
| Electrical Protection | Overload and short-circuit protection | |
| Voltage | 380W | |
| Gas Source | Inlet Pressure | 7-10bar |
| Pressure difference | ＜±0.5bar | |
| Air supply volume | Main 850NL/min; suction tube 500NL/min. Total air supply 1350NL/min. | |
| Atmospheric Dew Point | ﹣17℃ | |
| Oil content | Virtually oil-free | |
| Impurity particles | Particle size < 5 um | |
| Indoor conditions | Dust | Abrasive-free, such as glass dust and similar materials |
| Humidity | Relative humidity 30-95%, no condensation | |
| Temperature | Temperature difference within 10 hours not exceeding 15℃ | |
| Space requirements | Flooring Materials | Casting Concrete (Compacted Flooring) |
| Flatness | Non-conformity ±15 or Total variation 30mm | |
| Highness | 260mm | |
| Layout Space: Equipped with one spinning frame machine, two spinning frame machines | 70㎡、100㎡ |
