2-ton collision wall formwork trolley, bridge lifting construction vehicle, highway guardrail outer-side basket

Sales Phone: 189-0537-7135, Manager Li

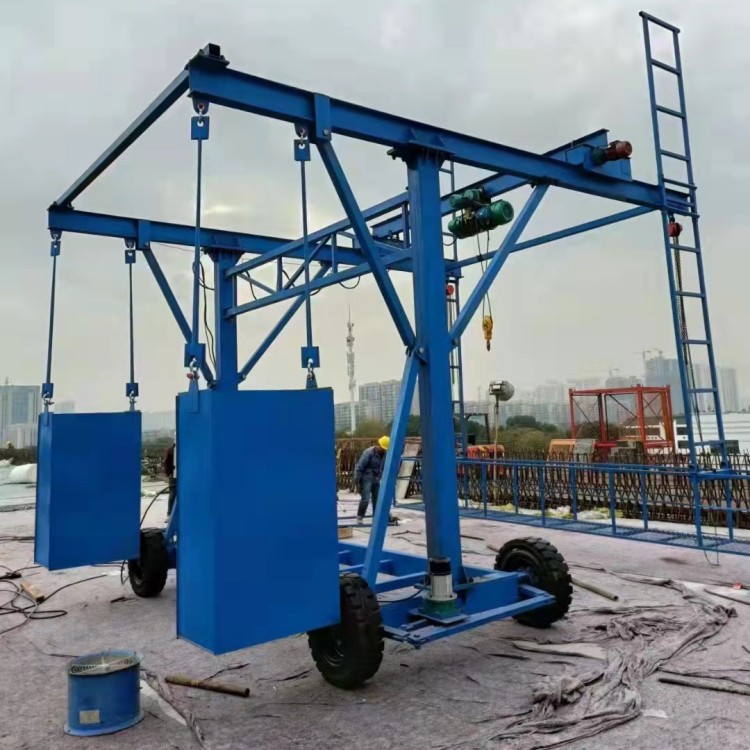

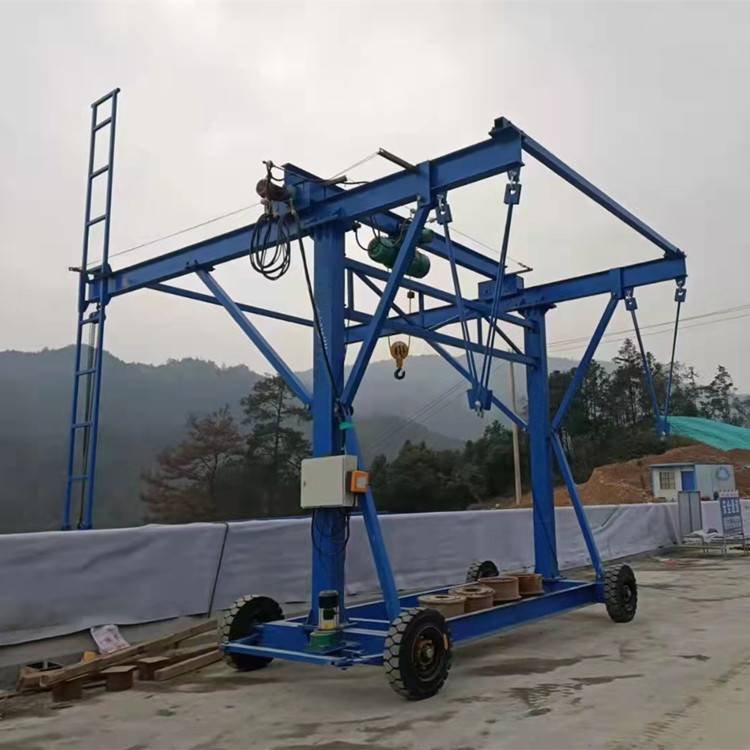

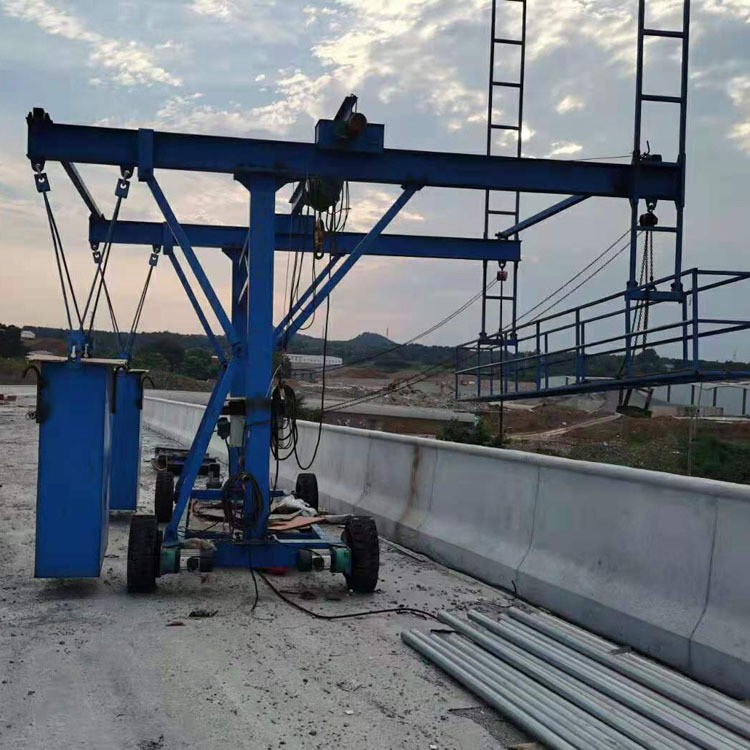

One: The collision wall template trolley is a combination of an electric hoist lifting and a side operation basket platform, used for the hoisting, transportation, installation, and dismantling of collision wall templates on highway bridge structures.
It offers a solution to the deficiencies in the existing construction methods and technologies for bridge collision walls. It allows for the overall molding, demolding, cleaning, application of release agents, and hoisting of collision wall molds, eliminating the need for repeated mold assembly and disassembly work. It provides a platform for quick overall disassembly, movement, and installation of bridge collision walls. Working principle: Composed of a mobile wheel-based chassis and an electric winch for lifting molds, as well as side safety construction hoist platforms, all operations are carried out simultaneously.
Section 3: Structural Composition:
Comprised of a reversible walking chassis (front axle steering system, rear axle drive system, walking undercarriage, etc.), brackets, stabilizers, beams, spacing rods, traveling beams, sliding frames, pulley brackets, wire rope slings, electric wire hoists, hand winches, electrical control boxes and remote controls, and counterweight blocks, etc.
Section 4: Structural Classification:
Collision wall formwork trolley used in bridge construction, which varies in construction, is generally divided into single-column formwork trolley, bridge formwork trolley, etc.

[Important Reminder]
Our products vary in batch, model, and price; online quotes are for reference only. For the exact price, please call for a quote. We can customize according to customer requirements. Please refer to the physical product for details. Please call customer service before placing an order!
