Barn Pattern Machine, Pasture Anti-Slip Grooving Machine, Dairy Yard Engraving Machine

Sales Phone: 18905377135, Manager Li

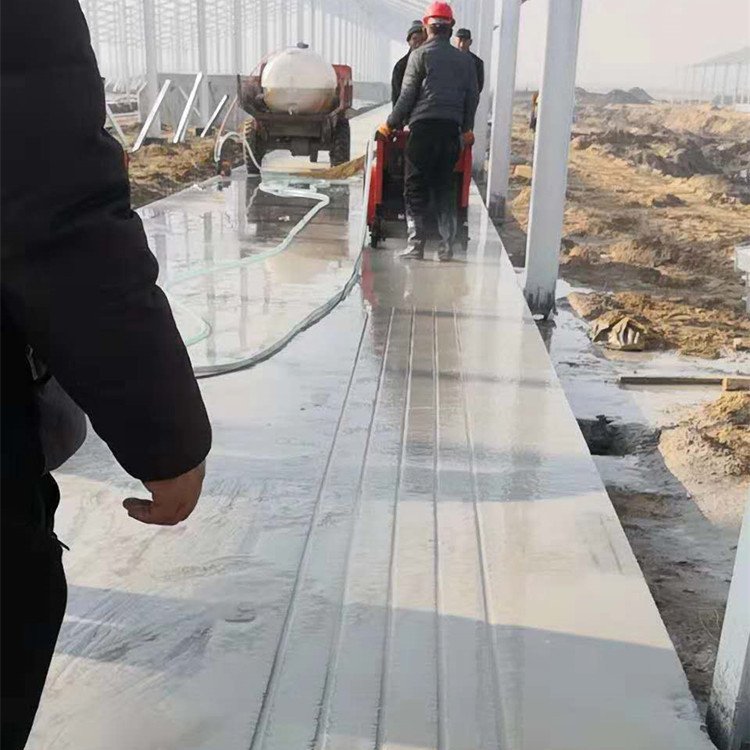

When constructing cow pens, most friends opt for concrete floors. Remember to implement anti-slip measures to prevent cows from slipping while moving, as this can cause significant harm. Many may not be aware of how to prevent slipping on concrete cow pen floors. A practical and long-lasting solution is to etch anti-slip patterns into the floor. For new pastures, you can press textures and grooves into the concrete while it's being poured. For solidified floors, use machinery to pull textures.

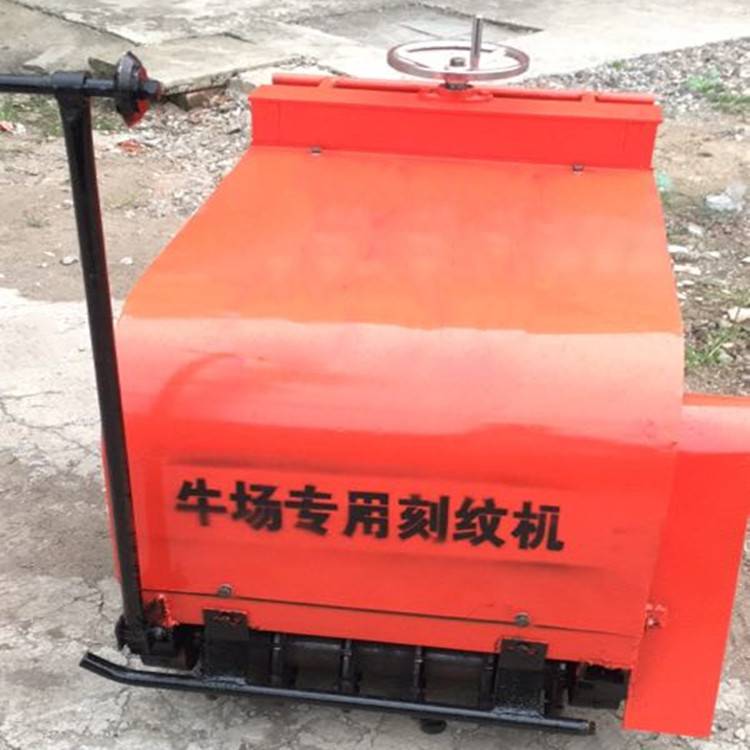

This embossed machine is primarily used for anti-slip grooves on dairy farm and barn floors.
Key Parameters:
Features: Self-propelled with guidance wheels
Model; SY-600MM
Motor Power: 15KW (1400 RPM, 4-pole motor)
Walking Motor: 0.75 kW
Number of Large Sheets: 4-8 Sheets
Pattern spacing: 5-15 cm ( customizable)
Groove Width: 1-2 cm (T or V-shaped groove)
Machine weight: 380 kg
Dimensions: 900*1000*1200mm
Over 1 meter per minute, etching 300-500 square meters in about 8 hours.

1. The bearing housing is a custom dual bearing.
2. National standard silicon steel high-temperature motor, distribution box with leakage protection/overload prevention to avoid motor burnout.
3. Equipped with a water pipe on the blade to prevent overheating and damage to the bearings.
