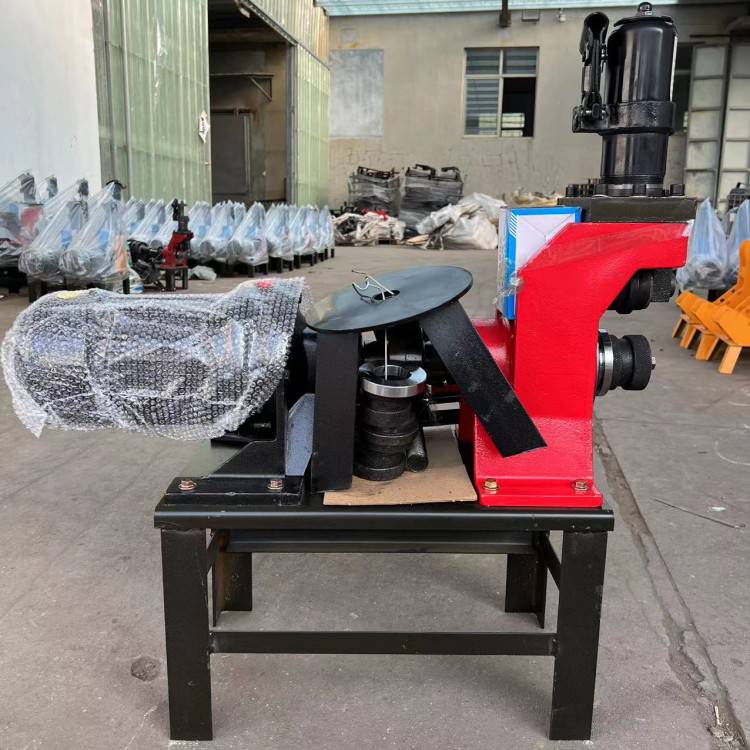

Desktop Round Tube Grooving Machine Electric Hydraulic Grooving Machine 50-219MM Fire Hose Grooving Machine

Sales Phone: 189-0537-7135, Manager Li

SYCJ Series Grooving Machine (Slotting Machine):

Roll Grooving Machine Usage: The roll grooving machine is a specialized tool used for pre-processing pipes when using groove joints as pipe connection components. Its working principle involves a rotating concave pressure roller driving the pipe to rotate, while a convex pressure roller is slowly pressed against the pipe by the action of the hydraulic cylinder, thereby forming the required grooves for installation. It is suitable for the installation of pipes in fire protection, potable water, mine, and other applications.

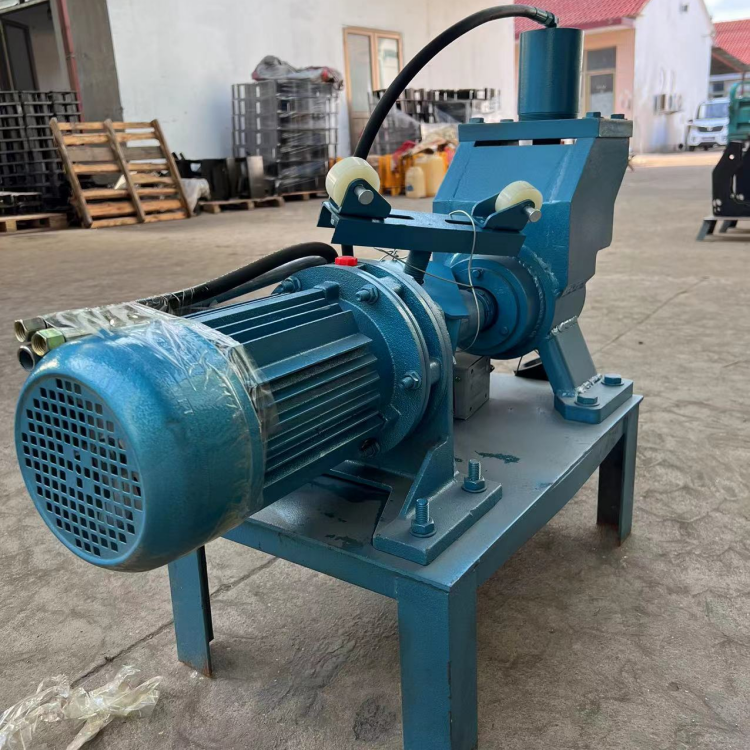

Roller Slotting Machine Structure: The housing is made of HT250 cast iron, the main shaft is made from 40Cr after tempering, featuring a double-angled roller bearing at the front. It is powered by a 1.5-kilowatt motor, with a reasonable structure and durable performance.

Model: SYYC-168, SYYC-219, SYYC-273, SYYC325, SYYC426

Processing Capability:

OD: 50-168, 76-219, 68-273, 76-325mm, 114-426mm

Thick Wall 6mm       6mm         10mm         10mm     10mm

Frequency: 50 Hz       50 Hz         50 Hz            50 Hz           50 Hz

Power: 1.1 kW   1.1 kW      1.1 kW           1.5 kW        1.5 kW

Product Voltage: 380V      380V        380V           380V           380V

Processing Range: 50-168, 76-219, 68-273, 89-325, 114-426

Weight: Net 55kg   55kg         66kg            68kg         96kg

Packaging dimensions: Length 100cm, Width 90cm, Height 40cm
