4-inch 100-type Seamless Steel Pipe Threader, Fire Pipe Thread Cutting Machine, Plumbing Pipe Threader

Sales Phone: 189-0537-7135, Manager Li

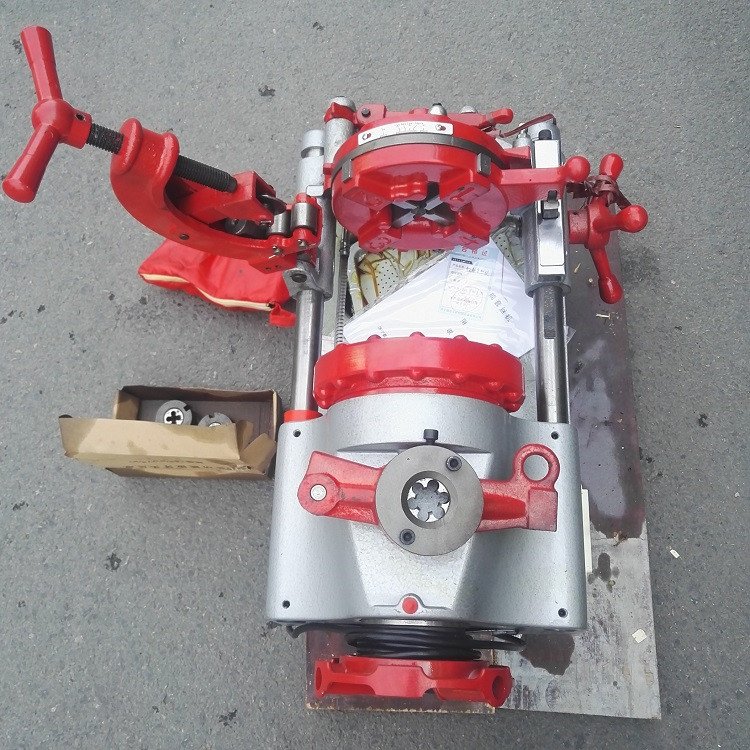

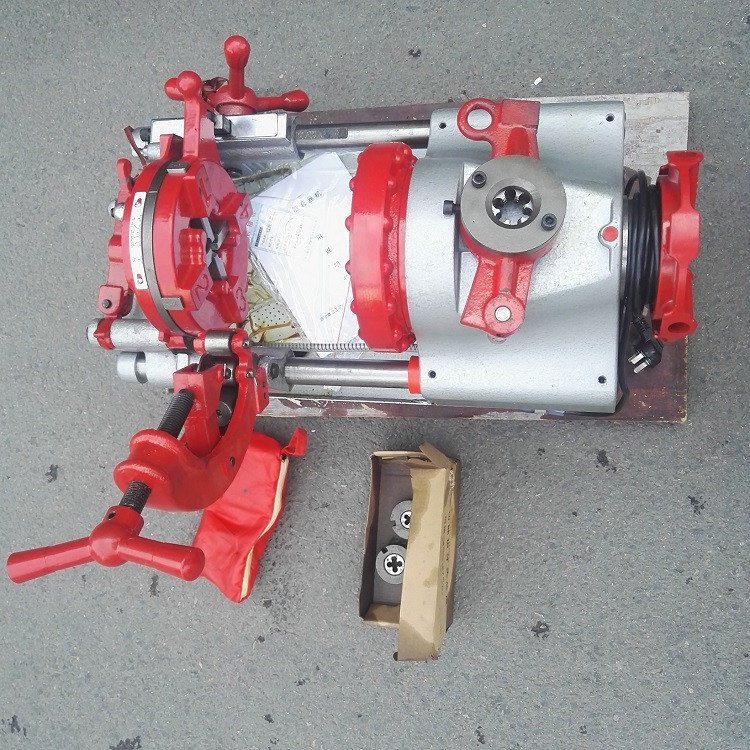

The threading machine is composed of: the body, motor, reducer box, tube chuck, tap head, blade holder, feed mechanism, and cooling system.
Operating Principle: During the operation of the threading machine, first place the pipe to be threaded into the pipe chuck, secure it with a collision, then press the start switch. The pipe will start to rotate with the chuck. Adjust the die opening size on the die head and set the thread length. Next, turn the handwheel clockwise to make the die blade on the die head apply a constant force against the rotating pipe end. The die blade will then automatically cut the thread while the cooling system sprays oil for cooling. Once the thread reaches the pre-set length, the die blade will automatically open, ending the threading process. Turn off the power, disengage the chuck, and remove the pipe.

3" Thread Cutting Tube Bending Machine Specifications:

The processing range is 1/2" - 3".

750W power

Voltage: 220V/380V

Spindle Speed: 24/9

Dimensions: 900x600x650 mm

4" Pipe Thread Cutting Machine Specifications:

The processing range is 1/2" - 4".

750W power

Voltage: 220V/380V

Spindle speed: 23/9

Dimensions: 1100x880x730 mm
