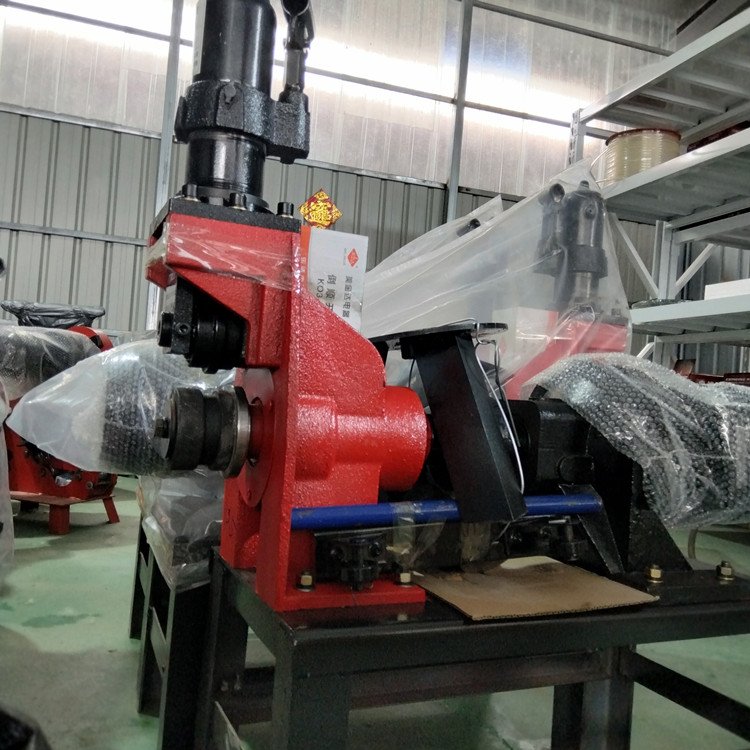

114-426mm Large Pipe Grooving Machine, Seamless Steel Pipe Pressing Grooving Machine, Heavy-duty Desktop Rolling Grooving Machine

426 Grooving MachineSpecs and Models:
Pressing groove range φ114~φ426 (a set includes 2 upper pressing rolls and 3 lower pressing rolls) - the upper rolls are of the same specification and do not require replacement; only the lower rolls are changed when in use.
φ114~φ219mm, φ219~φ325mm, φ325~φ426mm, three sets of pressure rollers; roller material: GCr15 Chrome 15

Technical Specifications:
Wall Thickness: 3-12mm
Power: 3KW
RPM: 20 rpm
Voltage: 380V/3N
Frequency: 50 Hz
Rated Pressure: 20 MPa
Packaging dimensions: 1100 * 1000 * 600 mm
