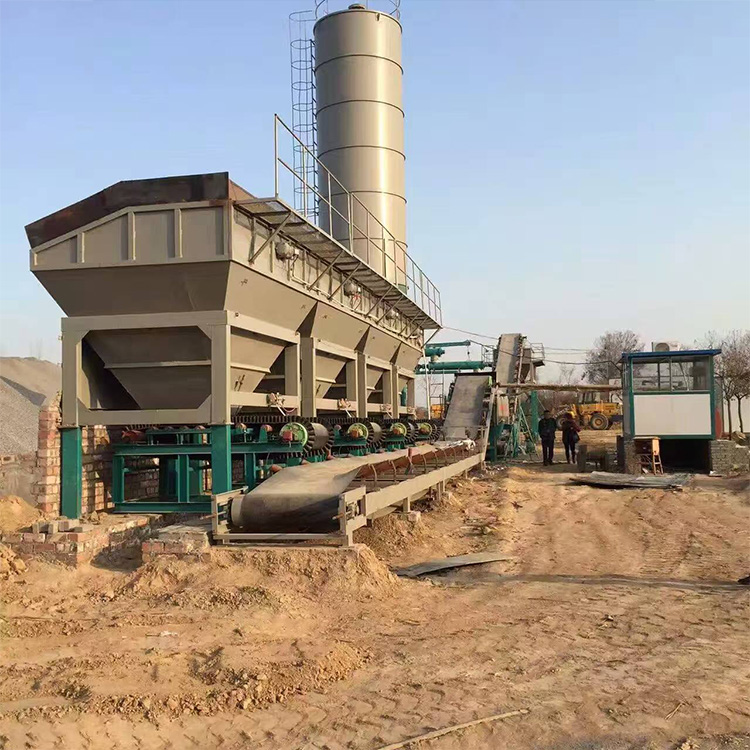

Stabilized Soil Mixing Station

Aggregate batching measurement

• The aggregate hopper is equipped with a grate screen to filter out oversized materials.

• The outer side of the bin wall is equipped with a vibration motor, which assists in discharging the bin wall smoothly and efficiently.

• The belt scale uses variable frequency speed control to ensure aggregate flow. The belt tension and neutralization are adjustable for smooth operation.

• Skirted belt design, reduces aggregate spillage.Aggregate Measuring Accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an anti-bridge device can be optional, providing efficient stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel steel frame, sturdy and durable, with a long service life.

• Prevent misalignment with dual protection: tail end helical tensioning device, adjustable belt tension at any time; central alignment idler assembly.Self-aligning.

• Scrapers are installed at both ends, effectively cleaning material from the belt surface.

3. Measurement System

• Cement measurement

Variable frequency screw metering, pollution-free, waste-free, efficientEnvironmental-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed regulation and metering, easy and quick operation.

Optional with turbine flowmeter for measurement, electricRegulation, with even smaller error: ±1%.

4. Dust Removal System

• Cement silos are available with pulse jet bag dust collectors or filter core dust collectors, offering high dust removal efficiency and low maintenance costs in the long run.

5. Mixing System

• Compared to traditional lined agitator mixers, Betong Heavy Industry's mixing tank utilizes a double horizontal shaft continuous mixer with no lining technology. It boasts high adaptability, compact size, large output, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, and smooth operation.

• Mixes various specifications and types of materials, capable of preparing a stable soil with multiple blending ratios.

• The mixing pot body is焊接 with fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system allows for automatic, semi-automatic, and manual control. It features functions such as formula input and storage, automatic correction of splashing errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarms, and real-time printing.

7. Installation After-Sales Support (No need to point to a specific location in the image; just allocate a space in the text area to write it)

• Modular design for easy installation and maintenance, and quick relocation and transportation.

WCZ Series Stable Soil Mixing Plant Technical Parameters (Single Hopper, Single Tank)

Mobile Site Technical Specifications
