Aggregate batching measurement

• The aggregate hopper is equipped with a grate screen to filter out oversized materials.

• The vibration motor is assembled on the outer side of the hopper wall, assisting in the discharge process with the vibration hopper wall, ensuring smooth and efficient operation.

• The belt scale uses variable frequency speed control to ensure aggregate flow. Belt tension and neutral adjustment are available for smooth operation.

• Skirted belt design to minimize aggregate spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an optional de-bridging device is available for efficient stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel steel frame, sturdy and durable, with a long service life.

• Prevent drift with dual protection: Tail spiral tensioning device, adjustable belt tension at any time; central alignment roller assembly.Self-aligning.

• Scrapers are installed at both ends, effectively cleaning the belt surface material.

3. Measurement System

• Cement measurement

Variable-frequency screw metering, pollution-free, waste-free, high efficiencyEco-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable-frequency speed control metering, easy and quick operation.

Optional turbine flow meter measurement, electricRegulation, with even less error: ±1%.

4. Dust Removal System

• Cement silos are available with pulse jet bag dust collectors or filter element dust collectors, offering high dust removal efficiency and low maintenance costs.

5. Mixing System

• Compared to traditional lined agitator mixers, Betong Heavy Industry's mixer employs a twin horizontal shaft continuous agitator, featuring non-lining technology. It boasts high adaptability, compact size, high output, and efficient, stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, stable operation.

• Mixes various specifications and types of materials, capable of preparing a stable soil with multiple mixing ratios.

• The mixing pot body is焊接 with fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system allows for automatic, semi-automatic, and manual control. It features functions such as formula input and storage, automatic correction of splashing errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing.

7. Installation After-Sales Support (No need to point to a location in the image; just allocate a space in the text area to write it)

• Modular design for easy installation, maintenance, and quick relocation and transportation.

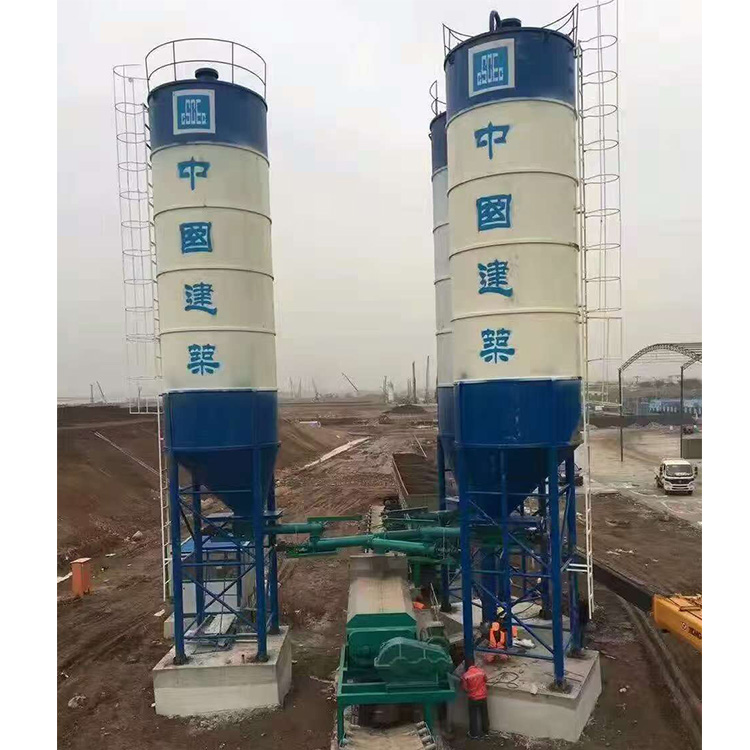

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Storage Silo):

Mobile Site Technical Specifications:
