Aggregate batching measurement

• The hopper is equipped with a grating screen to filter out oversized materials.

• The outer wall of the hopper is equipped with a vibration motor, assisting in discharge with the vibration wall, operating smoothly and efficiently.

• The belt scale utilizes variable frequency speed control to ensure aggregate flow. Belt tension and neutralization are adjustable for smooth operation.

• Skirt belt design to minimize aggregate spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an optional de-bridging device is available for effective stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel steel frame, sturdy and durable, with a long service life.

• Prevent drift with dual protection: Tail end spiral tensioning device, adjustable belt tension at any time; central alignment roller device,Self-aligning.

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement Measuring

Variable Frequency Spiral Weighing, Pollution-Free, Waste-Free, High EfficiencyEnvironmental friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed regulation metering, easy and quick operation.

Optional turbine flowmeter measurement, electricRegulation, with even smaller error: ±1%.

4. Dust Extraction System

• The cement silo can be optionally equipped with a pulse bag dust collector/filter core dust collector, offering high dust removal efficiency and low maintenance costs in the long run.

5. Mixing System

• Compared to traditional lined mixer blades, Betong Heavy Industry's mixing drum utilizes a dual-axle continuous mixer without lining technology. It boasts adaptability, compact size, high yield, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, and smooth operation.

• Can mix various specifications and types of materials, capable of preparing a wide range of stable soil blends.

• The mixing pot body is焊接 with fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system supports automatic, semi-automatic, and manual control. It features formula input and storage, automatic correction of splashing errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarms, and real-time printing capabilities.

7. Installation After-Sales Support (No need to point to a specific location in the image; just allocate a space in the text area to write it)

• Modular design for easy installation, maintenance, and quick relocation and transportation.

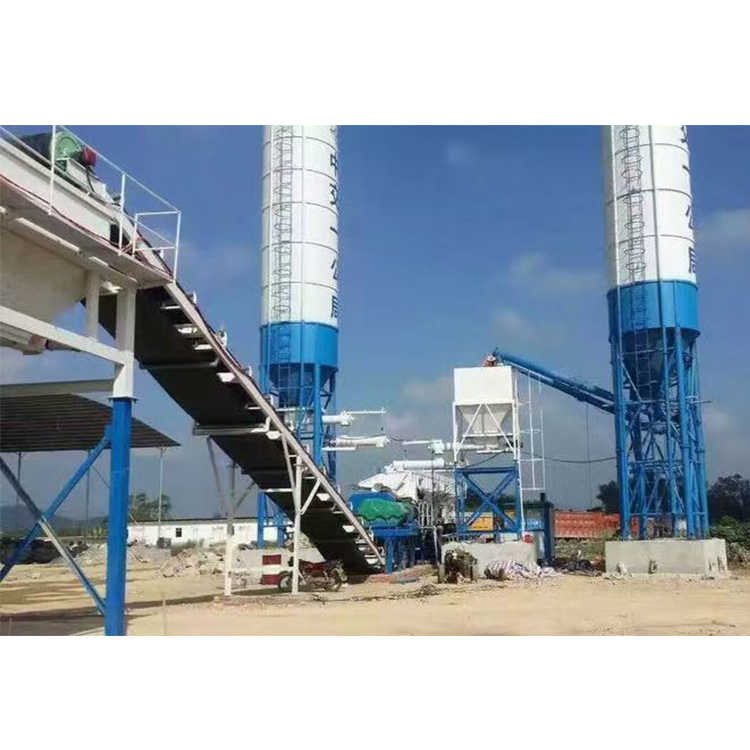

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Storage Tank):

Mobile Site Technical Specifications:
