Aggregate batching measurement

• The aggregate hopper is equipped with a grating screen to filter out oversized materials.

• The outer side of the hopper is equipped with a vibration motor, which assists in discharging the material through the vibrating hopper wall, ensuring smooth and efficient operation.

• The belt scale uses variable frequency speed control to ensure aggregate flow. Belt tension and neutralization are adjustable for smooth operation.

• Skirted belt design, minimizes aggregate spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an optional de-bridging device is available for efficient stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel steel frame, sturdy and stable, with a long service life.

• Prevent misalignment, dual protection: Tail spiral tensioning device, adjustable belt tension at any time; central alignment idler assembly,Auto-aligning.

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement measurement

Variable-frequency screw metering, pollution-free, waste-free, high efficiencyEco-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed regulation for metering, easy and quick operation.

Optional with turbine flowmeter measurement, electricRegulation, with smaller error: ±1%.

4. Dust Removal System

• The cement silo can be optionally equipped with a pulse jet bag dust collector/core filter dust collector, offering high dust removal efficiency and low cost for later maintenance.

5. Mixing System

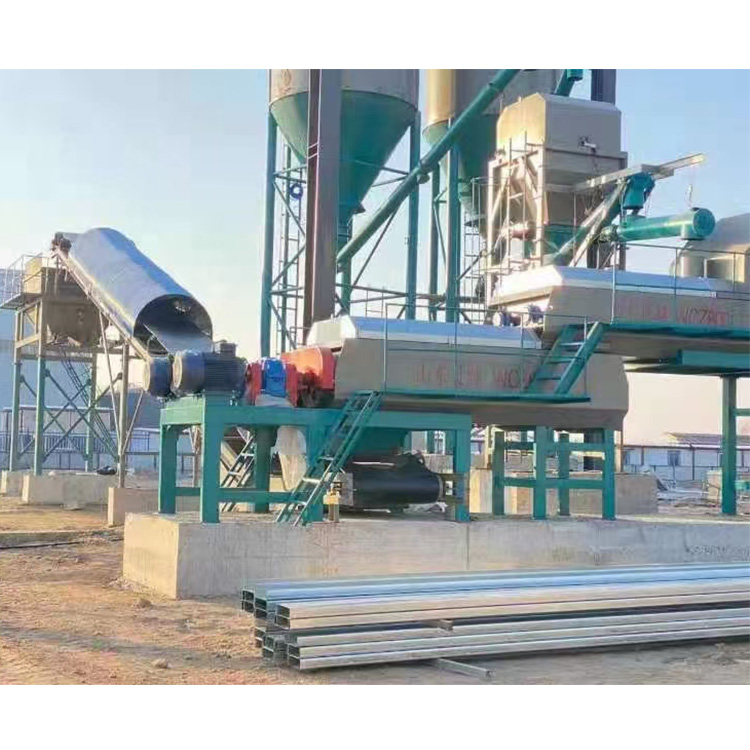

• Compared to traditional lined agitator mixers, Betong Heavy Industry's mixing drum employs a twin horizontal shaft continuous agitator without lining technology, boasting versatility, compact size, high output, and efficient, stable operation.

• Insertable agitator arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, stable operation.

• Can mix various specifications and types of materials, capable of producing stable soil with different blends.

• The mixing pot body is焊接 with fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system supports automatic, semi-automatic, and manual control. It features recipe input and storage, automatic correction of splatter errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing functions.

7. Installation After-Sales Service (No need to point to a location in the image, just allocate a spot in the text area to write it)

• Modular design for easy installation, maintenance, and quick relocation and transportation.

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Storage Tank):

Mobile Site Technical Specifications:
