Aggregate batching measurement

• The aggregate hopper is equipped with a grating screen to filter out oversized materials.

• The vibration motor is assembled on the outer side of the hopper, assisting in the discharging process with the vibration wall, ensuring smooth and efficient operation.

• The belt scale uses variable-frequency speed control to ensure aggregate flow. The belt tension and neutralization are adjustable, ensuring smooth operation.

• Skirted belt design to minimize aggregate spillage.Aggregate Measuring Precision: ±2%.

• For materials with high adhesion and tendency to bridge, an optional deflector device is available for effective stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Operation smooth, low noise, long service life。

• Channel steel frame, sturdy and durable, with a long service life.

• Prevent drift with dual protection: tail spiral tensioning device, adjustable belt tension at any time; central alignment idler unit,Self-aligning

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement measurement

Variable-frequency screw metering, pollution-free, waste-free, high efficiencyEco-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed control metering, easy and quick operation.

Optional with turbine flowmeter for measurement, electricRegulation, with smaller error: ±1%.

4. Dust Removal System

• The cement silo is optional with pulse bag dust collector/element filter dust collector, offering high dust removal efficiency and low cost for post-maintenance.

5. Mixing System

• Compared to traditional lined mixers, Betong Heavy Industry's mixing tank utilizes a twin horizontal shaft continuous mixer with no lining technology. It boasts high adaptability, compact size, high output, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, smooth operation.

• Mixes various specifications and types of materials, can formulate a variety of stable soil blends.

• The mixing pot body is焊接 with full-automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system allows for automatic, semi-automatic, and manual control. It features functions such as formula input and storage, automatic correction of splash errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing.

7. Installation After-Sales Service (No need to point to the location in the image, just arrange a space in the text area to write it)

• Modular design for easy installation, maintenance, and quick relocation and transportation.

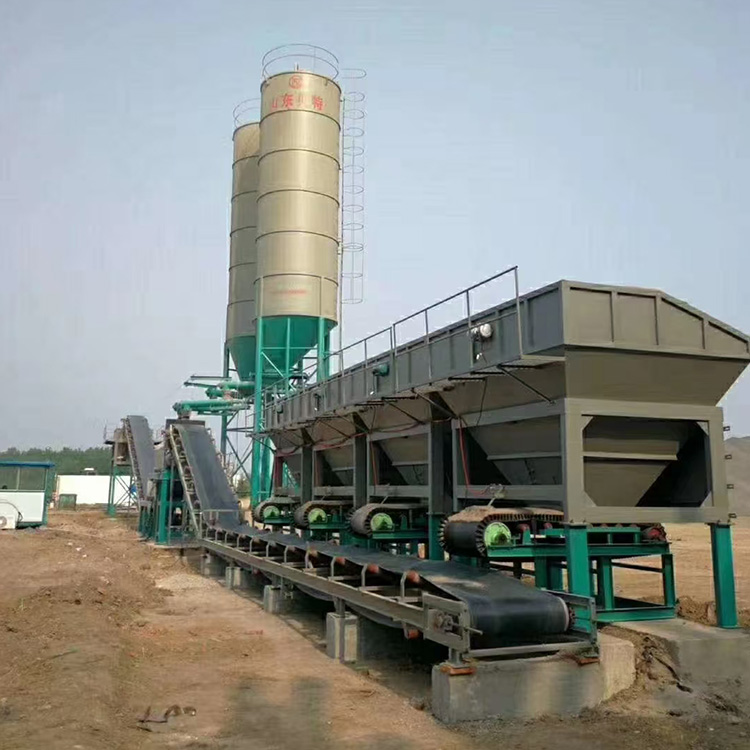

WCZ Series Stabilized Soil Mixing Station Technical Parameters (Four Hopper, Single Storage Tank):

Mobile Site Technical Specifications:
