Aggregate batching measurement

• The grit bin is equipped with a grating screen to filter out oversized materials.

• The outer side of the hopper is equipped with a vibration motor, which assists in discharging the material through the vibrating hopper wall, ensuring smooth and efficient operation.

• The belt scale uses variable frequency speed control to ensure aggregate flow. The belt tension and neutral alignment are adjustable, ensuring smooth operation.

• Skirted belt design, minimizes aggregate spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an optional deflector device is available for efficient stripping.

2. Aggregate Conveying

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel steel frame, sturdy and durable, with a long service life.

• Prevent drift with dual protection: Tail spiral tensioning device, adjustable belt tension at any time; Central alignment idler assembly,Self-aligning.

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement Measuring

Variable-frequency screw metering, pollution-free, waste-free, high efficiencyEnvironmental-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed control metering, easy and quick operation.

Optional with Turbine Flow Meter Measurement, ElectricRegulation, with smaller error: ±1%.

4. Dust Removal System

• The cement silo is available with an optional pulse bag dust collector/element dust collector, featuring high dust removal efficiency and low maintenance costs in the long run.

5. Mixing System

• Compared to traditional lined agitator mixers, Betong Heavy Industry's mixing drum utilizes a twin horizontal shaft continuous agitator, featuring non-lining technology. It boasts strong adaptability, compact size, high yield, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, and smooth operation.

• Mixes a variety of materials in different specifications and types, capable of producing stable soil with various blending ratios.

• The mixing pot body is constructed using fully automatic robotic welding technology, ensuring quality and long service life.

Control System

• The electrical control system offers automatic, semi-automatic, and manual control capabilities. It includes features such as formula input and storage, automatic correction of splash errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing.

7. Installation After-Sales Support (No need to point to a location in the image; just arrange a space in the text area to write it)

• Modular design for easy installation and maintenance, as well as quick relocation and transportation.

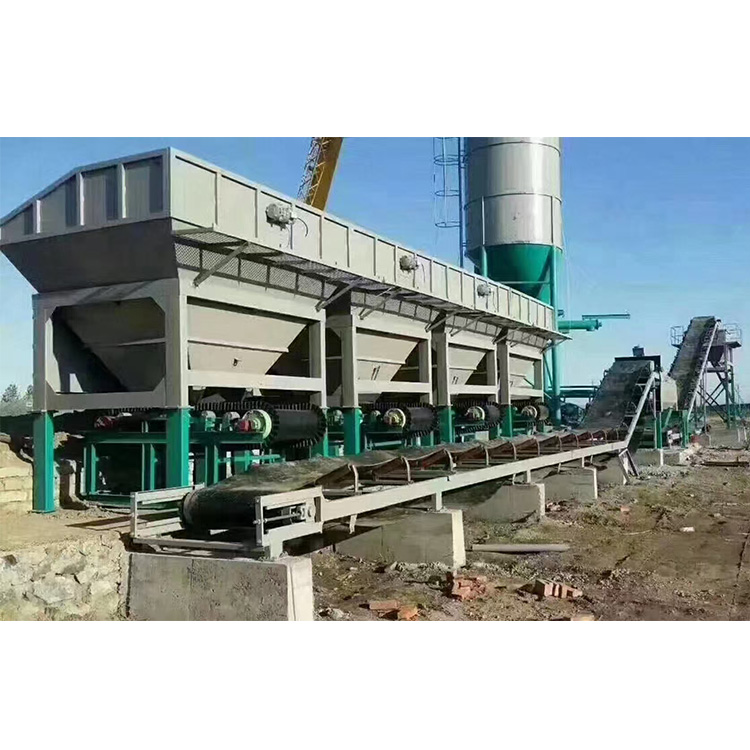

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Bin):

Mobile Site Technical Specifications:
