Aggregate batching measurement

• The hopper is equipped with a grating sieve to filter out oversized materials.

• The outer side of the hopper is equipped with a vibration motor, which assists in discharging materials through the vibrating hopper walls, ensuring smooth and efficient operation.

• The belt scale utilizes variable-frequency speed control to ensure aggregate flow. The belt tension and neutral alignment are adjustable for smooth operation.

• Skirted belt design to minimize aggregate spillage.Aggregate Measuring Accuracy: ±2%.

• For materials with high stickiness and prone to arching, an arch-breaking device is available for effective stripping.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Smooth operation, low noise, long service life。

• Channel frame, sturdy and durable, with a long service life.

• Prevent misalignment with dual protection: Tail spiral tensioning device, adjustable belt tension at any time; Central alignment idler assembly,Self-aligning

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement Dosage

Variable-frequency screw metering, pollution-free, waste-free, efficientEco-friendly, cement measurement accuracy: ±1%.

• Water Meter

Manual variable frequency speed control metering, easy and quick operation.

Optional with turbine flowmeter for measurement, electricRegulation, with even smaller error: ±1%.

4. Dust Removal System

• The cement silo is optional with pulse jet bag dust collector/filter element dust collector, featuring high dust removal efficiency and low maintenance costs in the long run.

5. Mixing System

• Compared to traditional lined mixers, Betong Heavy Industry's mixing drum utilizes a twin horizontal shaft continuous mixer with no lining technology, offering strong adaptability, compact size, high yield, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, smooth operation.

• Can mix a variety of materials in different specifications and types, capable of producing stable soil with various mixing ratios.

• The mixing pot body is焊接 with fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system allows for automatic, semi-automatic, and manual control. It features functions such as formula input and storage, automatic correction of splashing errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing.

7. Installation After-Sales (No need to point to a specific location in the image; just allocate a space in the text area to write it)

• Modular design for easy installation and maintenance, and quick relocation and transportation.

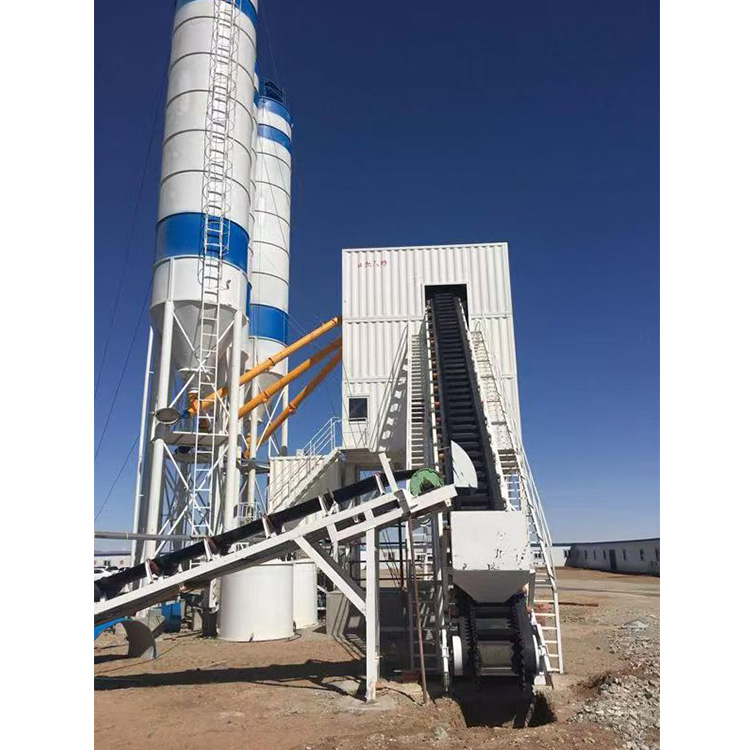

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Bin):

Mobile Site Technical Specifications:
