Aggregate batching measurement

• The aggregate hopper is equipped with a grating screen to filter out oversized materials.

• The vibration motor is assembled on the outer side of the hopper, assisting in the discharge process with the vibration wall, ensuring smooth and efficient operation.

• The belt scale uses variable frequency speed control to ensure aggregate flow. Belt tension and neutralization are adjustable for smooth operation.

• Skirted belt design, minimizes material spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and prone to bridging, an optional deflector device can be added for efficient bridging removal.

2. Aggregate Conveyance

• Electric roller, high load-bearing capacity.Operates smoothly, low noise, long service life。

• Channel frame, sturdy and durable, with a long service life.

• Prevent misalignment with dual protection: tail end spiral tensioning device, adjustable belt tension at any time; central alignment idler unit,Self-aligning

• Scrapers are installed at both ends to effectively sweep away material from the belt surface.

3. Measurement System

• Cement measurement

Variable-frequency screw metering, pollution-free, waste-free, efficientEco-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual frequency conversion speed regulation with convenient and quick operation.

Optional with Turbine Flow Meter, ElectricRegulation, with smaller error: ±1%.

4. Dust Removal System

• Cement silos are available with pulse-jet bag dust collectors or filter core dust collectors, offering high dust removal efficiency and low maintenance costs.

5. Mixing System

• Compared to traditional lined agitator mixers, Betong Heavy Industry's mixing drum employs a double horizontal shaft continuous agitator without lining technology. It boasts strong adaptability, compact size, high yield, and efficient and stable operation.

• Insertable agitator arm, easy to maintain.

• Dual motor drive, low noise, low failure rate, and smooth operation.

• Can mix various specifications and types of materials, form a stable soil with multiple blending ratios.

• The mixing pot body is焊接 using fully automatic robotic technology, ensuring quality and long service life.

6. Control System

• The electrical control system supports automatic, semi-automatic, and manual control. It features recipe input and storage, automatic correction of splatter errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarm, and real-time printing functions.

7. Installation After-Sales Support (No need to point to a location in the image; just allocate a space in the text area to write it)

• Modular design for easy installation and maintenance, and quick relocation and transportation.

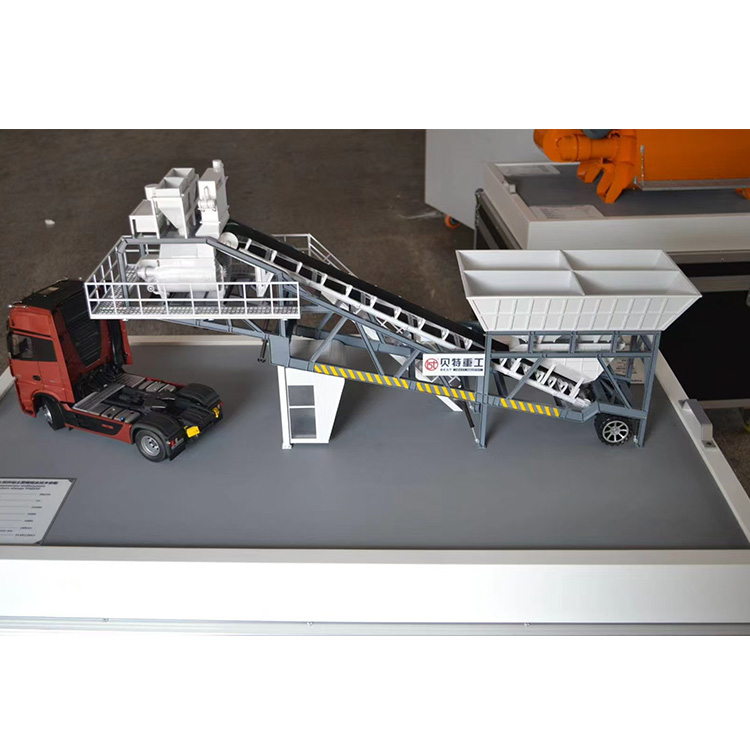

WCZ Series Stabilized Soil Mixing Plant Technical Parameters (Four Hopper, Single Storage Silo):

Mobile Site Technical Specifications:
