Aggregate batching measurement

• The aggregate hopper is equipped with a grating screen to filter out oversized materials.

• The outer side of the hopper is equipped with a vibration motor, which assists in discharging the material through the vibrating hopper walls, ensuring smooth and efficient operation.

• The belt scale uses variable frequency speed control to ensure aggregate flow. The belt tension and neutralization can be adjusted for smooth operation.

• Skirted belt design, minimizes aggregate spillage.Aggregate measurement accuracy: ±2%.

• For materials with high adhesion and tendency to bridge, an optional breaker device is available for efficient stripping.

2. Aggregate Conveying

• Electric roller, high load-bearing capacity.Smooth operation, low noise, and long service life。

• Channel frame, robust and sturdy, with a long service life.

• Prevent misalignment with dual protection: Tail spiral tensioning device, adjustable belt tension at any time; central alignment idler assembly,Self-aligning.

• Scrapers are installed at both ends to effectively clean material from the belt surface.

3. Measurement System

• Cement Dosage

Variable-frequency screw metering, pollution-free, waste-free, efficientEco-friendly, cement measurement accuracy: ±1%.

• Water meter

Manual variable frequency speed regulation for accurate measurement, easy and quick operation.

Optional with turbine flowmeter measurement, electricRegulation, with smaller error: ±1%.

4. Dust Removal System

• Cement silos are available with pulse bag dust collectors or filter core dust collectors, offering high dust removal efficiency and low maintenance costs in the long run.

5. Mixing System

• Compared to traditional lined paddle mixers, Betong Heavy Industry's mixing tank uses a twin horizontal shaft continuous mixer with no lining technology, offering superior adaptability, compact size, high output, and efficient and stable operation.

• Insertable mixing arm, easy maintenance.

• Dual motor drive, low noise, low failure rate, and smooth operation.

• Mixes a variety of materials in different specifications and types, capable of preparing stabilized soil with various mixing ratios.

• The mixing pot body is welded using fully automatic robotic technology, ensuring high quality and long service life.

6. Control System

• The electric control system allows for automatic, semi-automatic, and manual control. It features recipe input and storage, automatic correction of splatter errors, parameter adjustment, weighing calibration, automatic fault diagnosis, automatic alarms, and real-time printing.

7. Installation After-Sales Service (No need to point to the location in the image, just arrange a spot in the text area to write it)

• Modular design for easy installation, maintenance, and quick relocation or transportation.

WCZ Series Stabilized Soil Mixing Station Technical Parameters (Four Hopper, Single Bin):

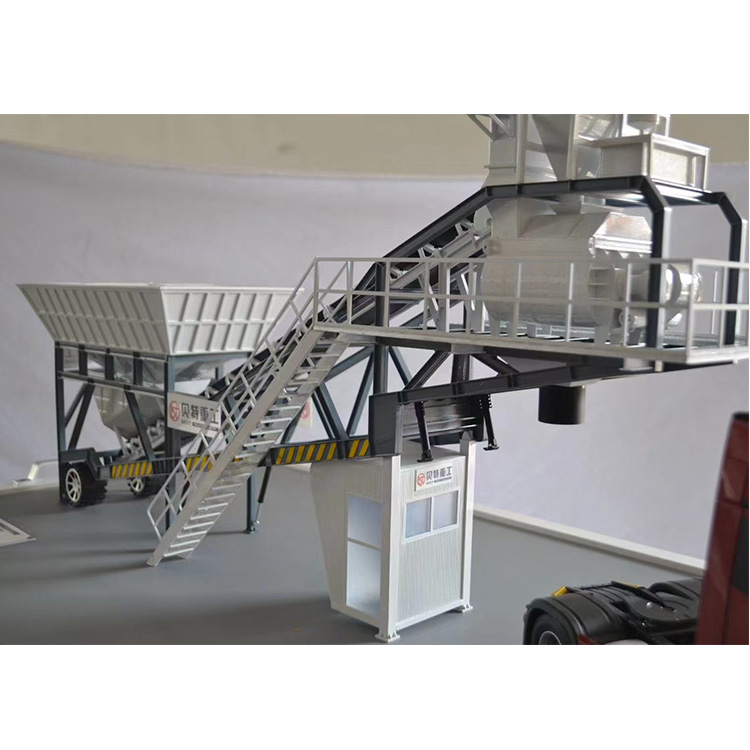

Mobile Site Technical Specifications:
