Manufacturing Description:

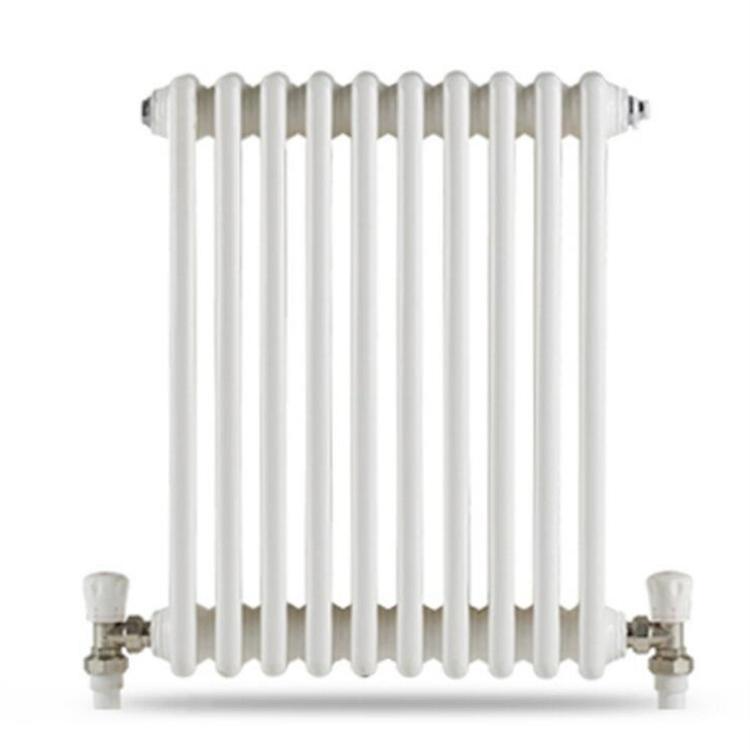

The GZ3-25 series steel radiators are made of high-quality material.Low-carbon steelComprised of three 25mm diameter tubes and two end caps, fully automatic welded. After welding assembly, the internal cavity undergoes degreasing, rust removal, phosphatizing, application of organic corrosion-resistant material, and drying. The exterior surface is cleaned, shot-blasted, and then receives two layers of electrostatic powder coating for paint. The internal corrosion-resistant material is the organic material, Goldfong AT2398, with strong acid and alkali resistance. Utilizes a solid end design for smooth water flow, overcoming the drawbacks of lap-welded radiators with small through-holes. Prior to shipment, the radiator passes two pressure tests at 1.6Mpa to ensure quality before leaving the factory.
The steel series radiators continue the German product style, exuding stability, beauty, and elegance.
Product Specifications:

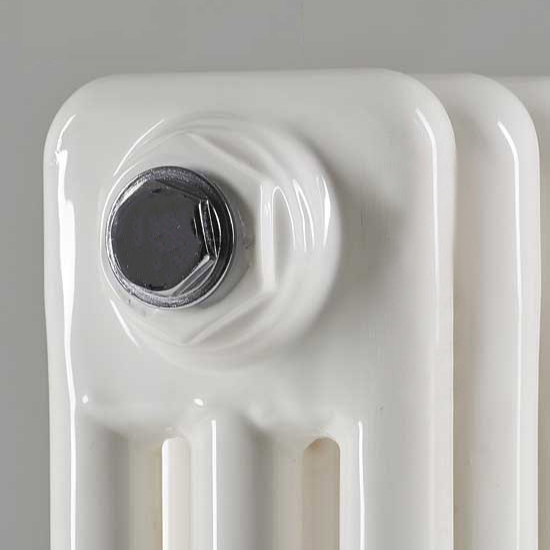

• End Cap: Commonly known as the "cap," it is made from SPCC cold-rolled steel plate, with a thickness ranging from 1.8mm to 2.5mm.
• Overall end piece, with smooth water flow and high flow rate, overcomes the缺点 of small through holes in brazed joints on finned radiators.
•直立管道: Made from Q195 low-carbon density steel, bent and welded, thickness ranging from 1.3mm to 2.5mm, cut to length based on the radiator's height.
• German mature automatic welding technology between the head and the upright pipe, and ring automatic welding is used to join columns of varying lengths.
• The interior features a 2-layer organic interior anticorrosion coating, specifically designed for the AT2398 gold fluorine heat sink, and is vacuum high-pressure灌装而成.
The outer surface is coated with two layers of electrostatic powder, adhering to international standards, and cured at a high temperature of 290°C.
Surface Color: Pure White 6135 (Powder Coated)
• Factory Test Pressure: 1.6 MP
• Allowable Working Pressure: 1.2 MP
• Operating Temperature Allowance: 120°C
• Standard Interface: 4xDN15 (4"), 4xDN20 (6"), 4xDN25 (1")
• Installation Accessories: 4 hooks, 1Pressure relief valve1 Blind Cap
• Interface center distance: Radiator height H – 70 mm
• Radiator Height: 300 - 3000 mm
• Radiator Length: 300-2400mm
• Radiator length calculation = 45mm x number of sheets + 20mm
• Sheet thickness: 100mm
• Pitch: 10mm
• Strip Width: 25mm
• Wide Application Range: Compliant with National Standard GBJ19-87 / 2001 for Closed Hot Water Heating Systems
• Heat dissipation conversion index n = 1.3
(Heat Dissipation of 300mm: 60.32W/column) Approx. 0.6㎡/column
(Heat dissipation: 93.65 W/column for 600mm) approximately 0.9㎡/column
(1800mm heat dissipation: 237.94 w/column) approximately 2.3 m²/column
Product Features:
Rich in colors, customizable to meet customer's specific needs.
② Versatile design, can be shaped into corner or curved to fit room structure.
③ Electrostatic powder coating surface, smooth and delicate, easy to clean.
④ Excellent heat dissipation performance and high thermal radiation ratio, superior in performance, over 30% more efficient than ordinary heaters.
⑤ Large heat capacity, with a long duration of effective heating after shutdown.
⑥ Lightweight and corrosion-resistant;
⑦ High pressure capacity up to 1.2 MP, suitable for various high-rise buildings.
⑧ Long lifespan, properly used, can exceed 25 years.
E9: Easy installation, compatible with various existing heating systems.
