Features and Applications:

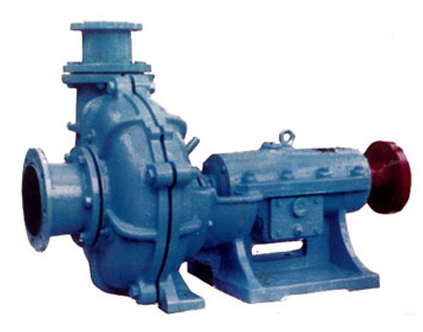

PNJ and PNJF series pumps are single-stage, single-suction, centrifugal rubber-lined pumps designed for conveying slurry containing non-sharp-edged solid particles. The maximum slurry concentration that can be transported is not more than 65% (by weight), and the temperature should not exceed 60°C. Both pump types have the same structural design but differ in materials; the PNJF type is specifically designed for corrosive slurry transportation. The shafts of PNJ and PNJF pumps are made of high-quality carbon steel and nickel-chromium steel, respectively, with protective sleeves made of wear-resistant rubber, wear-resistant and acid-resistant rubber, and steel plates. The impellers are made of cast steel frames (25PN and 25PNJF types have cast iron frames) lined with wear-resistant rubber, wear-resistant and acid-resistant rubber, and rubber. PNJ and PNJF pumps feature two different sealing structures: packed and auxiliary impeller (25PNJ and 25PNJF pumps have only auxiliary impeller sealing structures). The sealing structures are generally supplied with packed seal. If an auxiliary impeller seal is chosen, it must be specified during ordering. When using an auxiliary impeller seal, the inlet filling height should not exceed 5 meters of water column (for 25PNJ and 25PNJF pumps, not more than 1.5 meters of water column). The discharge outlets of 2PNJB and 2PNJFB pumps can rotate in different directions at 45° intervals. The discharge outlets of 4PNJFB pumps can rotate in different directions within a 270° range at 45° intervals. The discharge outlets of 6PNJB and 6PNJFB pumps can rotate in different directions within a 270° range at 30° intervals. The discharge outlets of 25PNJ and 25PNJF pumps can rotate in different directions at 90° intervals; unless otherwise specified, the supply is always vertical to the outlet. The pump rotates counterclockwise when viewed from the drive direction.

Model Meanings 2PNJB, 2PNJFB

25PNJ, 258PNJF2 - Discharge outlet diameter 2 inches 25 - Nominal discharge outlet diameter 25mm P - Impurity pump N - Sludge N - Sludge J - Rubber J - Rubber F - Corrosion-resistant F - Corrosion-resistant B - Second improvement
