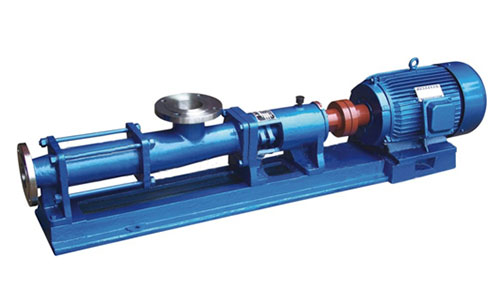

Product Overview: G Type Single Screw Pump

The G-type single screw pump is widely used in developed countries, and it is commonly referred to as "MONOPUMPS" or "Mono Pump" overseas, while in Germany, it is known as "eccentric rotor pump." Due to its excellent performance, its application scope in China has been rapidly expanding in recent years.

Its primary features include strong adaptability to media, stable flow, minimal pressure pulsation, and high self-priming capability – qualities that no other type of pump can match.

Our company has conducted analysis and research on G-type single screw pumps produced in foreign countries (such as Germany, the UK, France, Japan, etc.) and domestically produced products within the same industry, integrating the strengths of both. We have continuously innovated and reformed our products. Currently, our products have formed a comprehensive system, with pressure ranging from 0.6 to 1.2 MPa, and special requirements can reach up to 3 MPa, meeting diverse needs of a wide range of customers for single screw pumps.

Our company's screw pump is of reliable quality, offers a three-year warranty, is competitively priced, and ensures the normal supply of spare parts.

We are dedicated to serving a wide range of customers and welcome special design and manufacturing requests for single screw pumps.

II. Product Features of G Type Single Screw Pumps:

The G-type single screw pump is a new type of pump that operates according to the reciprocating meshing volumetric principle. Its main working components are the eccentric screw (rotor) and the fixed sleeve (stator). Due to the special geometry of these components, they separately form individual sealed cavities. The medium flows uniformly in an axial direction. The internal flow velocity is low, and the volume remains constant. Pressure is stable, thus preventing the formation of vortices and disturbances. The G-type single screw pump is widely used in various industries for transporting various media, operates continuously at a constant pressure with no pulsations, and ensures the medium is transported without damage. Flow rate can be adjusted by changing the speed to achieve measurement goals. It is suitable for transporting media with the following characteristics: high solid content (maximum particle size up to 150mm) or no solid content, media with various viscosities (1mPas to 3 million mPas), thixotropic and easily expandable media, shear-sensitive media, abrasive media, media with or without self-lubrication, corrosive media (pH=0-14), adhesive media, toxic media, and high flow and pressure rates. Flow range is from a few milliliters per hour to 500m³ per hour (2200 gpm), and pressure range can reach up to 48bar, with special designs capable of 72bar. The same drive component can be matched with four different designs of rotors/stators, providing you with the best operational solution.

G-type single screw pumps are designed for various application fields, utilizing different metal materials such as cast iron, nickel-chromium steel, acid-resistant materials, Hastelloy, and titanium alloys. Elastic materials available include wear-resistant, oil-resistant, acid-resistant, and alkali-resistant rubbers like natural rubber, nitrile rubber, ethylene propylene rubber, and fluororubber. For highly erosive media, ceramic or plastic materials can be chosen. In cases where the medium cannot be used with elastic materials due to high temperatures or certain chemical compositions, hard material stators or rigid stators can be selected. Various shaft seal types: mechanical seals are available according to customer requirements, ranging from single face mechanical seals (with or without emergency cooling) to double face mechanical seals (back-to-back and series type), and box seals; fillers, water seals, and special seals can also be chosen. Leak-proof magnetic drive is available for toxic media.

Performance Features:

· Maximum suction height up to 6 meters of water column

· Bi-directional rotation, bidirectional conveying (requires a reverse stator)

Flexible installation methods.

·Smooth, stable operation; low noise; pulse-free; shear-free

·Temperature range of conveying medium: -20℃ to +150℃

·The G-type single screw pump has fewer parts, a compact structure, small size, easy maintenance, and the rotor and stator are the easily damaged parts of this pump, with a simple structure for easy assembly and disassembly. The transmission can be done directly through a coupling, or by using a variable speed motor, V-belt, transmission box, and other devices for speed variation. Shanghai Aofeng Pump Valve Manufacturing Co., Ltd. is a professional manufacturer specializing in the production, design, and manufacturing of single screw pumps. Different screw pumps have different specific application scenarios.
