Shanghai Bozhen InstrumentsIntegrated muffle furnace advantages：
Series integrated muffle furnaces feature an overall design and user-friendly menu layout, utilizing industrial PID self-tuning control technology.High-brightness LCDWide-screen digital display with clear and intuitive readings.Features an on-time start or starts timing after reaching the set temperature.Microcomputer intelligent control, resolves issues such as temperature overshoot, ensuring precise temperature control. After setting the temperature, the gauge automatically controls the heating output, providing accurate and stable temperature regulation. FaultSound and light alarm, and automatically cut off the heating output.

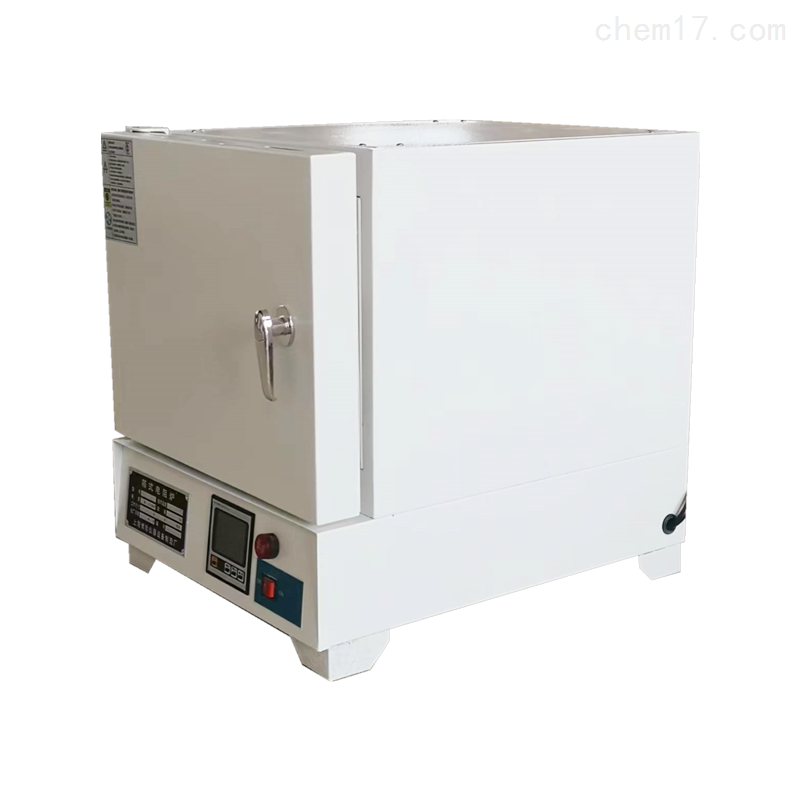

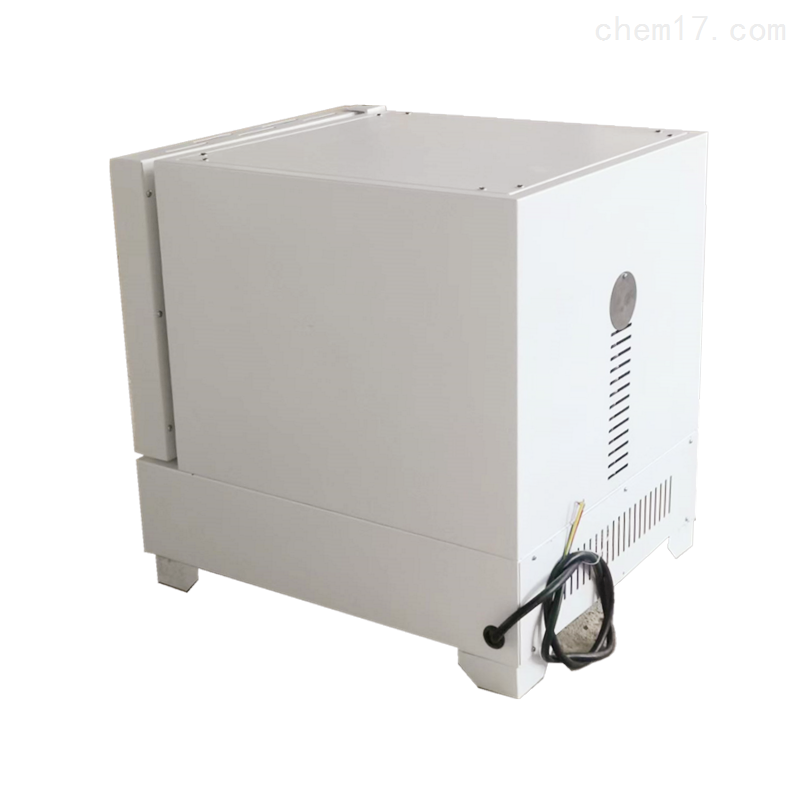

Shanghai High-Temperature Box-Type Resistance Furnace ManufacturerProduct Features:
Series monoblock muffle furnace utilizes *Technology: The furnace shell is made from high-quality steel plate, folded and welded to form a one-piece structure with the control box. The appearance is aesthetically pleasing and avoids the麻烦 of customer installation. The internal furnace lining is a rectangular, integral lining made of high-alumina and silicon carbide refractory materials. The heating element, wound from iron-nickel-chromium aluminum alloy wire, is coiled into a spiral shape and inserted into the wire grooves on the top, bottom, left, and right of the internal lining for even heating. The furnace interior is a sealed structure, with the space between the internal furnace and the shell filled with insulating layers of refractory fiber aluminum silicate cotton and diatomaceous earth products for heat preservation.
Model:
BZ-2.5-10
One, Product Technical Parameters
Temperature Range:100 ~ 1000°C; Timer Range:0-9999Minute
Bo (保持原文，无翻译内容) Active Degree: ±2℃；
Display Accuracy:1℃；
Furnace chamber size:200*120*80 MM
Dimensions:580*420*660MM
Rising Temperature Rate: Average greater than10℃/min
Overall Power:2.5KW；
Electricity Source:220V, 50Hz ；
Section II: Furnace Structure and Materials
Housing Material: The outer housing is made of high-quality cold-rolled steel plate, treated with *acid skin film salt, and then high-temperature electrostatic powder coating, with a color of computer gray.
Furnace Body Material: High-alumina inner lining, excellent wear resistance; the furnace heats uniformly from all four sides (up, down, left, right) at high temperatures.
Insulation Methods: Insulating bricks and insulating cotton.
Thermometer port: Thermocouples enter from the rear above the furnace body.
Terminal:： The heating furnace wire terminal is located at the lower back position of the furnace body.
Controller: Located below the furnace body, with an integrated control system and compensation wire connected to the furnace body.
Heating Element: High-temperature Resistance Wire
Overall Weight: Approximately60KG
Standard Packaging: Wooden Case
Section 3: Temperature Control System
Temperature Measurement:KGrade Nickel Chrome--Nickel-Silicon Thermocouple
Control System:PIDAdjustment, Display Accuracy1℃
Complete Electrical Sets: Featuring brand contactors, cooling fans, solid-state relays.
Please provide the Chinese content that you would like translated into American English. Between Settable working hours; automatic shutdown upon reaching the set constant temperature.
Over-temperature Protection: Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature shutdown.
Operating Mode: Full range adjustable constant temperature, stable operation.
Section 4: After-Sales ServiceResponsible for providing remote technical guidance to users
Promptly supply spare parts and accessories for the equipment
Provide technical consultation and support throughout the equipment usage process
Received customer's fault notification8Respond within 1 working day
