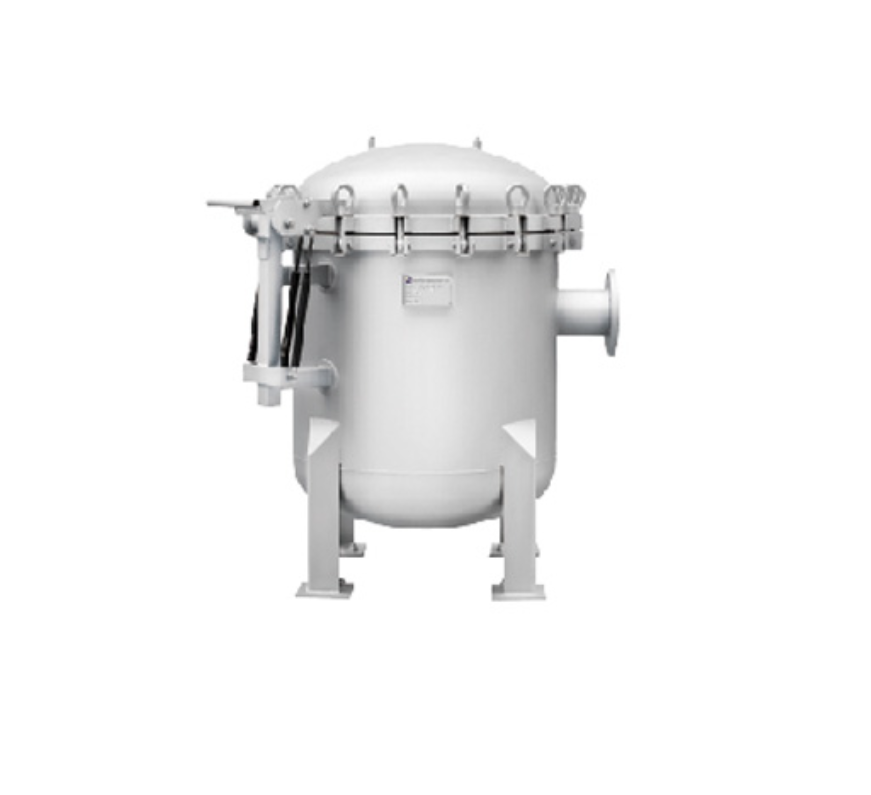

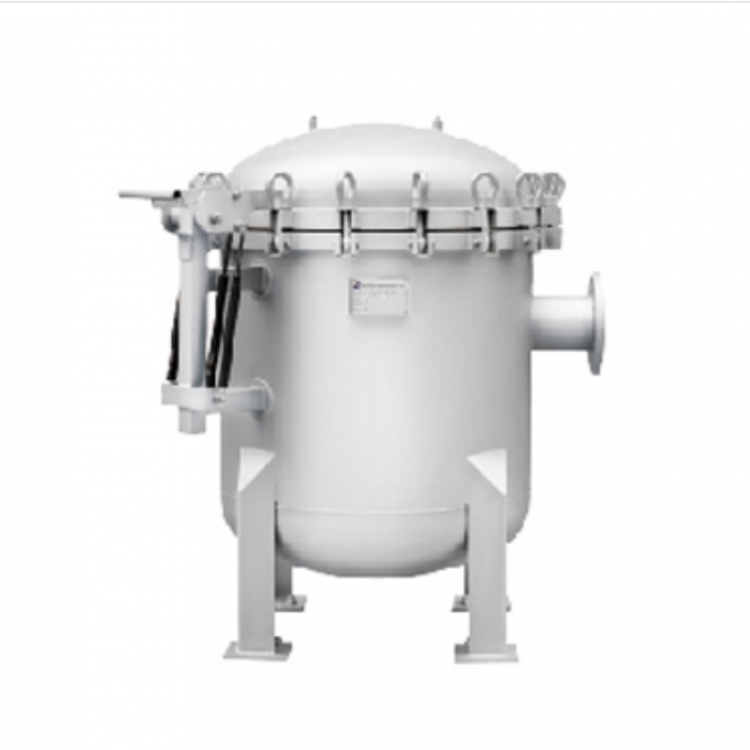

Spring or pneumatic rod-assisted lifting design for the cylinder cover; simply touch the cylinder cover to open the filter.
Spring or pneumatic rod-assisted lifting of the cylinder cover; simply touch the cover to open the filter.
Precision lid opening and closing design
Bottom出口tangent design, reducing the height of the filter, for more convenient bag change operation.
The number of bags for the multi-bag filter can range from 2 to 24 bags.
Design Pressure: 6bar - 10bar
Filter materials include carbon steel, 304 stainless steel, 316 stainless steel, and other specific materials available for selection.
| Model | MBV202 | MBV302 | MBV402 | MBV502 | MBV602 | MBV802 | MBV1002 |
| Compatible Filter Bag | 02# | 02# | 02# | 02# | 02# | 02# | 02# |
| Tubular diameter | Φ400mm | Φ450mm | Φ550mm | Φ600mm | Φ600mm | Φ750mm | Φ800mm |
| Wire Basket Filtering Area | 1m² | 1.5m² | 2m² | 2.5m² | 3m² | 4m² | 5m² |
| Highest Flow Rate | 80m³/h | 120m³/h | 160m³/h | 200m³/h | 240m³/h | 320m³/h | 400m³/h |
| Design Temperature | 120℃ | 120℃ | 120℃ | 120℃ | 120℃ | 120℃ | 120℃ |
| Design Pressure | 10bar | 10bar | 10bar | 10bar | 10bar | 10bar | 10bar |
| Import/Export Dimensions | 4＂FLG | 4＂FLG | 6＂FLG | 6＂FLG | 6＂FLG | 8＂FLG | 8＂FLG |
| Exhaust Port/Pressure Gauge Port | 1/2＂NPT | 1/2＂NPT |
| 1/2＂NPT |
| 1/2＂NPT |
|
| Outfall pipe | 1 ＂NPT | 1 ＂NPT | 1 ＂NPT | 1 ＂NPT | 1 ＂NPT | 1 ＂NPT | 1 ＂NPT |
| Tubular material | SS304/SS316 |
| Surface Treatment | Internal mechanical polishing, external sandblasting |
