| Model | TBV01 | TBV02 | TBV03 | TBV04 |
| Compatible Filter Bag | 01# | 02# | 03# | 04# |
| Tubular diameter | Φ200mm | Φ200mm | Φ125mm | Φ125mm |
| Net basket filtration area | 0.25m² | 0.5m² | 0.05m² | 0.1m² |
| Maximum Flow | 20m³/h | 40m³/h | 5m³/h | 10m³/h |
| Design Temperature | 120℃ | 120℃ | 120℃ | 120℃ |
| Design Pressure | 7-21bar | 7-21bar | 7-21bar | 7-21bar |
| Import/Export Dimensions | 3＂FLG(max) | 3＂FLG(max) | 1.5＂FLG(max) | 1.5＂FLG(max) |
| Exhaust Port/Pressure Gauge Port | 1/2＂ | 1/2＂ | 1/2＂ | 1/2＂ |
| Outfall Port | 1＂ | 1＂ | 3/4＂ | 3/4＂ |
| Tubular material | SS304/SS316 | |||
| Surface Treatment | Internal mechanical polishing, external sandblasting | |||
Suzhou岱创Filter Systems Co., Ltd. specializes in the research, development, and production of TBV series top-loading filters and rotary pre-filter systems. Offering over 50 years of comprehensive service experience and information in industrial filtration technology for the European market, supply hotline: 0512-50110438.
Order Hotline:0512-50110438

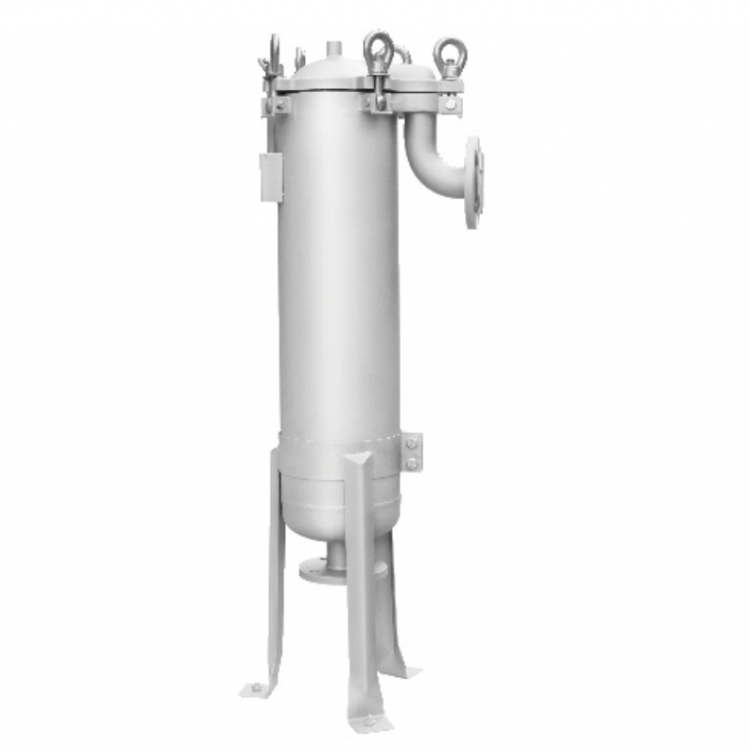

The bent top design facilitates easy cleaning and minimizes the accumulation of impurities.
A one-piece stainless steel precision casting for the top cover
Unique sealing design, preventing side leakage
The filter sleeve features only two welds, making it more sturdy and aesthetically pleasing.
Leg height is adjustable as desired.
Filter material: Carbon steel
304 stainless steel, 316 stainless steel, and other specific materials are available for selection.
Design Pressure: 6bar - 21bar
Seal rings are available for compatibility with various chemicals and temperature ranges.
