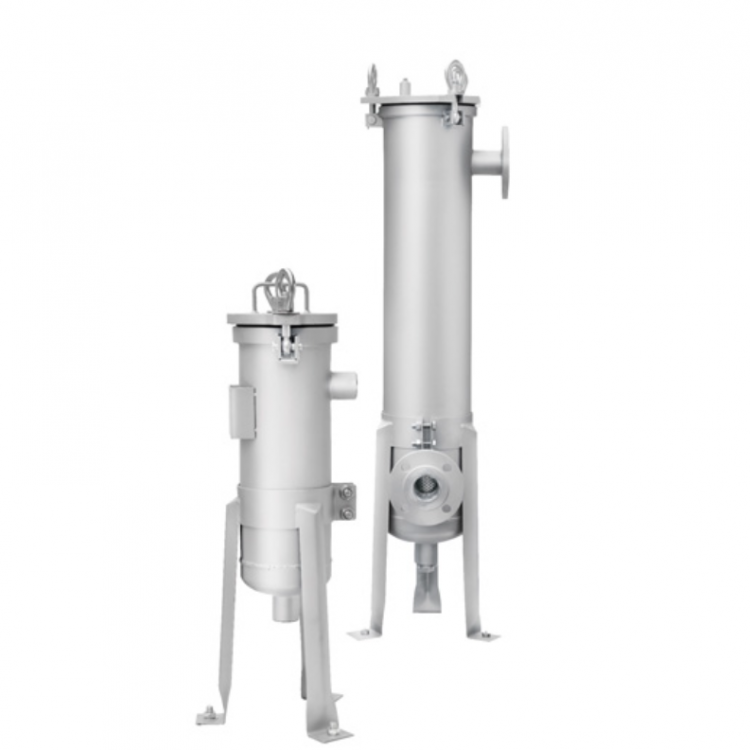

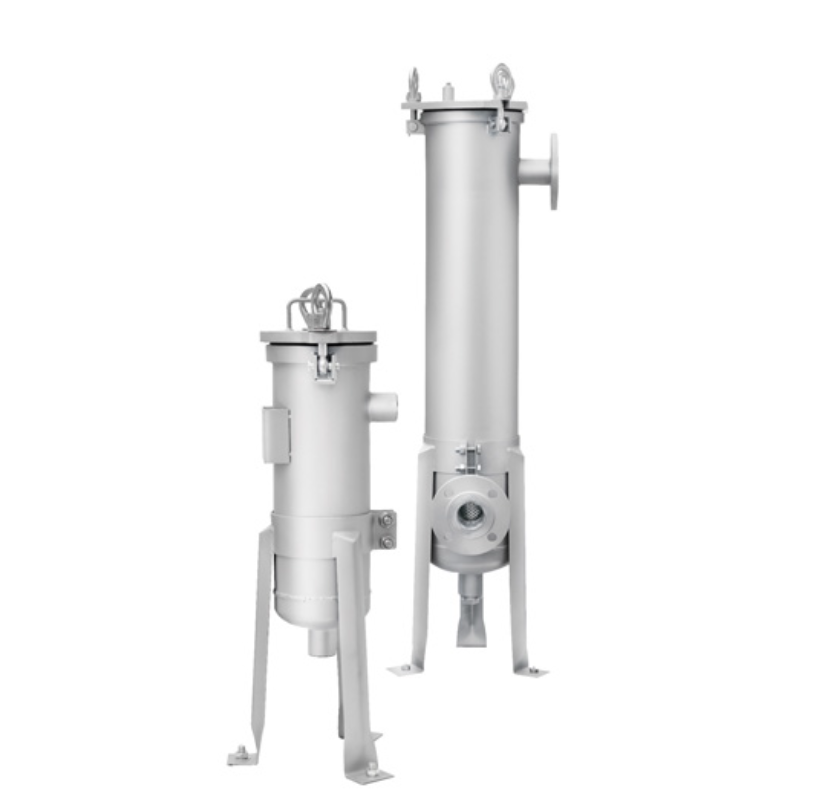

The Suzhou Dacreate SBV series side-entry filter offers an economical and practical choice. With over 50 years of European market industrial filtration technology and comprehensive service experience, Suzhou Dacreate Filter Equipment Solution Hotline: 0512-50110438.
Order Hotline:0512-50110438
Economic filter, suitable for most application requirements.
Built-in clamp ring for secure sealing of the filter bag
Unique sealing design to prevent leakage
Leg height is adjustable to your preference.
A variety of standard import/export configurations are available for easy installation into pipeline systems.
Design Pressure: 6bar - 21bar
Filter materials include carbon steel, 304 stainless steel, 316 stainless steel, and other specific materials available for selection.
| Model | SBV0 | SBV02 | SBV03 | SBV04 |
| Compatible Filter Bag | 01# | 02# | 03# | 04# |
| Tubing diameter | Φ200mm | Φ200mm | Φ125mm | Φ125mm |
| Mesh basket filter area | 0.25m² | 0.5m² | 0.05m² | 0.1m² |
| Maximum Flow | 20m³/h | ?40m³/h | ?5m³/h | ?10m³/h |
| Design Temperature | 120℃ | 120℃ | 120℃ | 120℃ |
| Design Pressure | 7-21bar | 7-21bar | 7-21bar | 7-21bar |
| Import/Export Dimensions | 3＂FLG(max) | 3＂FLG | ?1.5＂FLG | ?1.5＂FLG |
| Exhaust Port/Pressure Gauge Port | 1/2＂ | 1/2＂ | 1/2＂ | 1/2＂ |
| Wastewater outlet | 1＂ | 1＂ | 3/4＂ | 3/4＂ |
| Tubular material | SS304/SS316 |
| Surface Treatment | Internal mechanical polishing, external sandblasting |
