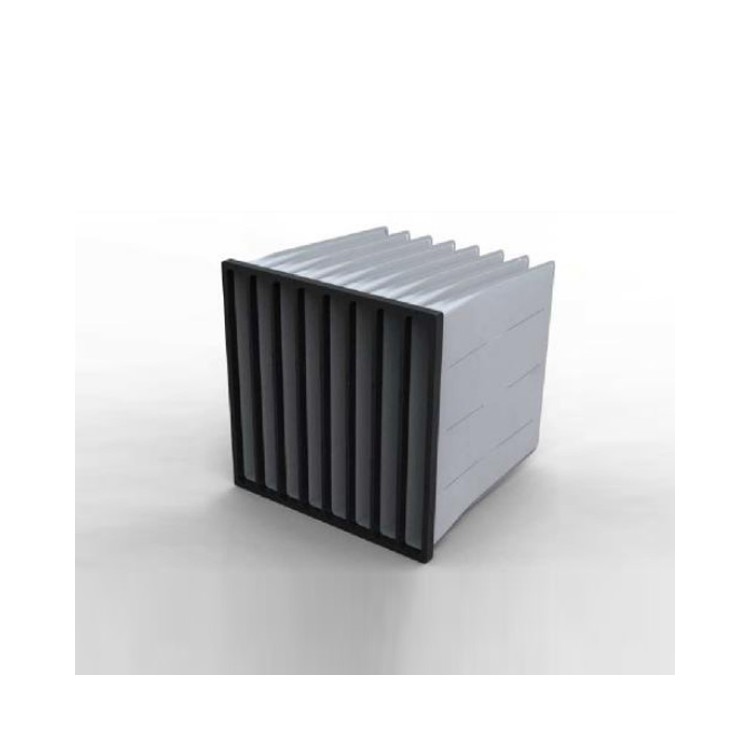

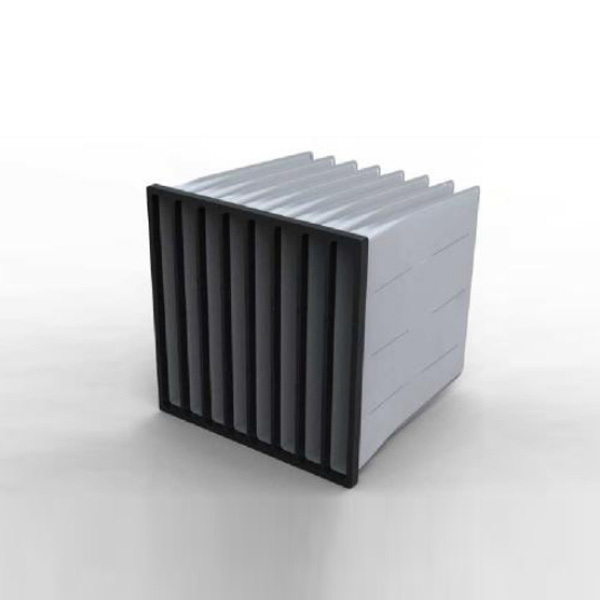

PF Bag Filters Application: Comprehensive air filtration for ventilation and air conditioning equipment in industrial plants, production workshops, and laboratories; initial efficiency filtration for the gas supply unit in automotive painting rooms.
Ordering Hotline:0512-50110438
Advantages Excellent dust retention capacity · Density Gradual · Self-supporting welded pocket, unloaded · Space Design with Aerodynamic Integration ("Diamond Space") · 100% Incinerable · Resistance > 3000 Pa Reduce energy consumption and maintenance · Suitable for high air volume Basic Features · Filter Precision EN779: M6-F7 · Material: Synthetic · Frame: Rigid Plastic (SECURE) ·Recommended Final Pressure Drop: 250 Pa · Final Pressure Drop: 450 Pa · Maximum Continuous Working Temperature: 80°C ·Humidity: 100% RH |
|
Technical Data
Barcode | Type | Filter Precision EN779 | Wide (mm) A | High (mm) B | Thick (mm) C | Number of bags | Medium Area (m2) | Airflow (m3/h) | Pressure Reduction (Pa) | MTE (%) | Energy consumption (Kwh/year) | Level |
1702124 | PFL50-3/600/3 | M5 | 287 | 592 | 600 | 3 | 2,2 | 2000 | 45 | - | - | - |
1702125 | PFL50-5/600/5 | M5 | 490 | 592 | 600 | 5 | 3,66 | 3500 | 45 | - | - | - |
1702126 | PFL50-6/600/6 | M5 | 592 | 592 | 600 | 6 | 4,39 | 4250 | 45 | - | 640 | A |
