Product Details Introduction

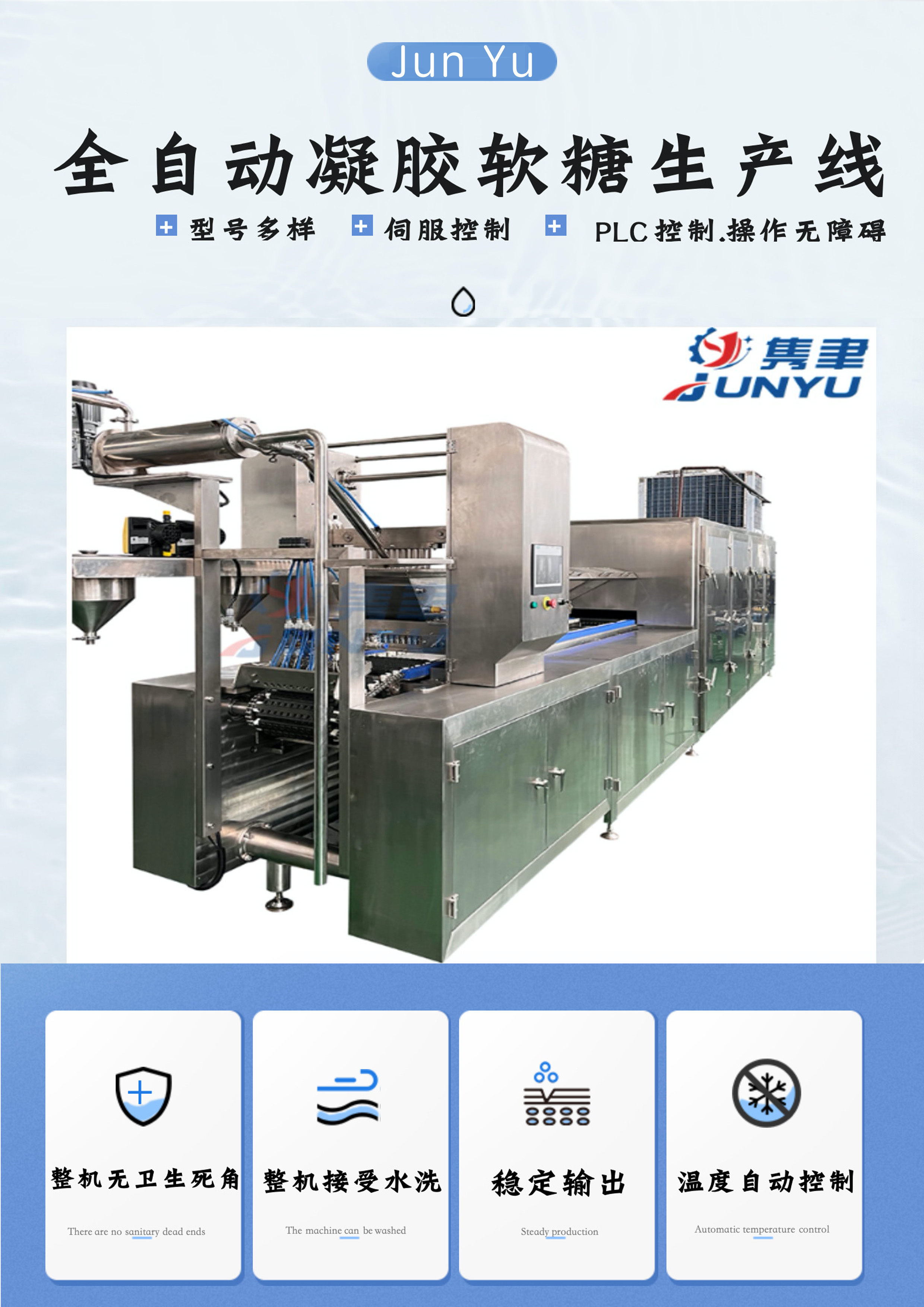

Gelatin Soft Candy Production Line
Equipment Introduction:
This production line was developed by our R&D department in response to the market's demand for various shapes and colors of gel soft candies. It is an ideal equipment for continuous production of high-grade colloidal candies (QQ candies). It can produce high-quality single-color and dual-color QQ candies; by changing molds or injection nozzles, it can also produce high-quality gel soft candies in various shapes and colors. It completes the precise addition and mixing of flavoring, colorant, and acid solutions online. The highly automated production not only ensures consistent product quality but also reduces labor and space requirements, thereby lowering production costs.
Process Flow:
Sugar SolutionFilter→Cane Refining→Cooling→Additives→Casting molding→Cooling→脱模: Demolding→Drying room→PackagingPacking
Technical Specifications:
Model | JYJ-150 | JYJ -300 | JYJ -450 | JYJ -600 |
Standard Output (kg/h) | 150 | 300 | 450 | 600 |
Maximum Sugar Content (g) | 2~8 | 2~8 | 2~8 | 2~8 |
Pouring Rate (n/min) | 55~65 | 55~65 | 55~65 | 55~65 |
Work Environment Requirements | Temperature: 20-25°C, Humidity: 55% | |||
Overall Power | 32KW/380V | 39KW/380V | 48KW/380V | 75KW/380V |
Overall Line Length (M) | 17 | 17 | 18 | 18 |
Overall Weight (kg) | 3000 | 3500 | 4000 | 4500 |
