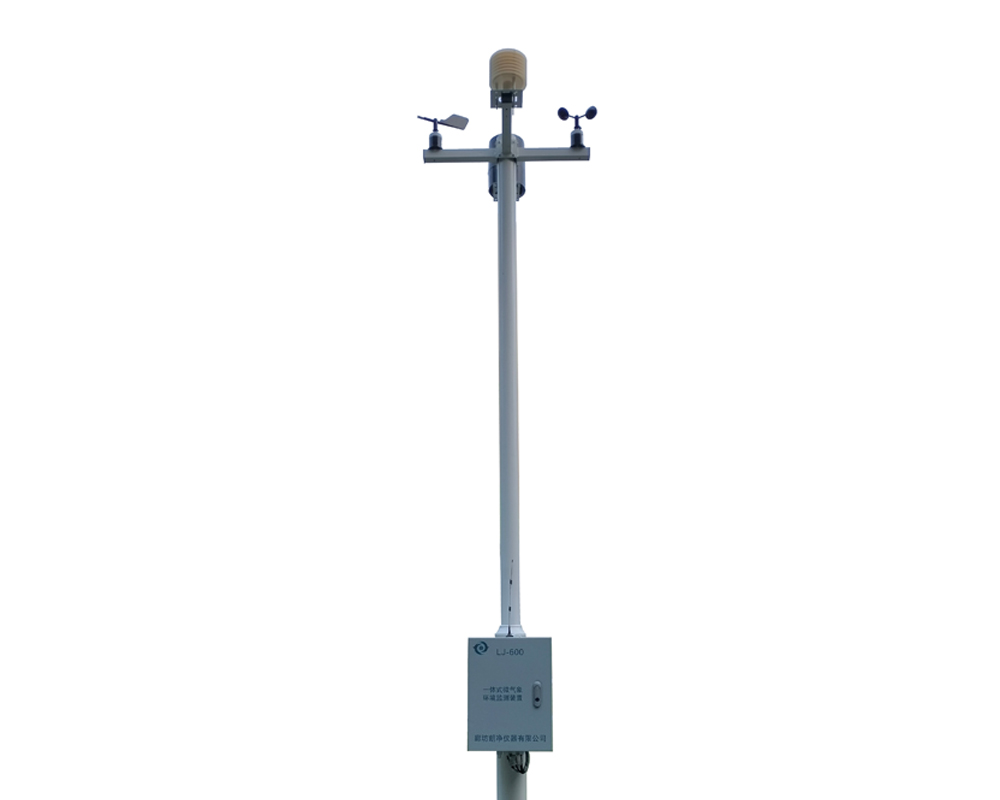

LJ-600All-intelligentOur company's independently developed Automatic Comprehensive Meteorological Station System is a meteorological monitoring station designed and produced in accordance with national meteorological industry standards. It integrates meteorological data collection, storage, transmission, and management into one, consisting of sensors, meteorological data collectors, and computer meteorological software. It can simultaneously monitor wind speed, wind direction, air temperature, air humidity, and air pressure.PM2.5/10Value, rainfall, ultraviolet radiation, solar radiation, solar radiation intensity on soil, soil moisture, soil pHPHValue, Soil Nitrogen, Phosphorus, Potassium, Carbon Dioxide, Carbon MonoxideCOSulfur DioxideSO2Nitrogen DioxideNO2Evaporation rate monitoring (configurable to user requirements) and weather data collection instruments, etc.30Multiple types of monitoring factors; meteorological data collection instrument featuring data acquisition, real-time clock, scheduled storage of meteorological data, parameter settings, user-friendly interface, and standard communication functions.
Technical Specifications:
Name | Measurement Range | Resolution | Accuracy |
Ambient Temperature | -40～+70℃ | 0.1℃ | ≤±0.2℃ |
Relative Humidity | 0～100 %RH | 0.1% | ±3%RH |
Light Intensity | 0-200000Lux | 1Lux | ±2% |
Wind direction | 0~360° (16 directions) | 1° | ±3° |
Wind Speed | 0～75m/s | 0.1m/s | ±(0.3+0.03V)m/s |
Rainfall | ≦4mm/min | 0.2mm | ±0.4mm |
Atmospheric pressure | 10～1200hPa | 0.1hPa | ±0.3hPa |
Soil Temperature | -50～+80℃ | 0.1℃ | ≤±0.2℃ |
Soil Moisture | 0～100 % | 0.1% | ±2% |
Soil pH value | 0~14 | 0.01pH | ±0.1pH |
Soil Nitrogen, Phosphorus, and Potassium | 0～2000mg/kg | 1mg/kg | ±3% |
Soil Salinity/Electrical Conductivity Detector | 0 – 10000 us/cm | 1 us/cm | ±3% |
Monitor Detector Parameters Table | |||
Serial Number | Sensor Name | Model | Parameters |
1 | Air Temperature | LJYQ-WD02 | Measurement Range: -40～70℃; Resolution: 0.1℃; Accuracy: ±0.2℃ |
2 | Air Humidity | LJYQ-SD02 | Measurement Range: 0~100%RH; Resolution: 0.1%RH; Accuracy: ±3%RH |
3 | Weather and Wind Speed | LJYQ-FS-12V-W2 | Measurement Range: 0~60 m/s; Resolution: 0.1 m/s; Accuracy: ±0.3 m/s. |
4 | Weather and wind direction | LJYQ-FX-12V-W2 | Measurement Range: 0~359°; Resolution: 0.1°; Accuracy: ±3° |
5 | Atmospheric pressure | LJYQ-68 | Measurement Range: -40～70℃; Resolution: 0.1℃; Accuracy: ±0.2℃; |
6 | Pm2.5 | PM02 | Measurement Range: 0 ~ 1000 ug/m³; Resolution: 0.1hP; Accuracy: ±0.5hP |
7 | Soil temperature and humidity | LJYQ-WS01 | TemperatureScope:-40-80° C; Accuracy:±0.5Temperature: ; Moisture:0-100 %RH, Precision0.53%Within scope±3%，53-100 %Within scope±5%;)； |
8 | Automatic Rainfall Measurement | LJYQ-YLJ01 | Material ABS Engineering plastics, measurement range：0.01mm~3mm/min；Resolution0.2mm；Accuracy 0.2mm± measurement error3%； |
9 | Ultraviolet (UV) Sensor | LJYQ-UV01 | Measuring Range:0-150W/m2；Ultraviolet (UV) stability: ≤5%/y； |
10 | Soil pH level | LJYQ-EC01 | Measurement Range:0~14Resolution:0.01pHAccuracy:±0.1pH； |
11 | Noise Sensor | LJYQ-ZS01 | Measurement Range:30db-130db；Resolution:0.1dbMeasurement Error:3%F.S； |
12 | Rain gauge | LJYQ-YLT01 | Measurement Range: 0.12mm to 30mm/min; Resolution: 0.12mm; Accuracy: ±3% |
13 | FRP louvre box | LJYQ-BYX01 | 1Complies with the technical requirements set forth in the "Guidelines for Meteorological Instruments and Observation Methods" issued by the World Meteorological Organization; conforms to the technical requirements specified in the professional standard "ZBA4700-85" for weather shelters issued by the China Meteorological Administration. 2、Louver Box: Dimensions: 720 (Length) × 780 (Width) × 880 (Height) (mm); Weight: 40kg; 3. Bracket: Height: 1230mm; Weight: 14kg; 4. Total Height: 2095mm |
14 | LEDDisplay panel assembly + ground cage + frame | P10 | Pixel composition:Single Green; Module Size: Approximately 320mm (W) x 160mm (H);2Screen Size:StandardLong1.32m× High0.682m；（3Screen exterior structure:External is all metalEnclosure styleProtection（4Pixel Density: 10,000 points/㎡; Screen Brightness: ≥3,000 cd/㎡; Gray Scale: 4,096 levels each.5Field of View: 120° horizontal, 120° vertical; Display Lifespan: ≥210,000 hours;6Drive Mode: Dynamic Scanning; Control Method: Asynchronous Control;7）Features: Time display with calibration, automatically network syncs daily for accuracy; schedule on/off, timing can be set based on foot traffic; remote text adjustment for convenient temporary notifications (specific interface).。 |
15 | Educational poster and signage (4 hangings, 3 standing) | Customized | Expert meteorological scientific explanation with illustrative graphics. Windproof, waterproof, and UV-resistant materials. |
Features:
(1) Automatically collects all sensor data, features real-time data communication with computers, and allows for setting the collection frequency of various meteorological parameters.
(2) Provide standard RS232, RS485, Ethernet, and GPRS wireless communication interfaces based on customer requirements.
(3) Open Data Communication Protocol for easy secondary development by users.
(4) Designed with industrial-grade components, ensuring normal operation in harsh environments.
(5) The Automatic Weather Station Data Collector utilizes a high-performance microprocessor as the main control CPU, a large-capacity data storage device capable of continuous data storage for over 10 years, industrial control standard design, and portable vibration-resistant structure.
(6) Reliable 3-proof design with IP65 protection level, complete with lightning protection and anti-interference measures.
Poyang Lake Automatic Weather Station
Urban Automatic Weather Station
Beijing University of Geosciences Automatic Weather Station
Jiangxi Liling Xiuwu County Chengfang Scenic Area Automatic Weather Station
