Inorganic ceramic membrane modules are pressure-resistant shells assembled with ceramic membrane elements, which can accommodate ceramic membrane elements of various diameters and surface areas according to industrial production needs through different specifications of module shells. The membrane area per module can range from 0.05 square meters to 27 square meters. The design of the module's shape and sealing is crucial for the operation of the complete ceramic membrane system. This series of modules can meet the requirements of different customers, systems, technical specifications, and treatment volumes with dozens of specifications and models of filter precision and membrane tube types (ceramic or ceramic composite membranes).

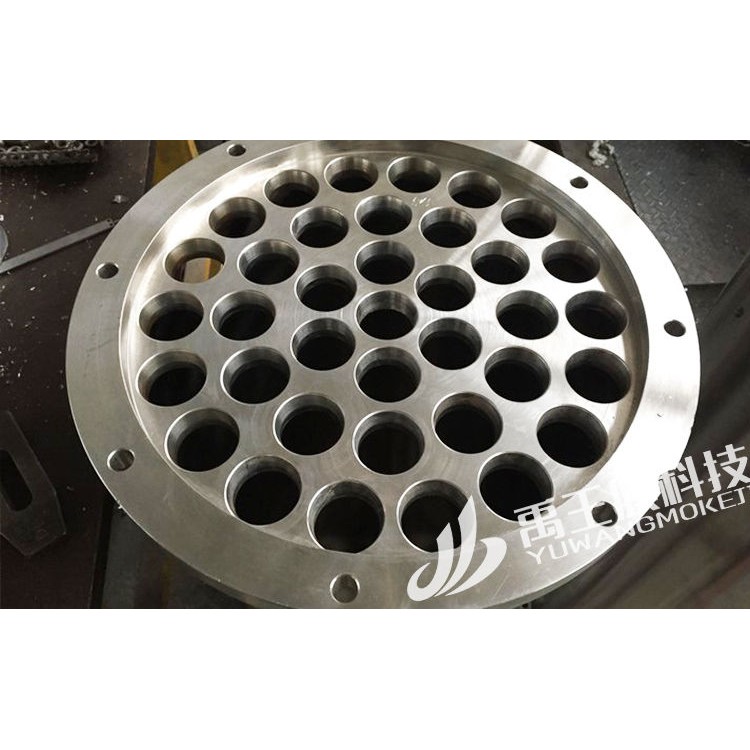

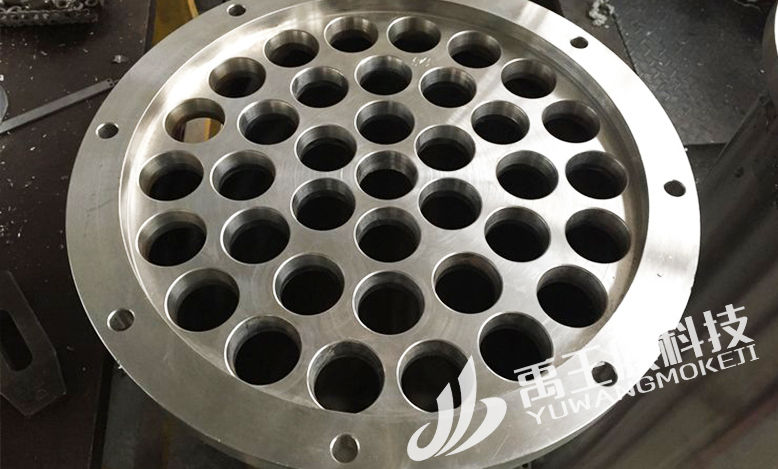

Number of packing film elements: 1, 3, 7, 12, 19, 37, 61, 91 cores

Matching membrane element length and diameter: 250～1220mm / Outer diameter: 12mm/25mm/30mm/40mm/60mm

Main Material: SUS304, SUS316(L) stainless steel, titanium metal, polypropylene

Sealing Materials: EPDM rubber, fluoro rubber, silicone rubber, etc.

Interface Forms: Flanges, Clamp, Socket / DN15-400

Standard: ISO, DIN/Chemical Grade, Sanitary Grade
