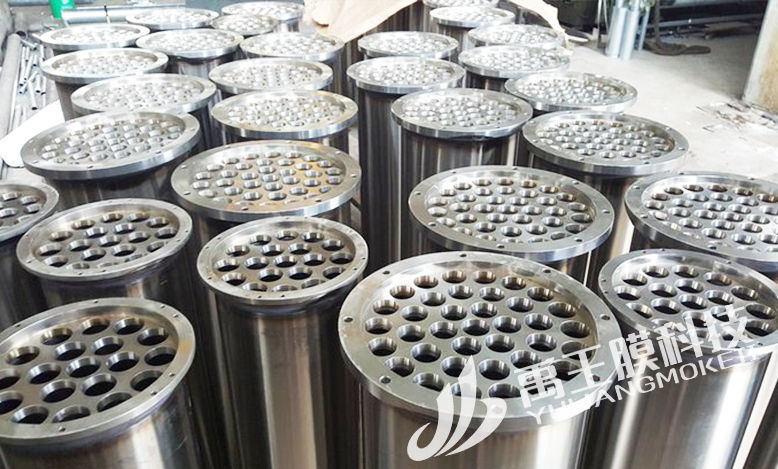

Inorganic ceramic membrane modules consist of pressure-resistant shells assembled with ceramic membrane elements. To meet industrial production needs, different specifications of module shells can achieve concentrated loading of ceramic membrane elements with varying outer diameters and surface areas. The membrane area per module can range from 0.05 square meters to 27 square meters. The design of the module's shape and sealing is crucial for the operation of the complete ceramic membrane system. This series of components can accommodate several specifications and models of filter precision, membrane tube types (ceramic or ceramic composite), catering to various customer requirements, systems, technical specifications, and treatment volumes.

Filling Film Element Quantity: 1, 3, 7, 12, 19, 37, 61, 91 cores

Matching membrane element length diameter: 250～1220mm / Outer diameter: 12mm / 25mm / 30mm / 40mm / 60mm

Main Material: SUS304, SUS316(L) stainless steel, titanium metal, polypropylene

Sealing Materials: EPDM rubber, fluororubber, silicone rubber, etc.

Interface Forms: Flanges, Clamp, Swivel Joint/DN15-400

Standard: ISO, DIN/Chemical Grade, Sanitary Grade
