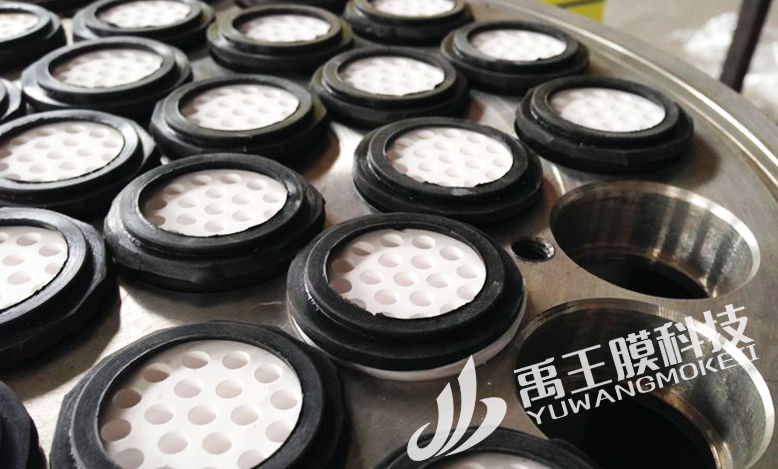

Inorganic ceramic membrane modules are pressure-resistant shells assembled with ceramic membrane elements, enabling the centralized loading of ceramic membrane elements with varying outer diameters and areas to meet industrial production needs. The membrane area per module can range from 0.05 square meters to 27 square meters. The design of the module's shape and sealing is crucial for the operation of the complete ceramic membrane system. This series of modules can accommodate dozens of specifications and models of filter precision and membrane tube types (ceramic or ceramic composite membranes) to cater to different customers, systems, technical requirements, and processing volumes.

Packaging Film Element Count: 1, 3, 7, 12, 19, 37, 61, 91 cores

Matching membrane element length diameter: 250～1220mm / Outer diameter: 12mm / 25mm / 30mm / 40mm / 60mm

Material: SUS304, SUS316(L) stainless steel, titanium metal, polypropylene

Sealing Materials: EPDM rubber, fluororubber, silicone rubber, etc.

Interface Forms: Flanges, Clamp, Socket / DN15-400

Standard: ISO, DIN/Chemical Grade, Sanitary Grade
