Made from various materials such as nylon fabric, insulating sheets, rubber-coated fabric, oil-resistant fabric, waterproof fabric, flame-retardant fabric, high-temperature-resistant fabric, and acid/alkali-resistant fabric, we can customize according to our customers' specific needs. Customers must provide: 1) the stretched length; 2) the contracted thickness; 3) the diameter of the protective component; 4) the maximum outer diameter requirement of the sleeve and the connection method; 5) technical specifications for the operating environment and material requirements. Generally, the ratio of the stretched length to the contracted thickness of the sleeve is 1 meter to 15 centimeters, but we can also process and produce sleeves with a larger or smaller ratio to meet customer requirements.
Features include dustproof, waterproof, oilproof, emulsion-proof, chemical-resistant, anti-metal shavings, stretch-resistant, non-deforming under impact, corrosion-resistant, and long service life. The protection is achieved through a centered flange installed at both ends of the protected component, ensuring a non-contact connection. The safety of the connection between the protective sleeve and the centered flange is achieved through its inherent pre-compressed elastic force, resulting in stable operation, flexibility, and low noise. The surface is black with a glossy finish, coordinating with most flange components on the machine. White screw protector sleeves can also be produced. The elongation-to-compression ratio of the sleeve is 1000:150, allowing it to expand or compress with mechanical components. The diameter, extension length, and connection method are not restricted, making it bendable.

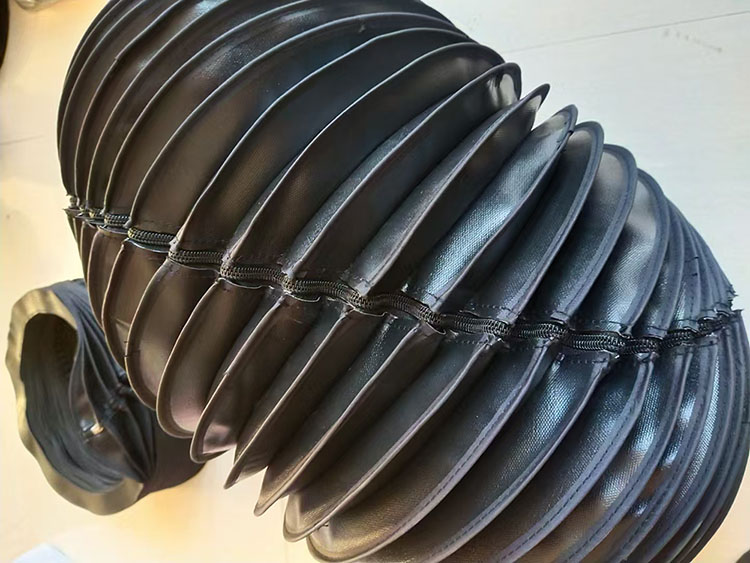

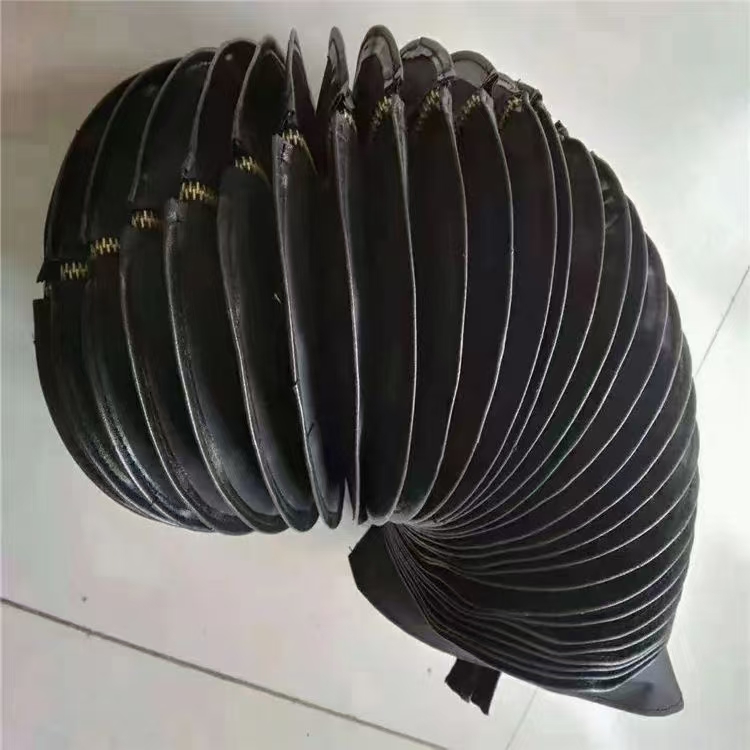

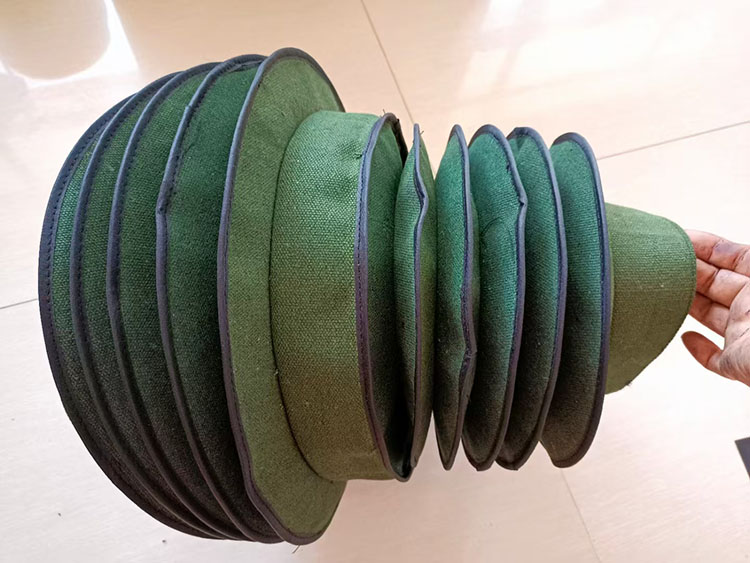

A variety of materials are available based on different working environments. They are first formed into discs through stamping and sewing. The two adjacent inner edges and two outer edges are stitched together, achieving good shape stability and firmness in the horizontal direction through the sewing process. They effectively protect components such as lead screws, light bars, shafts, pillars, etc., from dust and other external contaminants and damage. The circular stitched protective covers are made by stitching multiple discs together, with the two adjacent inner edges and two outer edges stitched together, achieving good shape stability and firmness in the horizontal direction through the sewing process.
Especially suitable for protecting small particles, it can also bear the weight generated by the particles. The circular stitched protective cover can be used horizontally or vertically. When used horizontally, it is recommended to use a plastic or aluminum support ring to maintain a certain uniform distance between the skin chamber and the screw rod, thereby extending its service life. When the elongation length is large, a metal ring can be added at each fold to enhance the stability of the skin chamber. The connecting or fixing end is usually equipped with a metal flange, or a sleeve clamp can be chosen. Additionally, we can also provide side-opening models, which can avoid the inconvenience of disassembling and installing for customers, more effectively improving production efficiency and saving labor and materials, thus gaining the favor of an increasing number of users.
