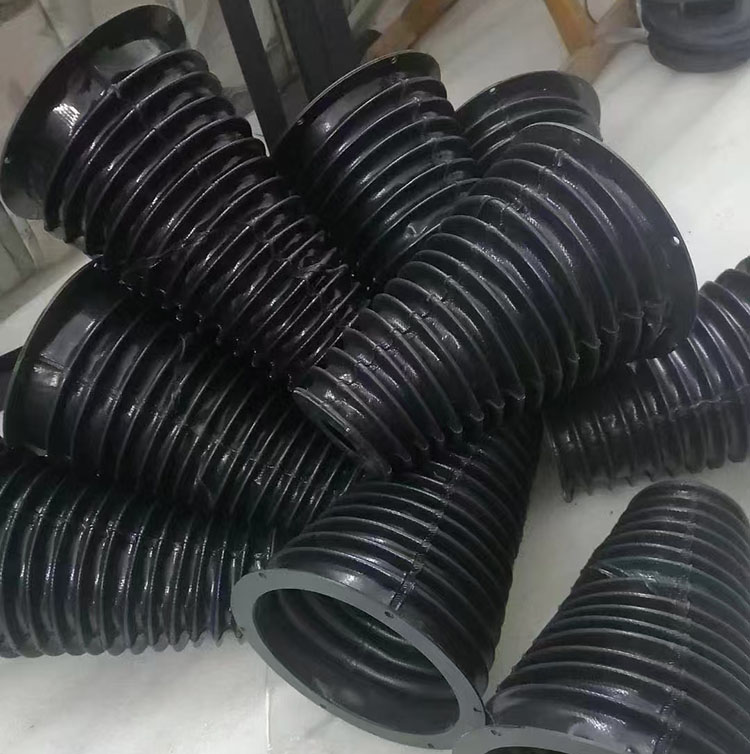

Made from various materials including nylon fabric, insulating roll materials, rubber adhesive fabric, oil-proof fabric, waterproof fabric, flame-retardant fabric, heat-resistant fabric, and acid/alkaline-resistant fabric, we can customize products according to customer requirements. Customers must provide: 1) the stretched length; 2) the shrinked thickness; 3) the diameter of the protective part; 4) the maximum outer diameter requirement of the sleeve and the connection method; 5) the usage environment and technical specifications for material requirements. Generally, the ratio of the stretched length to the shrinked thickness of the sleeve is 1 meter to 15 cm, but we can also process and produce sleeves with a larger or smaller伸缩 ratio according to customer requirements.
Features include dustproof, waterproof, oilproof, emulsion-proof, chemical-resistant, anti-metal shavings, stretch-resistant, non-deforming under impact, corrosion-resistant, and long service life. The protective sleeve is connected to the centering flange installed at both ends of the protected part, forming a non-contact connection. The safety of the connection between the protective sleeve and the centering flange is achieved through its inherent pre-compressed elastic force, ensuring stable operation, flexibility, and low noise during use. The surface is black with a glossy finish, coordinating with most flange components on the machine. White screw protector sleeves can also be produced. The elongation-to-compression ratio of the sleeve is 1000:150, allowing it to expand or compress with mechanical components. It is bendable without restrictions in diameter size, extension length, and connection method.

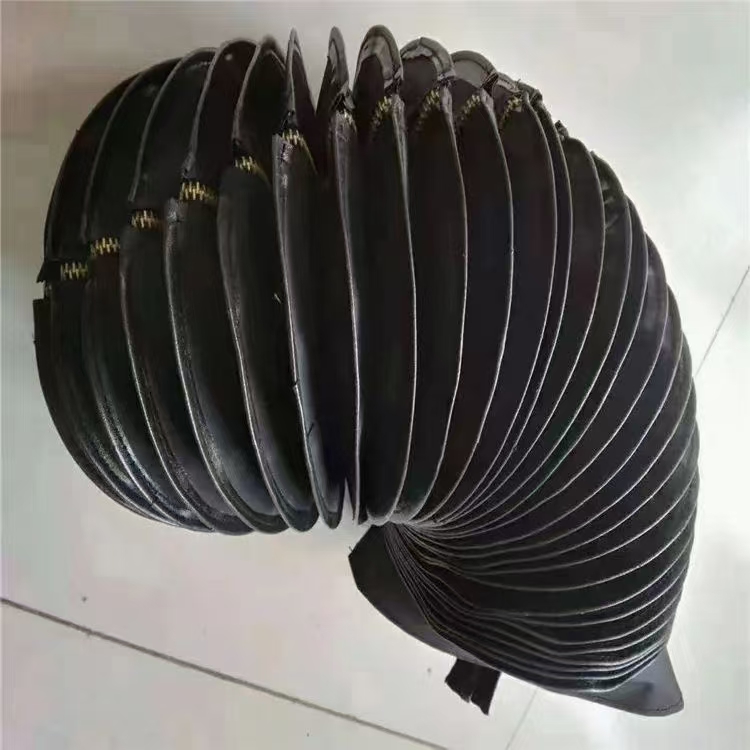

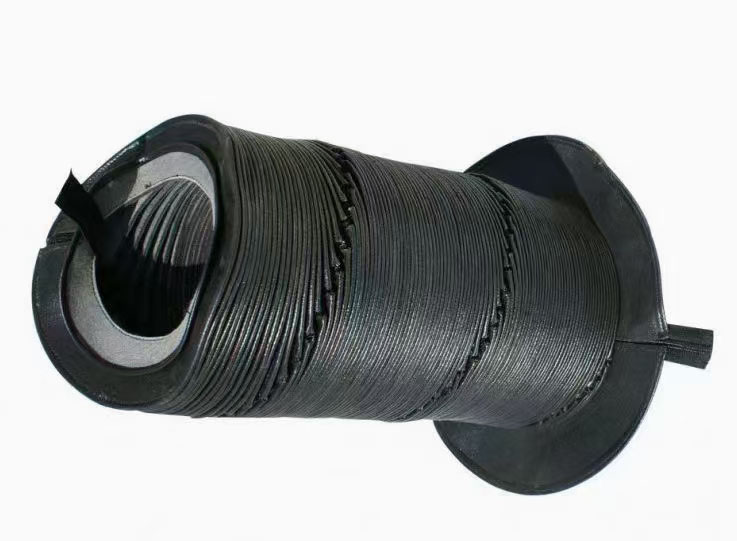

Available in various materials suited to different working environments, these are first formed into discs through stamping and sewing. The adjacent inner and outer edges are stitched together, providing excellent shape stability and firmness in the horizontal direction. They effectively protect components such as screw threads, light bars, shafts, and pillars from dust and other external contaminants and damage. The circular stitched guards are made by sewing multiple discs together, with adjacent inner and outer edges stitched to achieve good shape stability and horizontal strength.
Especially suitable for protecting small particle debris, it can also bear the weight generated by the debris. The circular sewn protective cover can be used horizontally or vertically. When used horizontally, it is recommended to use a plastic or aluminum support ring to maintain a uniform distance between the skin chamber and the screw rod, extending its service life. For greater stretch length, a metal ring can be added at each fold to enhance the stability of the skin chamber. The connecting or fixed end is usually fitted with a metal flange, or a sleeve clamp can be chosen. Additionally, we can provide side-opening models, which avoid the inconvenience of disassembling and installing for customers, more effectively improving production efficiency and saving on labor and materials, thus gaining the favor of an increasing number of users.
