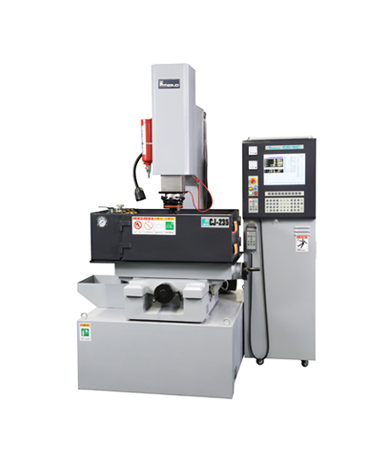

CJ235

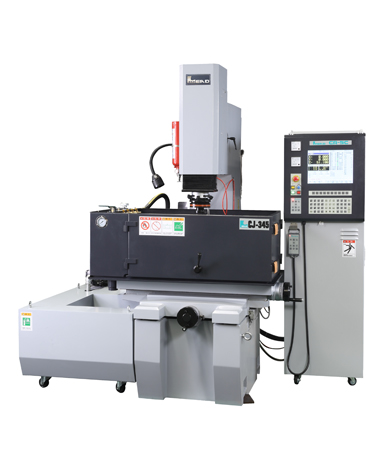

CJ340

CJ345

CJ560

X*Y*Z itinerary

350*250*200

400*300*200

450*350*200

600*500*220

Engine head stroke

170mm

220mm

220mm

220mm

Workbench dimensions

600*320

700*360

700*400

900*500

Large electrode weight

50kg

75kg

75kg

75kg

Large workpiece weight

500kg

900kg

1000kg

1500kg

Machine Tool Dimensions

1200*1400*2100

1200*1300*2150

1300*1350*2160

2650*1900*2300

Machine tool weight

1000kg

1100kg

1300kg

1950kg

Group Base Electric Spark Appliance Specifications (CR5F)

Power specifications

30A

Power Capacity

6KVA

Processed Voltage

100V

High-Pressure Selection

210V

Short break

1us

Short discharge time

1us

Processing Speed

220mm3\min

Surface finish

0.4umRa

Electrode consumption ratio

0.3%

Electrical control cabinet weight

210kg

01：

Taiwan Quanji Electrical Discharge Machine - High-Precision Spindle Design
The machine's main spindle is equipped with high-precision linear rail and ball screw, ensuring the achievement of high-precision performance.

02：

Precision Unwinders (Group Base) - Convenient, practical, and comprehensive features

Pentium-grade PC boardIndustrial Sed computer controller; 15-inch TFT LCD monitor

Dialog-based human-machine interface, convenient and practical.

03：

Precision Motorized Release Device High Rigid Casting Body Structure
CAD-designed with high-precision structure, FC-250 casting, featuring precise material, strong toughness, and post-tempering with natural aging for durability and resistance to deformation; workbench surface treated with high-frequency and precision ground, offering high hardness and resistance to wear.

04：

Precision Motor Release Device (Group Base CR5F) Expert Database

Pre-set 10 commonly used processing parameters memory module; equipped with carbon deposition prevention system.

Automatically stores parameter positions and mechanical zeroing without being affected by power outages.

Offering a ten-stage deep processing parameter range from rough to fine processing.

05：

Gang Base Discharge Machine (Precision Discharge Machine) Transmission Guide Rails
The X and Y axes feature a V-shaped mating design with flat side rails; the base, slide platform, pillar, and heart shaft are all constructed with excellent structure, which is conducive to maintaining the high precision of the equipment.

01：

Alcohol sphere fire extinguishers, LED work lights, Taiwan Huale Oil Pumps, filters, and filter cotton

Three-axis Optical Gauge (resolution 0.001mm), Fine Detail Permanent Magnet Disc (150mm x 300mm) Toolbox (includes standard accessories), Operation Manual, Original Factory Warranty, etc.

Other items listed in the attached documents are optional. For details, please contact us.
