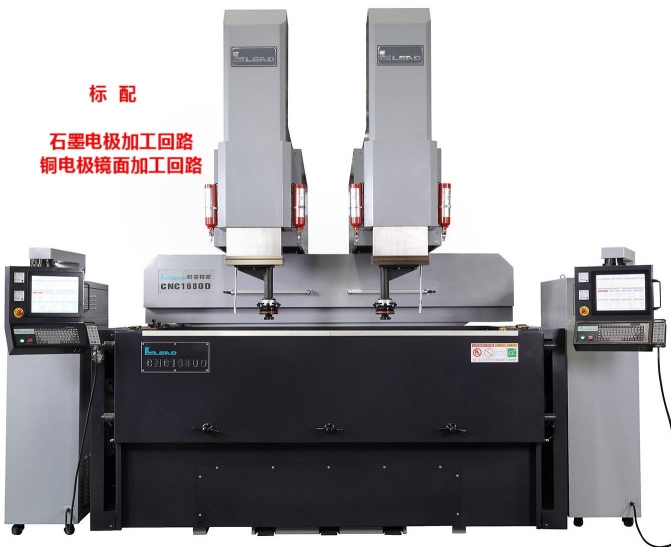

Electrical Characteristics:
Controller:
Utilizing industrial-grade low-power motherboard controller, VLSI ultra-large scale integrated circuit design, and a stable LINUX operating system.
2. Supports Industrial 4.0 Communication Protocols:
The I/O interface control utilizes the EtherCAT industrial 4.0 communication protocol, supporting remote diagnostics, monitoring, and debugging (optional feature).
Touch Display Panel
Multi-functional quick selection operation, with the freedom to choose between touch and keyboard functions.
4. Supports USB and network communication features:
The program can be copied and replicated via USB or network, for convenient operation and use.
5. Utilizing Panasonic servo drives for compatibility
Servo drive-compatible control system, zero return not required upon startup, for more convenient use.
6. Full Chinese operating system with simple and clear interface, easy to learn and get started quickly:
Supports various oscillating and path processing, multiple dross removal methods and processing programs, multiple working coordinate sets, various depth gauges, various automatic centering/edge finding, supports edge ball operation, multiple processing parameters, power-off coordinate memory..., comprehensive functions, suitable for all types of simple/complex/multi-mode/multi-hole/deep hole...and various mold processing.
7. NC programming compatible with certain imported brands:
Universal NC Programming System, enhanced functionality for ease of use
9. Wide range of electrode and mold machining capabilities:
Deep holes, mirror finish, connectors, super-hard alloys, powder metallurgy, graphite electrodes... various electrodes, mold processing capabilities.
10. Newly designed mirror-polished circuitry
PEAK mirror finishing circuit, offering superior mirror finishing surface effects and faster processing speeds, with surface roughness ≤ Ra 0.1 µm.
Mechanical characteristics:
High-rigidity cast body
XY-axis cross slide structure, effectively controls the balance of XY-axis movement, resulting in higher and more stable vibration expansion drilling accuracy; the base center of gravity is more stable, ensuring the stability of machining accuracy; made of FC30 casting, and heat treated, the worktable surface hardness reaches above HRC45.
2. New Filter System
Standard high-density filter, superior spark plug oil filtration, and easier filter element replacement and maintenance.
3. High-rigidity transmission structure design, effectively reducing the thermal expansion deformation issue of the screw shaft.
Three-axis precision ball screw, effectively reduces overall backlash, ensures servo transmission accuracy, can withstand large gravity acceleration generated during electro-discharge machining, while also reducing the thermal expansion deformation of the screw, extending the service life of the screw and bearing, improving processing performance and accuracy. The three-axis uses a Panasonic AC servo motor, and all models in the series are laser calibrated to ensure full stroke positioning accuracy.

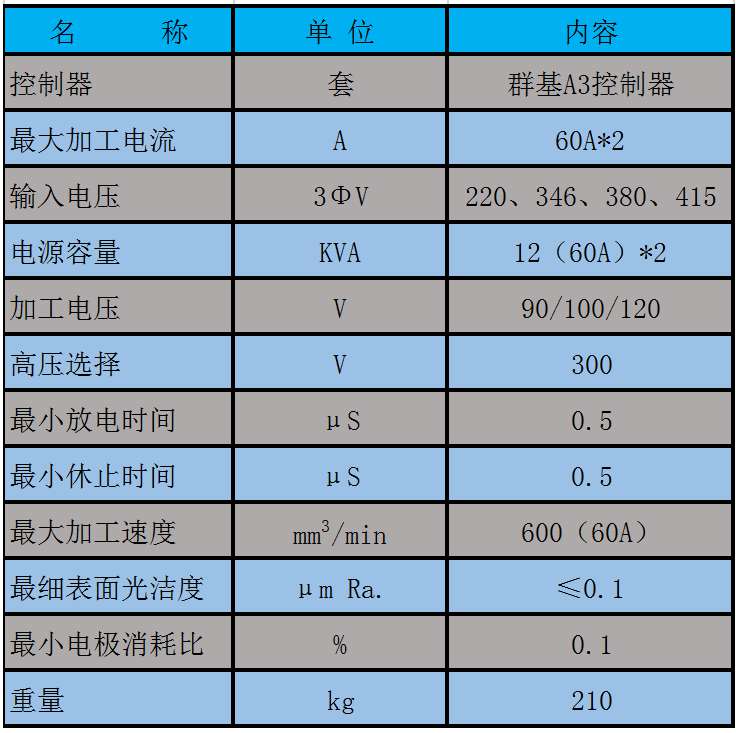

Mechanical Specifications:
