T2 Copper Busbar Grounding Busbar High Conductivity Copper Busbar
We specialize in the production and sales of various copper materials, including copper tubes (red copper, brass, copper square tube, copper rectangular tube), copper rods, copper strips, copper plates, copper pipes, copper bars, copper sections, bronze, manganese brass, brass, red (red) copper, phosphor copper, tin brass, aluminum bronze, phosphorus deoxidized copper, oxygen-free copper, lead brass, silver brass, silicon brass, etc. We have a complete staff and equipment, as well as strong technical strength. Our materials include: H96 (C2100), H90 (C2200), H80 (C2400), H70 (C2600), H68 (C2680), H65 (2700), H63 (C2720), H62 (C2800), HPb59-1, HPb59-2, C3604 brass, T1, T2, T3, T4, T6, T8 red copper, phosphor bronze C5240, C5210, C5191, C1220, C1040, C111, aluminum bronze QAL9-4, QAH9-2, QAL10-4-4, QALT7, QAL9-5-1-1, pure red copper C1020, C1100. We also offer red copper foil, brass foil, and GB states O, 1/2y, 1/4y, 3/4y, y, m. Additionally, we deal in Japanese NGK, South Korean, and American silver copper strips, beryllium bronze strips, tin phosphorus bronze strips, domestic high-precision and standard brass strips, tin phosphorus bronze strips, zinc white brass, bimetallic strips, and more.
Product Application:
Widely used and in high demand in the electrical and electronic industries, accounting for over half of total consumption. Used in various cables and wires, motor and transformer windings, switches, and printed circuit boards, among others. Extensively applied in the chemical industry for manufacturing vacuum pumps, distillation pots, brewing kettles, etc. In the construction industry, it is used for various pipes, pipe fittings, decorative components, and more. In the manufacturing of machinery and transportation vehicles, it is used to produce industrial valves and accessories, instruments, sliding bearings, molds, heat exchangers, and pumps.
Processing Techniques: Cutting, Polishing, Washing, etc.
Our Philosophy: Thin profit margins, quality control, and honest business operations.

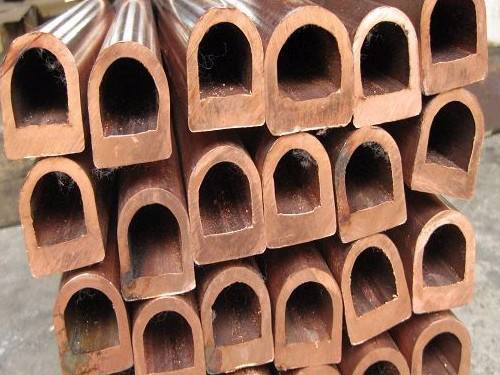

Copper tubes available in materials such as H62, H63, H65, H68, T2, TP2, and oxygen-free copper tubes.
Our pipes are free of sand holes, have good eccentricity, stable chemical composition, can be straightened, stretched, and feature external and internal stripping, engraving, bending, and internal and external processing. The copper pipes have smooth inner and outer surfaces with precise dimensions, and the tolerance for inner and outer diameter can reach ±0.02.
Regarding pipe manufacturing: We specialize in producing high-quality copper pipes in various specifications, with dimensional tolerances of +/-0.02 for both inner and outer surfaces, ensuring smoothness, straightening, surface cleaning to remove oil. Quality is re-inspected, and we offer firm, semi-firm, and soft states for production, suitable for any processing.

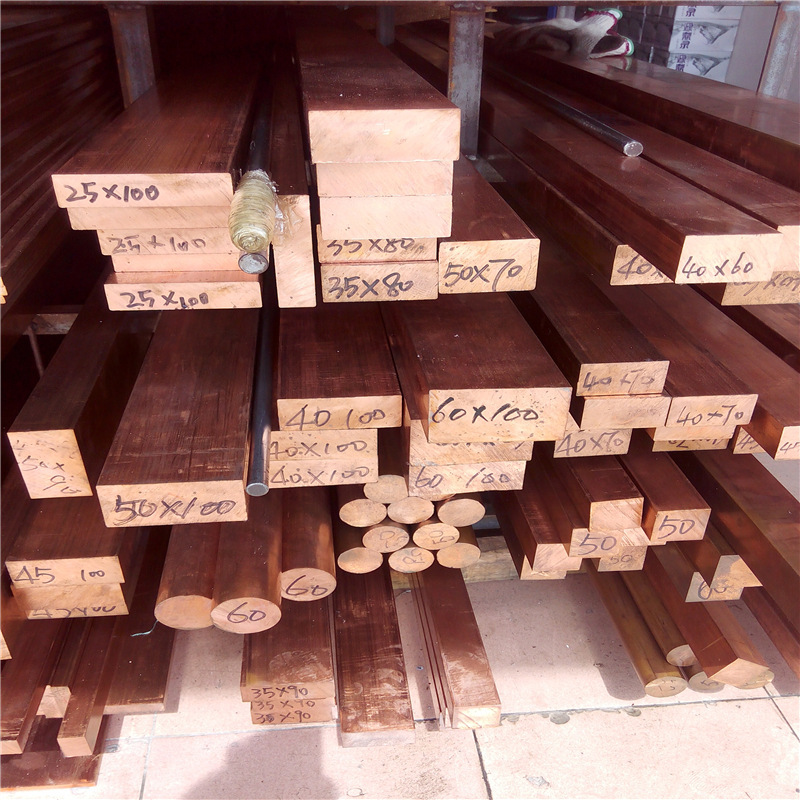

Copper busbars are a type of copper strip with excellent electrical and thermal conductivity, corrosion resistance, and workability. They are suitable for welding and brazing.
Tensile Strength: ≥195, Elongation: ≥30 T2 Copper Bars GB/T 2040-2008 R 4~14
Features and Application Scope
Excellent electrical and thermal conductivity, corrosion resistance, and machinability; suitable for welding and brazing. Contains minimal impurities that reduce electrical and thermal conductivity; trace amounts of oxygen have little impact on conductivity, thermal conductivity, and processing, but are prone to cause "hydrogen embrittlement." Not suitable for processing (annealing, welding, etc.) and use in high-temperature (e.g., >370℃) reducing atmospheres.
Copper + Silver CuAg: ≥99.90
Tin (Sn): ≤0.002
Zinc (Zn): ≤0.005
Lead (Pb): ≤0.005
Lead (Pb): ≤0.005
Nickel (Ni): ≤0.005
Iron (Fe): ≤0.005
Beryllium (Sb): ≤0.002
Sulfur (S): ≤0.005
Arsenic (As): ≤0.002
Bismuth (Bi): ≤0.001
Oxygen (O): ≤0.06
Note: ≤0.1 (impurities)
Sample Size: Thickness 0.5-10
3 Heat Treatment Specifications
Heat treatment temperature: 900～1050℃; Annealing temperature: 500～700℃; Recrystallization start temperature for cold-work hardened copper: 200～300℃. Stainless steel aluminum plate mold steel high-speed steel brass features high strength, strong hardness, competitive pricing, and excellent tensile resistance.
