Product Description:Mineral gravity separation equipment70Invented by Chinese engineers, this era is primarily used for selecting sand gold mines. It works exceptionally well for capillary gold and thin-skinned gold, featuring a simple structure, reliable operation, minimal malfunctions, low energy consumption, and minimal water usage. It is an effective equipment for淘选 sand gold mines.

Also applicable to other gravity separation mining. It effectively overcomes the phenomenon of chute board agglomeration and reduces the sedimentation in the chute, significantly improving the recovery rate of fine-grained gold.

Working Principle:Gold panning through sluices utilizes the difference in specific gravity between gold and sand. As the slurry flows through the sluice, the gold, being heavier, settles at the bottom, while the lighter sand and other particles float to the top and are washed out of the working area. The original fixed sluices used gold-washing mats to extract gold, but due to phenomena such as board caking and siltation, the net selection rate of the gold-washing mats was only30%On the one hand, these drawbacks have been specifically addressed and overcome by the drum-type chute.--The base is made of rubber plates, which are mechanically vibrated to slowly agitate the base, overcoming the adhesion of mud and sand, and periodically agitating to achieve stratification and sand removal, thereby increasing the purity rate to90%Left and right.

Main Technical Parameters:After years of improvement and comparative tests, the drum-type gold sluice has become a standout in gold mining equipment due to its simple structure, reliable operation, and high purity rate, alongside淘金水套离心机 in recent years.

Gold Selection SluiceDescription:

Gold Sluice -- The solitary gold sluice is a representative of small-scale gold separation equipment in sand gold mining.

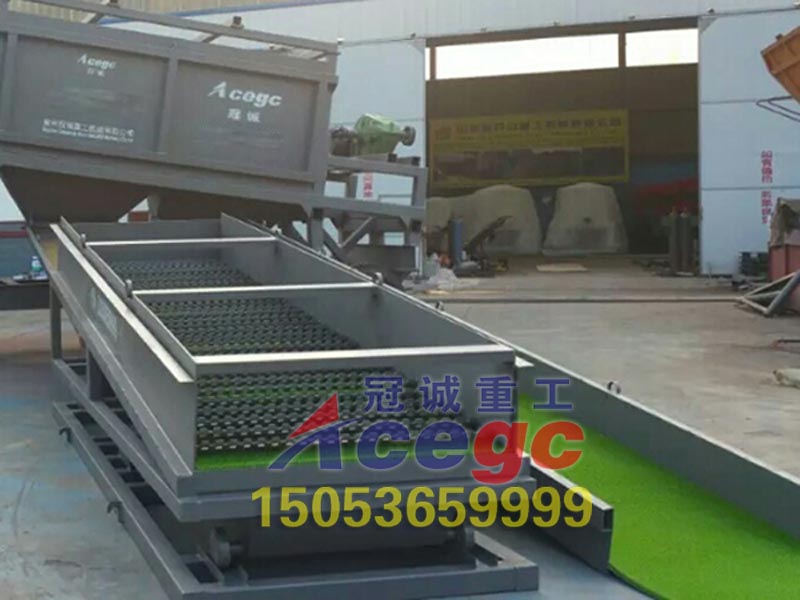

The effective configuration for placer gold mining equipment should be a "fixed chute + vibratory chute" setup. At the front, use a 3-meter fixed chute, followed by a series of vibratory chutes. This is because the connection between the vibratory chute and the sieve requires a short water trough, and laying gold felt over the short trough serves as the fixed chute, achieving two benefits with one action. Our company strongly opposes the sole use of fixed chutes in placer gold mining, as it is both wasteful of one's own resources and a squandering of natural resources.
The agitation chute utilizes the gold selection principle of fixed chute, adding a set of silicone plate agitation device, mechanically agitating the bottom plate to create periodic up and down movements, preventing mud and sand from caking. This periodic agitation achieves stratification and sand removal, enhancing the recovery rate of sand gold. The agitation chute is highly effective for capillary gold and thin-skinned gold, with a simple structure, reliable operation, minimal faults, low energy consumption, and low water consumption, making it a practical sand gold equipment.
The bottom plate of the chute is made of natural silicone. The movement of the silicone plate is driven by an electric motor, a reducer, and an agitation mechanism, forcing the agitation frame to move up and down reciprocally. Consequently, the silicone plate also moves up and down, enabling the separation of heavy and light minerals in the slurry through this reciprocating motion. The sediment layer remains loose, facilitating the recovery of heavy minerals. After a 5000mm long sorting process, heavy minerals and gold particles settle at the bottom between the chutes, while light minerals are continuously discharged from the tail end. The agitation mechanism designed on the chutes ensures that the chute maintains an excellent sorting condition throughout the extended sorting process.
The induced slot is ideal for gold mining equipment, and our company has developed an automatic ore-discharging induced slot, which is easier to operate and more efficient. It's an excellent choice for gold mining and ore processing in sand gold mines.

Qingzhou Guancheng Heavy Industry Machinery Co., Ltd. specializes in manufacturingGold Sluice & Gold Mining Equipment Selection
