Our products are exported to dozens of countries worldwide. With years of accumulated industry credibility, we have earned the trust of numerous clients both domestically and internationally, and have entered into business collaborations with many Fortune Global 500 companies and renowned domestic manufacturers. Filter Source boasts modern factory facilities and production equipment, as well as a laboratory and a comprehensive quality assurance system with完善 detection methods (raw material inspection, online inspection, process inspection, etc.), which are applied to our biotech and food & beverage products. All of our products meet FDA safety test requirements, ensuring product quality.

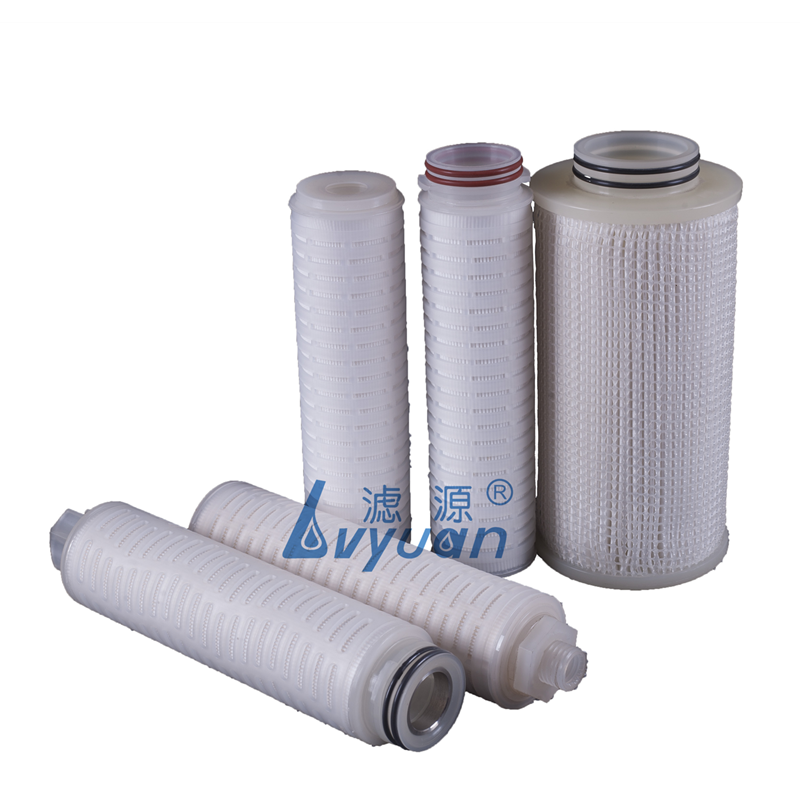

Large flow filter core element size specification:
Outside Diameter: 152mm, Inside Diameter: 89mm
Length: 1016mm
Surface Area: 5.6 square meters
High-flow filter element structural material:
Filter Layer: Microfiltration Polypropylene (PP)
Base Layer: Polypropylene (PP)
End Cap: Glass Fiber Reinforced Polypropylene
O-Ring: EPDM Rubber

High-Flow Filter Cartridge Features:
1. Allows high medium throughput with filter material, featuring high efficiency, low pressure drop, and long service life.
2. The external-in, internal-out structure of the high-flow filter cores makes it easy to replace the cores while keeping contaminants on the outer side of the cores.
3. The filter core is internally reinforced with a PP support frame, capable of withstanding a pressure difference of 0.245 MPa.
4. The filter element's β value exceeds 1000.
5. The filter housing can accommodate multiple filter cores, offering a wide range of usage, suitable for both startup and continuous operation.
6. Filter cores are durable and allow for a cost-effective and minimal configuration of filters.
High-flow filter core filter element application field:
Reverse Osmosis Pretreatment
Ultrafiltration Pretreatment
Cleaning Fluid Filter
Wastewater Treatment
Power plant, steel mill, condensate water
High-flow filter element size specifications:
OD: 152mm, ID: 89mm
Length: 1016mm
Surface Area: 5.6 square meters
High flow filter element structural material:
Filter Layer: Microfiltration Polypropylene (PP)
Support Layer: Polypropylene (PP)
End Cap: Glass Fiber Reinforced Polypropylene
O-rings: EPDM rubber
