Technical Performance of Collapsible Filter Cartridge Products:
1. Filtration Precision: 0.1um, 0.2um, 0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um
2. Filter Cartridge Length: 5", 10", 20", 30", 40" available for customization as per customer requirements
3. Filter Core Diameter: 69mm, 83mm, 131mm
4. Filter Core Inner Diameter: 28mm ~ 40mm
5. Test pH Range: 1-12
6. High working temperature: ≤80℃ at 0.1 Mpa
7. High working pressure: 0.3 Mpa at 50℃
8. High reverse pressure differential: 0.2 Mpa at 25°C
9. High sterilization temperature: 120℃ for 30 minutes each time

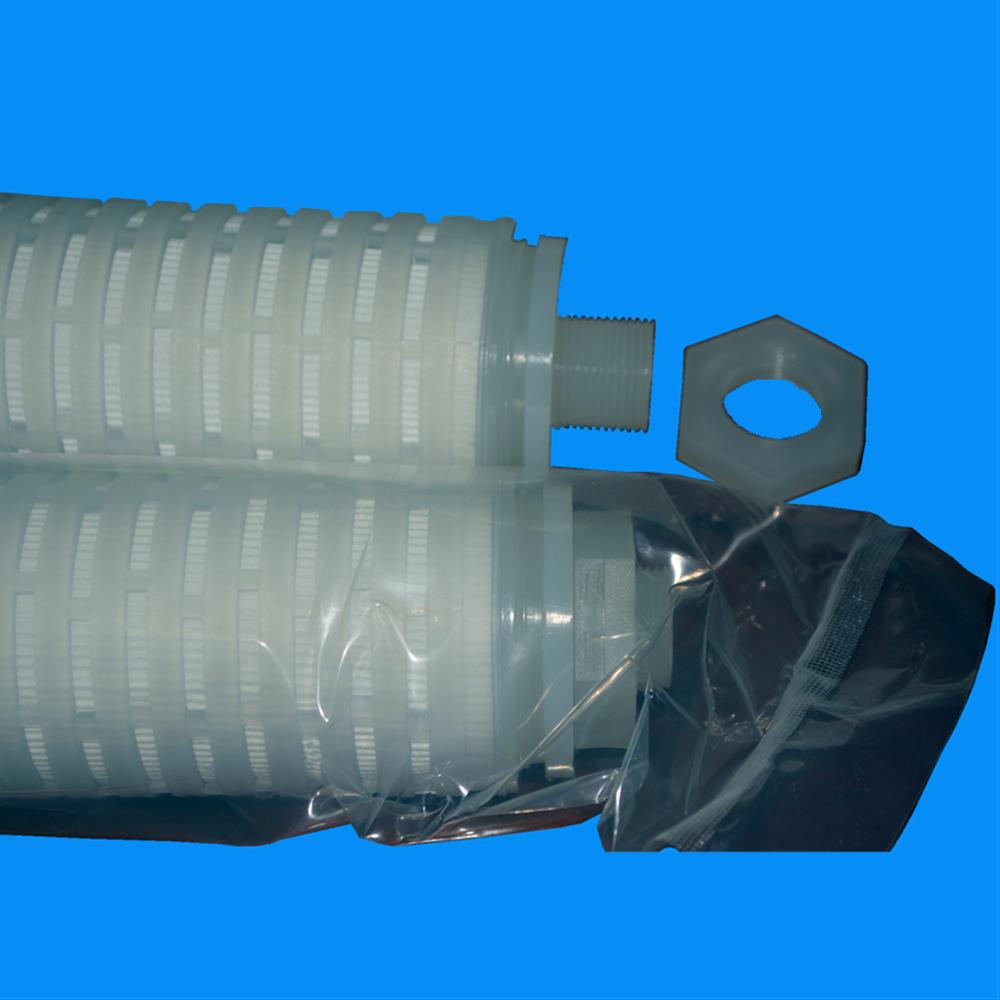

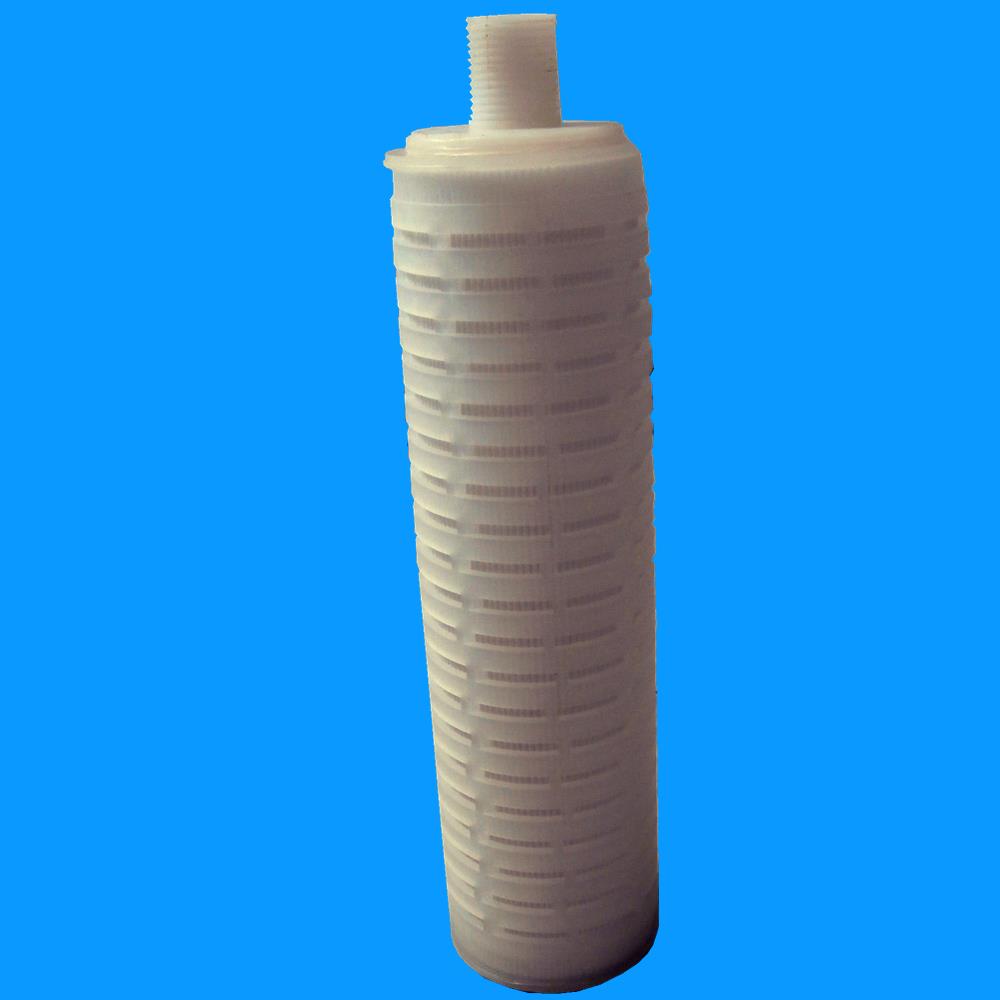

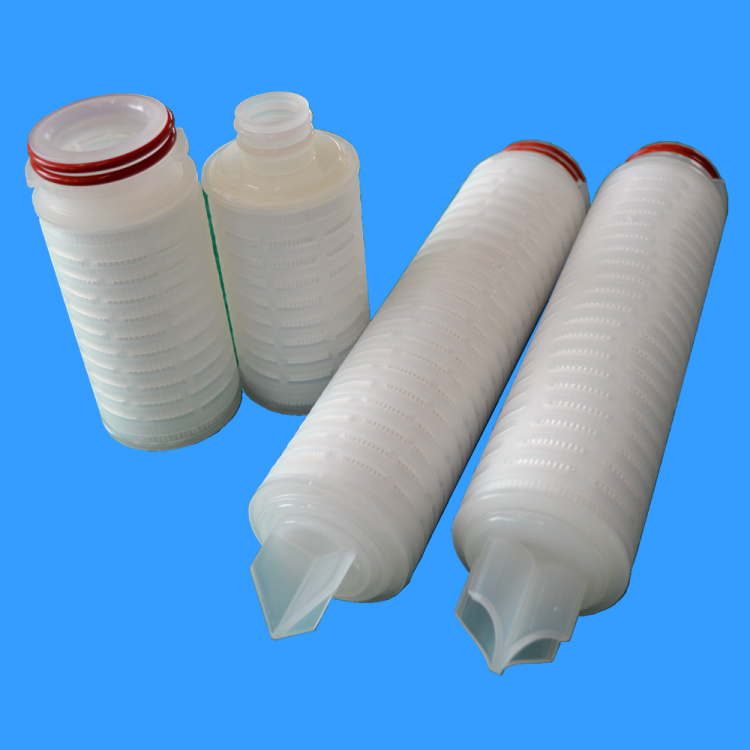

Micro-porous pleated filter cores feature pleated design, large membrane filtration area, high dirt-holding capacity, low pressure difference, and long service life. The cores are made entirely of pure PP material, offering a wide chemical compatibility.
Micro-porous pleated filter cores are made by folding ultra-fine polypropylene fiber membranes and non-woven or (sieve) inner and outer support layers. The center rod and end cover of the filter core shell are processed into shape using hot melt welding technology, free of any adhesives, with no leaks or secondary contamination.

Key features of the microporous collapsible filter cores: high retention rate, high flow rate, low pressure drop, and wide chemical compatibility; manufacturing process uses a special thermal welding technology, with no adhesives or foreign matter released. Meets production requirements for food, beverage, and other industries.

Micro-porous pleated filter cores are mainly made of polypropylene composite filter membranes. These cores are a type of fixed deep filtration core, with a nominal filtration precision range from 0.1μm to 60μm. The filter membrane is unaffected by fluctuations in feed pressure on filtration precision. With its unique low pressure drop, high flow rate, excellent filtration precision, and relatively low economic cost, it is favored by a wide range of users.
Our company is rooted in China's water treatment and environmental protection industry, focusing on industrial and domestic water treatment technology development and equipment design. We offer comprehensive services including engineering design, equipment manufacturing, installation, debugging, and maintenance for water treatment solutions. With a team of engineers specializing in water treatment technology, we provide you with complete solutions and technical support.
