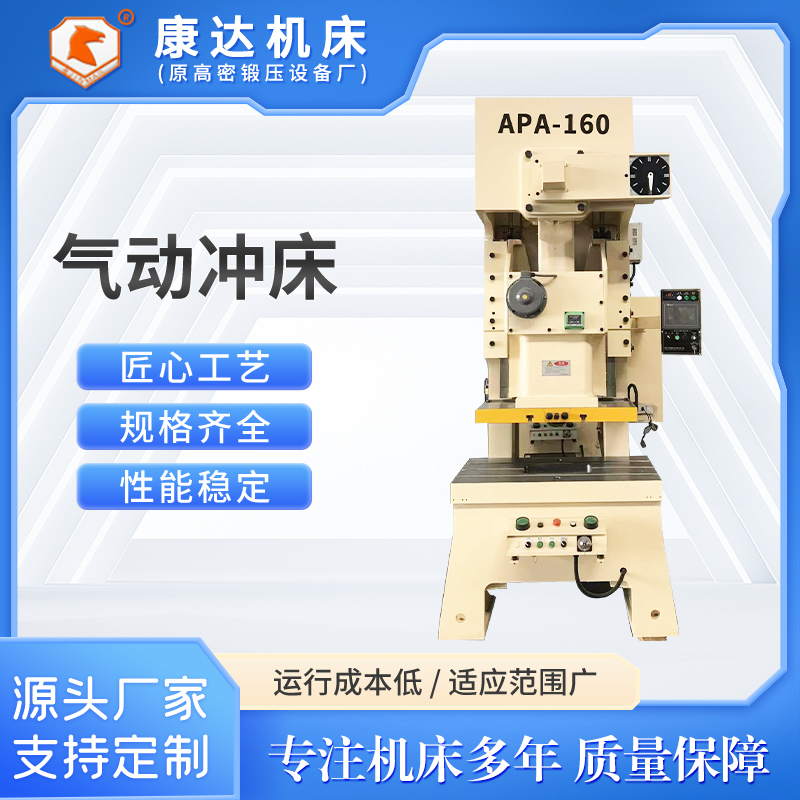

| Name | APA—160 |
| Tons/Ton | 160 |
| Location of Impulse Occurrence/mm | 6 |
| Every minute speed change/s.p.m. | 20-50 |
| Revolution per minute (RPM) | 35 |
| Travel Distance/mm | 30-180 |
| Closed working height/mm | 470 |
| Slider adjustment range/mm | 100 |
| Top workbench size/mm | 700x550x90 |
| Next workbench size/mm | 1250x800x140 |
| Mold hole / mm | Φ65 |
| Main Motor/Power (kw.p) | 15x4 |
| Slider adjustment structure/HP | Manual operation |
| Utilize air pressure/kg/cm² | 6 |
| CNC Punching Precision | GB(JIS) 1st class |
| Press brake (Length x Width x Height) / mm | 2315x1400x3670 |
| Press Weight/Tons | 16 |
| Mold Core Capacity/Ton | 10 |
| Mold pad stroke length/mm | 80 |
| Effective Area of Molding Pad/mm² | 650x420 |
