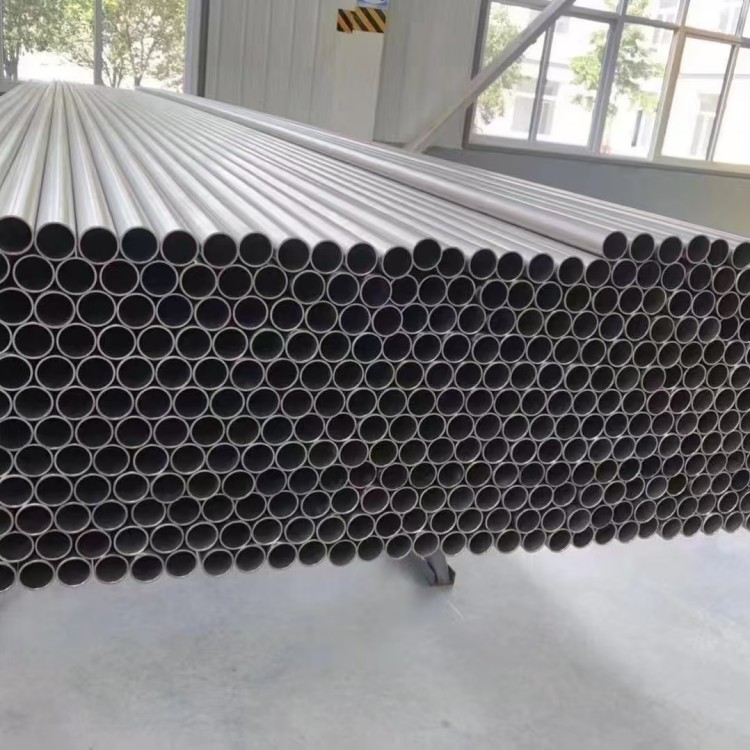

Titanium Alloy Tube

Price: 145 RMB/kg

Minimum Order Quantity: 50kg

Lead Time: 15 Days

Detailed specifications:

China Brand Numbers: TC4, TA9, TA18, TA10.

American Brand: Gr5, Gr7, Gr9, Gr12.

Russia Brand Numbers: BT16, BT5, BT6, BT-3B.

China Standard: GB/T3624, GB/T 3625, GJB3432A.

American Standards: ASTM B338, ASTM B337, ASTM B861, ASTM B862.

Russian Standards: GOST 21945, GOST 22897, GOST 24890.

Supply Status: Annealed Condition

Manufacturing Methods: Cold rolling (cold drawing), welding, welding-rolling.

Specification: (1) Cold rolled (cold drawn) tube: outer diameter 3-110mm, wall thickness 0.2-4.5mm.

(2) Welded Pipe: Outer Diameter 16-63mm, Wall Thickness 0.5-2.5mm.

(3) Welded - Rolled Tube: 6-30mm, Wall Thickness: 0.5-2.0mm

Product Features: High strength, excellent heat resistance, good corrosion resistance, superior low-temperature performance, high chemical activity, and low thermal conductivity.

Main Applications: Titanium alloy tubes are used for aircraft bodies and aerospace engine components. Applied in various power plants, pipeline systems with high demand, chemical processing industries, heat exchangers, and other environments commonly found in systems that handle heavy loads, such as high temperature and pressure or high pressure applications, like in the oil industry.
