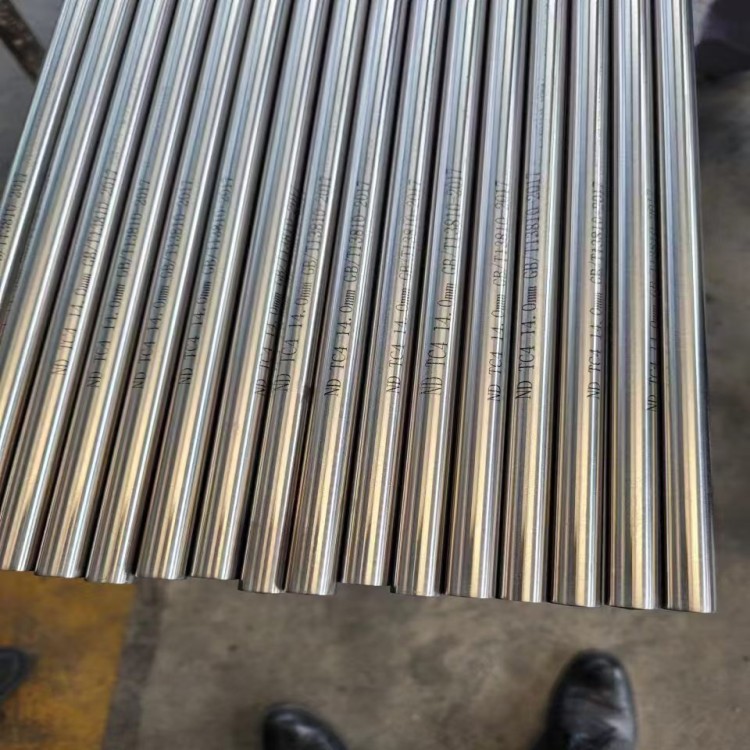

Titanium Alloy Tube

Price：145Yuan/kg

Minimum Order Quantity:50kg

Construction Period:15Sky

Detailed specifications:

China Brand Number:TC4,TA9,TA18,TA10.

U.S. Brand:Gr5,Gr7,Gr9,Gr12.

Russia Grade:BT16,BT5,BT6,BT-3B.

China Standard:GB/T3624、GB/T 3625、 GJB3432A.

American Standard:ASTM B338、ASTM B337、ASTM B861、ASTM B862.

Russia Standard:ГОСТ21945，ГОСТ22897，ГОСТ24890.

Supply Condition: Annealed

Manufacturing Methods: Cold Rolling (Cold Drawing), Welding, WeldedRolling.

Specs Cold rolled (cold drawn) tubes: Outer diameter 3-110mm, wall thickness 0.2-4.5mm.

（2) Welded Pipe: OD 16-63mm, WT 0.5-2.5mm

（3) Welded - Rolled Tubes: 6-30mm, Wall Thickness 0.5-2.0mm.

Product Features: High strength, excellent heat resistance, good corrosion resistance, good low-temperature performance, high chemical activity, and low thermal conductivity.

Main Application: Titanium alloy tubes are used for aircraft bodies and aerospace engine components. They are applied in various power plants, demand pipeline systems, chemical processing industries, heat exchangers, and common environments in systems capable of handling heavy loads, such as high-temperature and high-pressure or high-pressure, high-temperature applications like oil.
