Dry齿式插齿机 ST series
Company dealing in products:Nidec Machine Tool Corporation
The SE series is a gear hobber capable of achieving complete dry cutting, providing stable and high productivity processing.

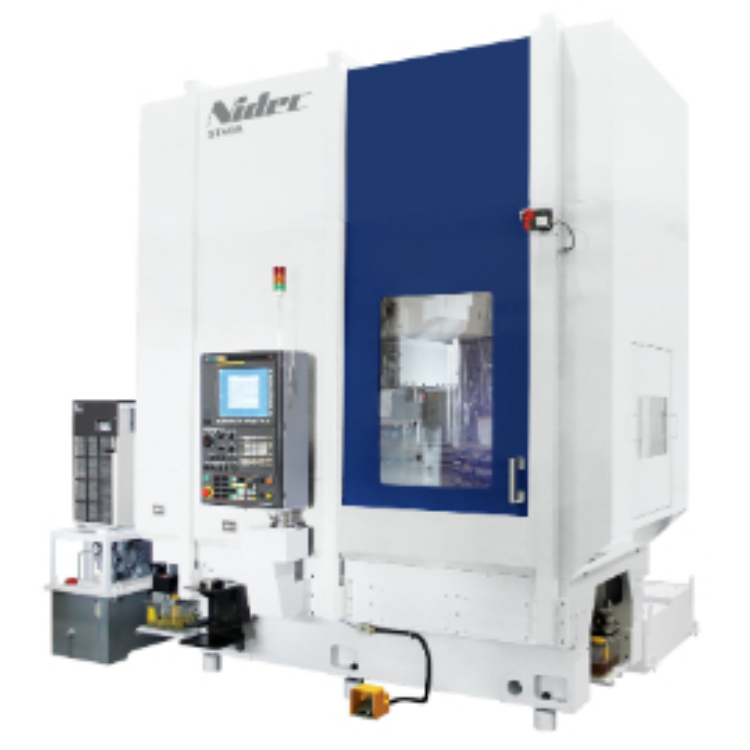

SE15A Series
· Part diameter （mm）
External Gear ⌀150
Internal Gear ⌀150 (⌀60 + Tool Diameter)
· Modular
4

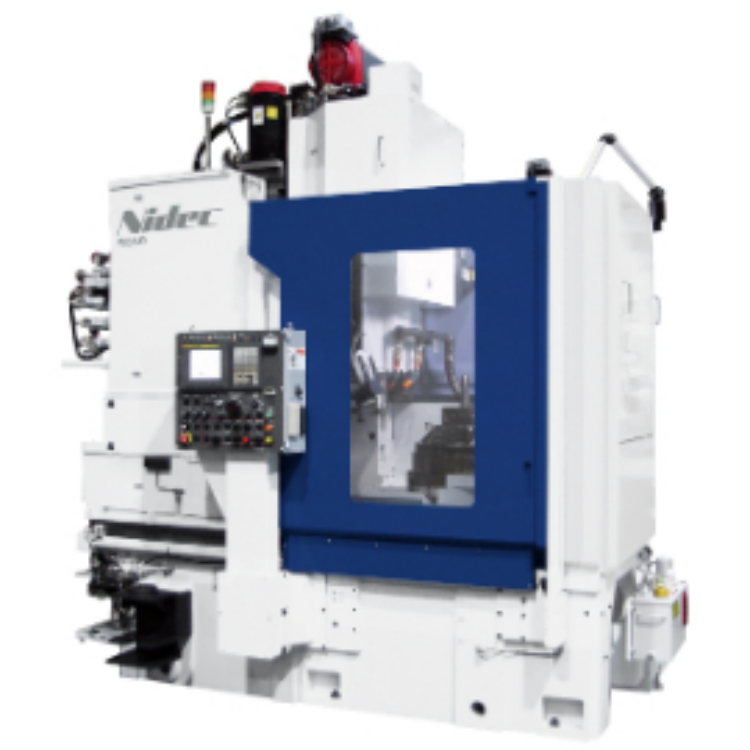

SE25A Series
· Part diameter （mm）
External Gear ⌀250
Internal Gear ⌀250 (⌀120 + Tool Diameter)
· Modular
6
· Features
· Specs
· Contact
Features
Completely dry cutting
Achieve effortless assembly line organization through the modularization of transportation equipment.
Modularizing peripheral equipment and workpiece loading devices allows for easy setup or layout changes on the production line. Therefore, it can greatly reduce the working time required for setting changes.
We offer two configurations for you to choose from based on your work type.
· Type I: Flat front type suitable for manual workpiece loading
· TypeII: Suitable for narrow-width automated applications
Specs
ProjectModel | SE15A Series | SE25A Series | |
Part diameter | External Gear （mm） | ⌀150 | ⌀250 |
Internal Gear （mm） | ⌀150 (⌀60 + tool diameter) | ⌀250 (⌀120 + Tool Diameter) | |
Modular | 4 | 6 | |
Gear width （mm） | 32 | 60 | |
Main shaft stroke speed （min-1) | 400 to 2,000 | 180 to 1,800 | |
Cutting Cycles | 1 to 4 | 1 to 4 | |
Tool shaft diameter （mm） | ⌀90 | ⌀90 | |
Main Motor (Continuous Rated Value) （kW） | 7.5 | ||
Controlled shaft count | 4 or 5 | ||
Total Power （kVA） | 22 | 24 | |
Machine Weight （kg） | 6,500 | 9,000 | |
