Dry-type gear shaper SE series
Company operating the products:Nidec Machine Tool Corporation
The SE series is a gear hobbing machine designed for complete dry cutting, offering stable and high-efficiency processing.

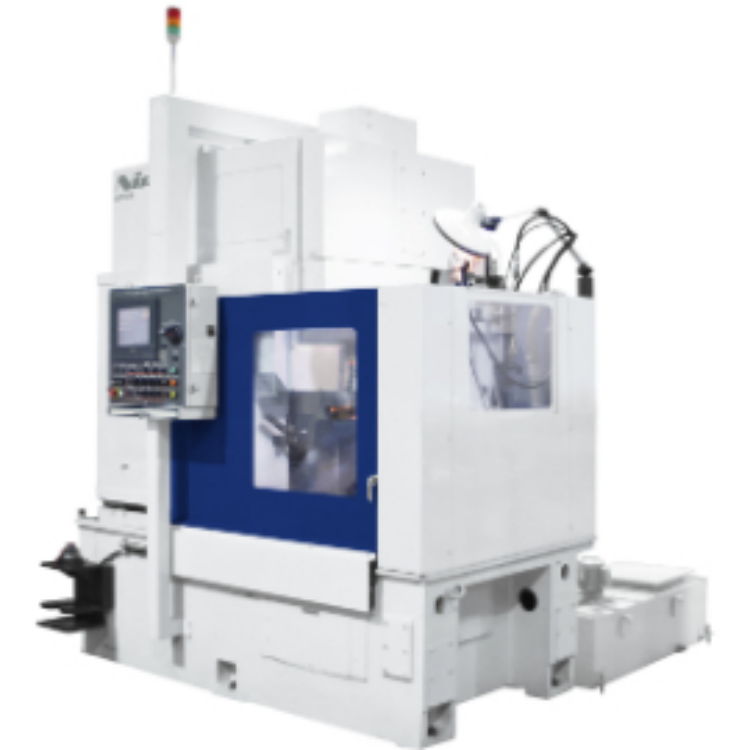

SE15A Series
· Workpiece Diameter （mm）
External Gear ⌀150
Inner Gear: ⌀150 (⌀60 + Tool Diameter)
· Modular
4

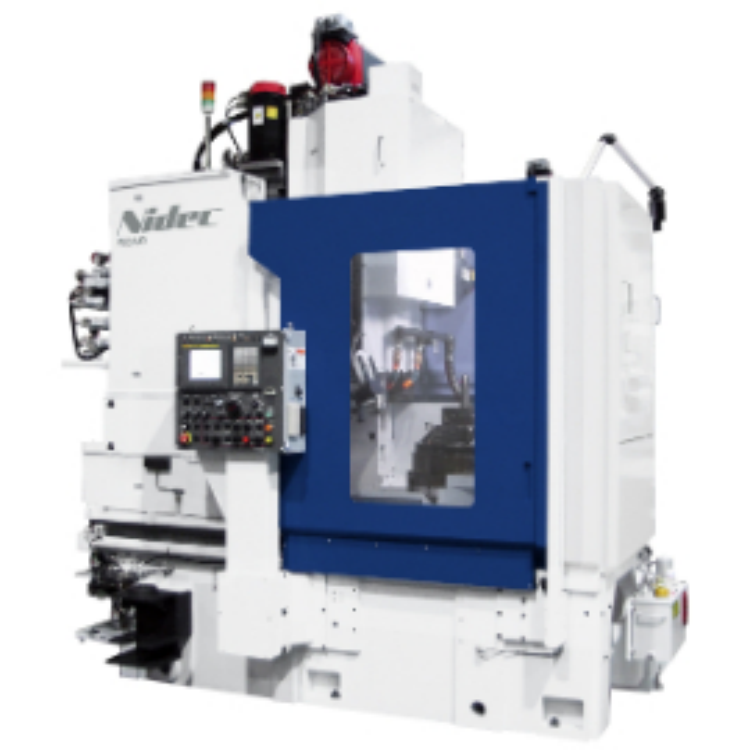

SE25A Series
· Workpiece Diameter （mm）
External Gear ⌀250
Internal Gear ⌀250 (⌀120 + Tool Diameter)
· Modular
6
· Features
· Specs
· Contact
Features
Totally dry cutting
Achieve easy assembly line organization through the modularization of transportation equipment.
Modularizing peripheral equipment and workpiece loading devices facilitates easy setup or layout changes on the production line. Therefore, it can greatly reduce the working time required for setting changes.
We offer two configurations for you to choose from based on the type of work.
· Type I: Flat front type suitable for manual workpiece loading
· TypeII: Suitable for narrow-width automated applications
Specs
Project/ Model | SE15A Series | SE25A Series | |
Workpiece Diameter | External Gear （mm） | ⌀150 | ⌀250 |
Internal Gear （mm） | ⌀150 (⌀60 + tool diameter) | ⌀250 (⌀120 + Tool Diameter) | |
Modular | 4 | 6 | |
Gear Width （mm） | 32 | 60 | |
Spindle Stroke Speed （min-1) | 400 to 2,000 | 180 to 1,800 | |
Cutting次数 | 1-4 | 1 to 4 | |
Tooling spindle diameter （mm） | ⌀90 | ⌀90 | |
Main Motor (Continuous Rated Value) （kW） | 7.5 | ||
Controlled shaft count | 4 or 5 | ||
Total electricity output （kVA） | 22 | 24 | |
Machine Weight （kg） | 6,500 | 9,000 | |
