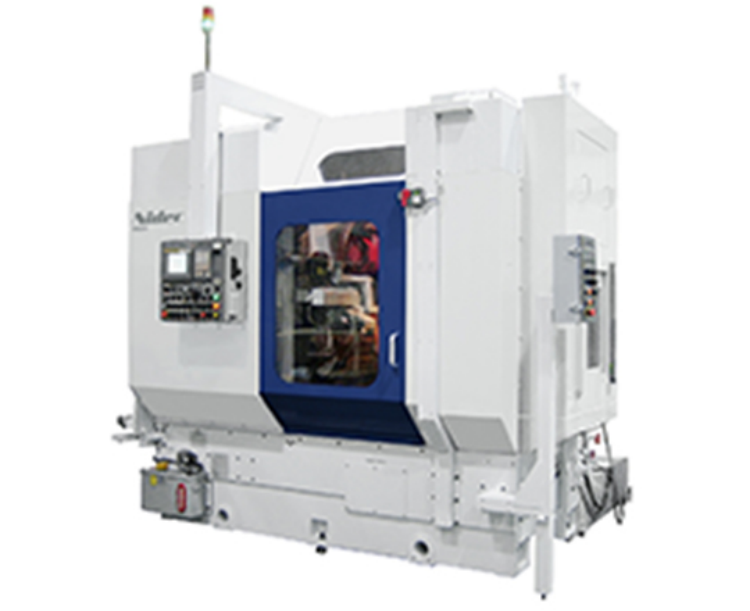

Dry hobbing machine GE Series
Company specializing in the operation of products:Nidec Machine Tool Corporation
Best-sellingThe GE series dry-cut gear hobbing machines are the world's first to achieve complete dry cutting.
GE06A Series
· Workpiece Diameter （mm）
φ60
· Modular
4
GE15A Model
· Part diameter （mm）
φ150
· Modular
4
GE20A Model
· Part diameter （mm）
φ200
· Modular
6
GE25A Model
· Workpiece Diameter （mm）
φ250
· Modular
6
· Features
· Specs
· Contact
Features
Fully Dry Cutting
Achieve simple production line setup through modularization of peripheral equipment modules.
Modular peripheral devices and workpiece loading equipment allow for easy production line setup or layout changes.
Therefore, we can significantly reduce the working time required for setting changes. We offer two types: squareI and II types, easy to align with narrow openings.
Specs
Project/ Model | GE06A Series | GE15A/Chamfering Device GE15A | GE20A/Chamfering Device GE20A | GE25A/With Chamfering Device GE25A |
Part Diameter （mm） *1 | ⌀60 | ⌀150 | ⌀200 | ⌀250 |
Modular *1 | 4 | 4 | 6 | 6 |
Axial Stroke （mm） | 200 | 250 (Option 400) | 250 (Option 400) | 250 (Option 400) |
Radial stroke （mm） | 120 | 140 (Option 125) | 225 | 210 |
Grinding wheel diameter （mm） | ⌀90 | ⌀110 | ⌀130 | ⌀130 |
Carbide Cutter Length （mm） | 150 | 180 | 230 | 230 |
Roller刀offset （mm） | 130 | 150 | 180 | 180 |
Roughing Cutter Speed （min-1) | $335 to $2,660 (Options $500 to $4,000) | 200 to 2,000 (options 300 to 3,000) | 200 to 2,000 (options 300 to 3,000) | 150 to 1,500 |
Workbench Speed （min-1) | 500 | $300 (Option $500) | $300 (Option $500) | 150 |
Total Power （kVA） | 19 (Option 23) | 22 (Option 27) | 27 (Option 30) | 36 (Option 40) |
Machine Weight （kg） | 6,300 | 8,500 | 9,200 | 11,000 |
When equipped with chamfering devices, there are limitations based on workpiece and tool specifications.
