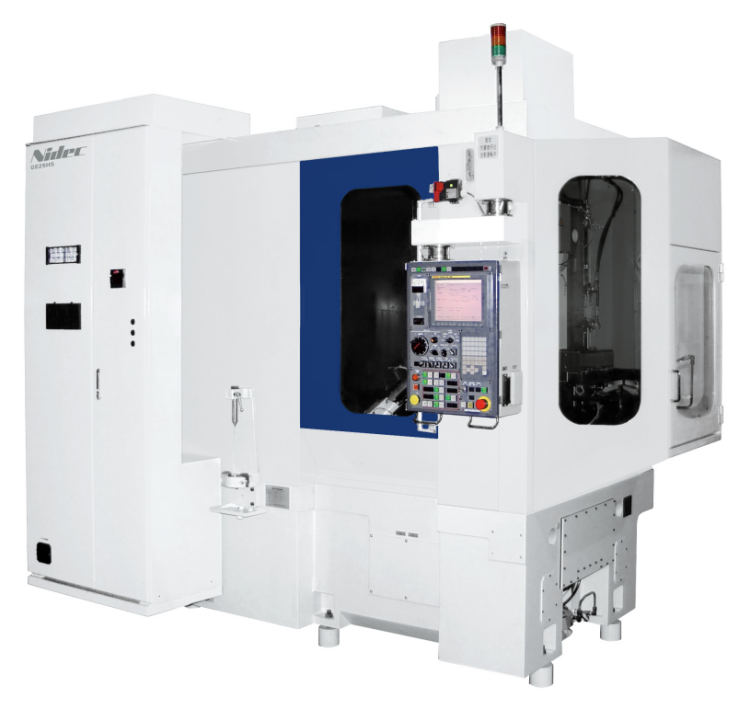

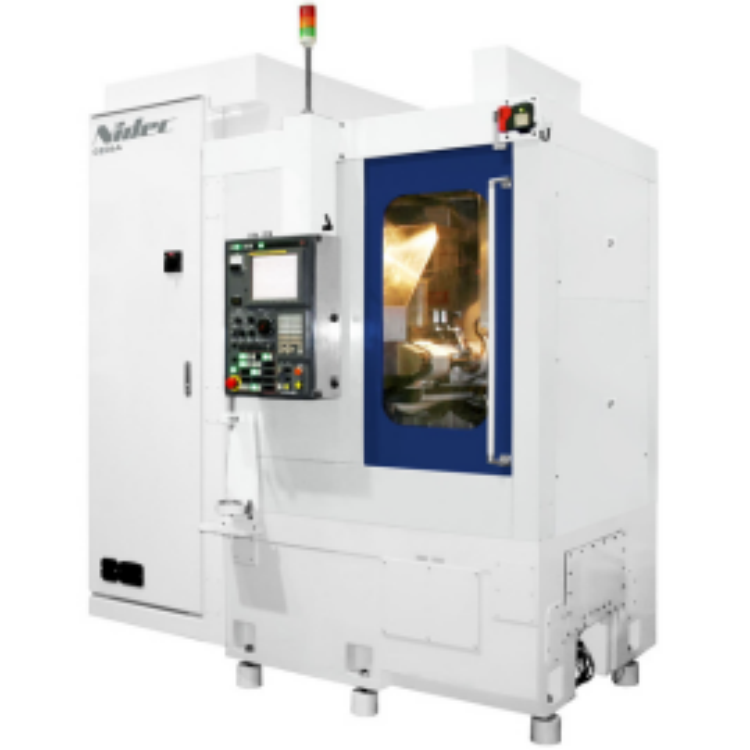

Dry hobbing machine GE Series
Company operating the product:Nidec Machine Tool Corporation
Best-sellingThe GE series of dry cutting hobbing machines is the world's first to achieve complete dry cutting.
GE06A Series
· Part diameter （mm）
φ60
· Modular
4
GE15A Model
· Part diameter （mm）
φ150
· Modular
4
GE20A Model
· Part diameter （mm）
φ200
· Modular
6
GE25A Model
· Part Diameter （mm）
φ250
· Modular
6
· Features
· Specs
· Contact
Features
Totally dry cutting
Achieve simple production line setup through modular peripheral device integration
Modular peripheral devices and workpiece loading equipment allow for easy setup or layout changes of the production line.
Therefore, it can greatly reduce the working time required for setting changes. We offer two types, squareTypes I and II, easy to align with narrow openings.
Specs
Project/ Model | GE06A Series | GE15A/With Chamfering Device GE15A | GE20A/With Chamfering Device GE20A | GE25A/With Chamfering Device GE25A |
Part diameter （mm） *1 | ⌀60 | ⌀150 | ⌀200 | ⌀250 |
Modular *1 | 4 | 4 | 6 | 6 |
Axial travel （mm） | 200 | 250 (Option 400) | $250 (Option 400) | 250 (Option 400) |
Radial stroke （mm） | 120 | 140 (Option 125) | 225 | 210 |
Grinding Wheel Diameter （mm） | ⌀90 | ⌀110 | ⌀130 | ⌀130 |
Carbide Tool Length （mm） | 150 | 180 | 230 | 230 |
Rolling Cutter Misalignment （mm） | 130 | 150 | 180 | 180 |
Roughing Tool Speed （min-1) | $335 to $2,660 (options $500 to $4,000) | 200 to 2,000 (options 300 to 3,000) | 200 to 2,000 (options 300 to 3,000) | 150 to 1,500 |
Workbench RPM （min-1) | 500 | $300 (Option 500) | $300 (Option $500) | 150 |
Total Electricity （kVA） | 19 (Option 23) | 22 (Option 27) | 27 (Option 30) | 36 (Option 40) |
Machine Weight （kg） | 6,300 | 8,500 | 9,200 | 11,000 |
When equipped with chamfering devices, there are limitations based on workpiece and tool specifications.
