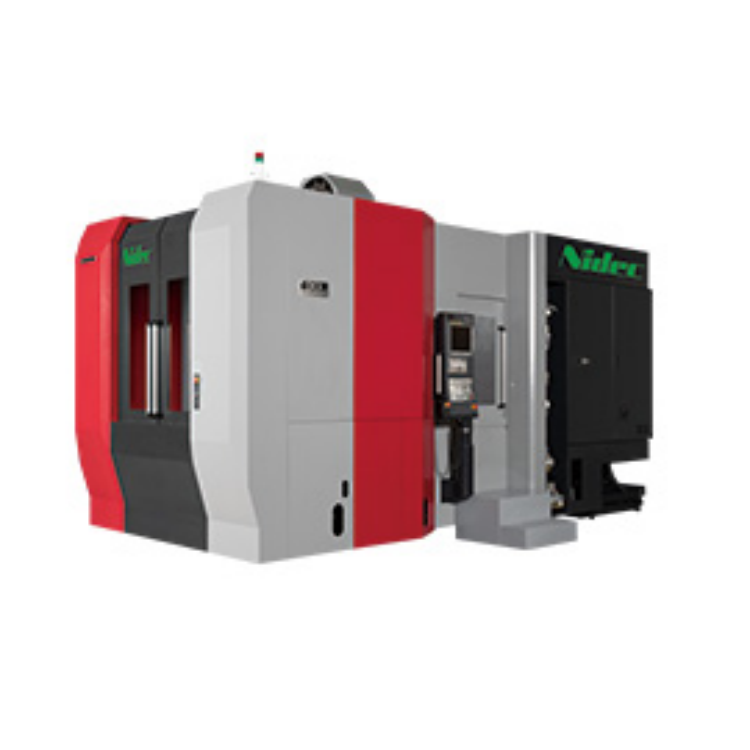

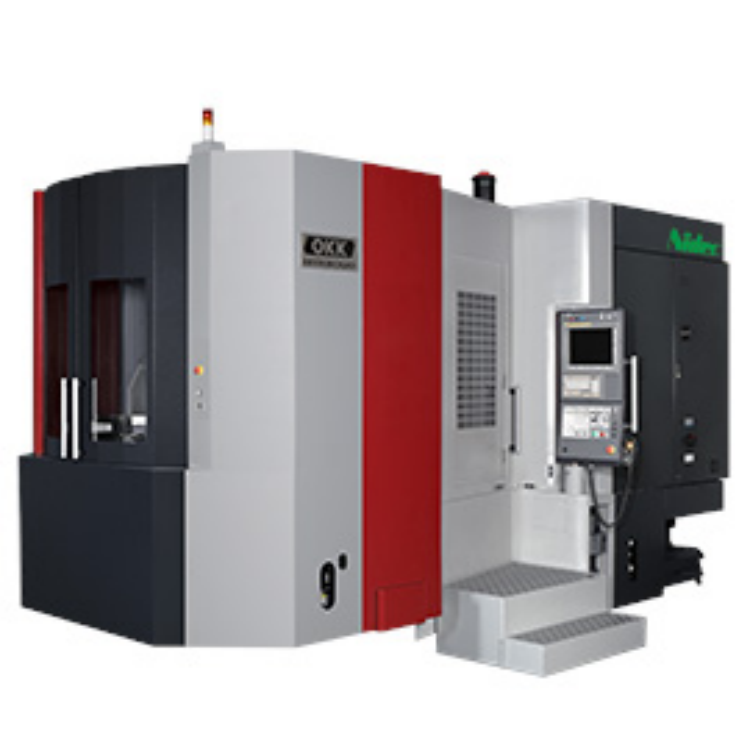

HM-X61000 Series
Company: Nidec OKK Corporation
This model excels at the efficient processing of complex shapes for automotive and aircraft parts!
This product features a high-rigidity horizontal machining center. The HM series combines 5-axis control technology developed during the production of vertical machining centers.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content that needs to be translated into American English.X/Y/Z Axis Movement | 1050/900/820 mm |
Please provide the Chinese content that needs to be translated into American English.A/B axis travel | 20 to -110/360 degrees |
Palette size | □600mm |
Table Load Capacity | 650 kg |
Rapid mobility speed | Wheelbase:54m/min （OP：75m/min） |
Spindle Speed | 12,000 minutes - 1 (OP: 8,000 minutes - 1) |
Spindle cone angle | Item Number 50 |
Number of Storage Tools | 40 （OP：60,80,116,120,160,176,236） |
Product Features
Structure
The body is made ofHMSeries with high rigidity structure, featuring high rigidity linear roller guide ways for the straight feeding mechanism, ensuring high rigidity and precision.
Table
The product features a drive system based on the ear shaft platform, a newly adopted rolling device replacing the traditional sliding system, and a gapless mechanism with an inclined shaft, offering enhanced cutting accuracy.
