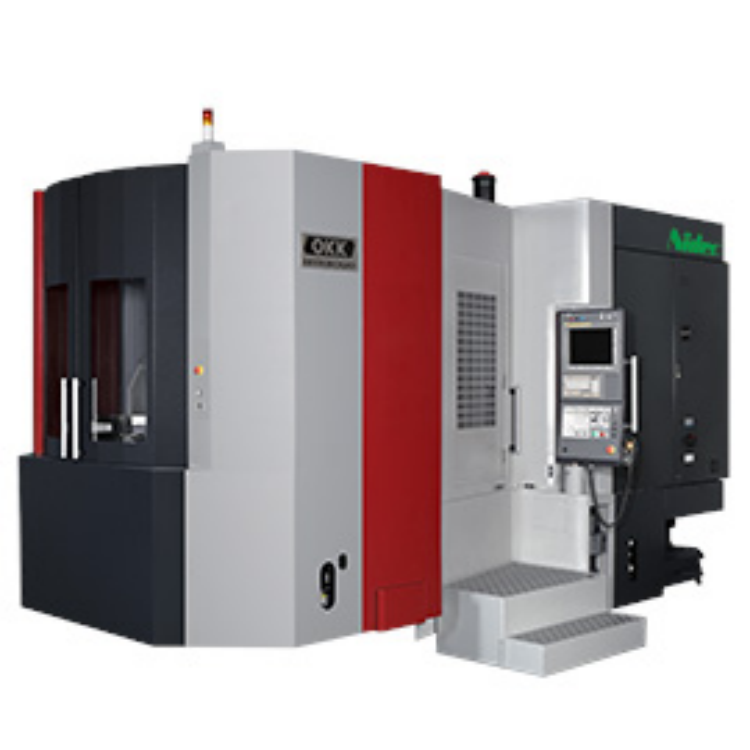

HM-X6000 Series
Company: Nidec OKK Corporation
This model excels in the efficient processing of complex shapes for automotive and aircraft components!
This product features a high-rigidity horizontal machining center. The HM series combines 5-axis control technology developed during the production of vertical machining centers.
· Product Data
· Product Features
Product Data
Product Specifications
Please provide the Chinese content to be translated.X/Y/Z axis movement | 1050/900/820 mm |
Please provide the Chinese content to be translated.A/B axis travel | 20 to -110/360 degrees |
Palette dimensions | □600mm |
Table Load Capacity | 650 kg |
Rapid mobility speed | Wheelbase:54m/min （OP：75m/min） |
Spindle Speed | 12,000 minutes - 1 (OP: 8,000 minutes - 1) |
Main shaft conical taper | Item Number 50 |
Number of Tools Storable | 40 （OP：60,80,116,120,160,176,236） |
Product Features
Structure
The body is made ofHMSeries featuring high rigidity structure; linear feed mechanism utilizes high rigidity linear roller guides, ensuring high rigidity and precision.
Table
This product features a drive system based on an ear shaft stand, a newly adopted rolling device replacing the traditional sliding system, and a gapless mechanism with an inclined shaft, offering superior cutting precision.
