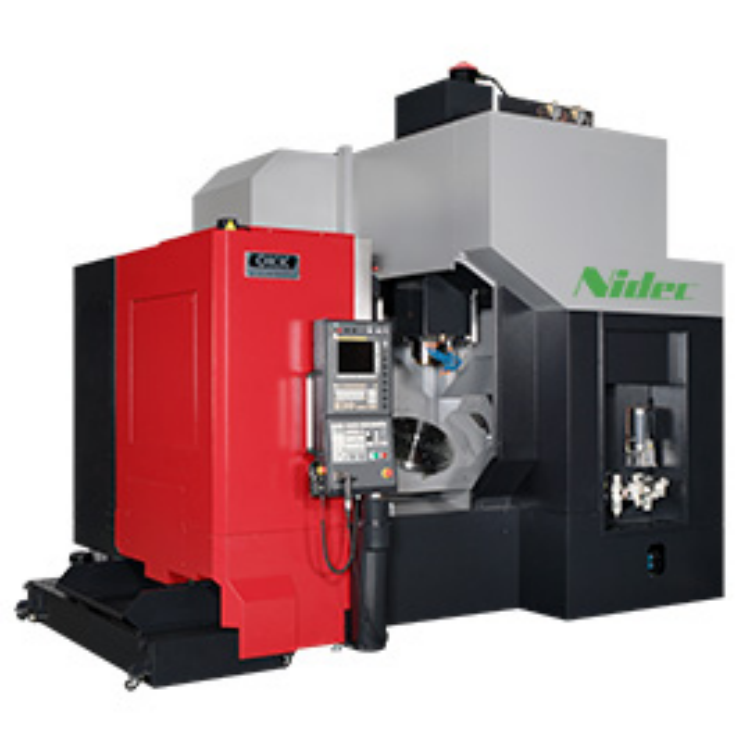

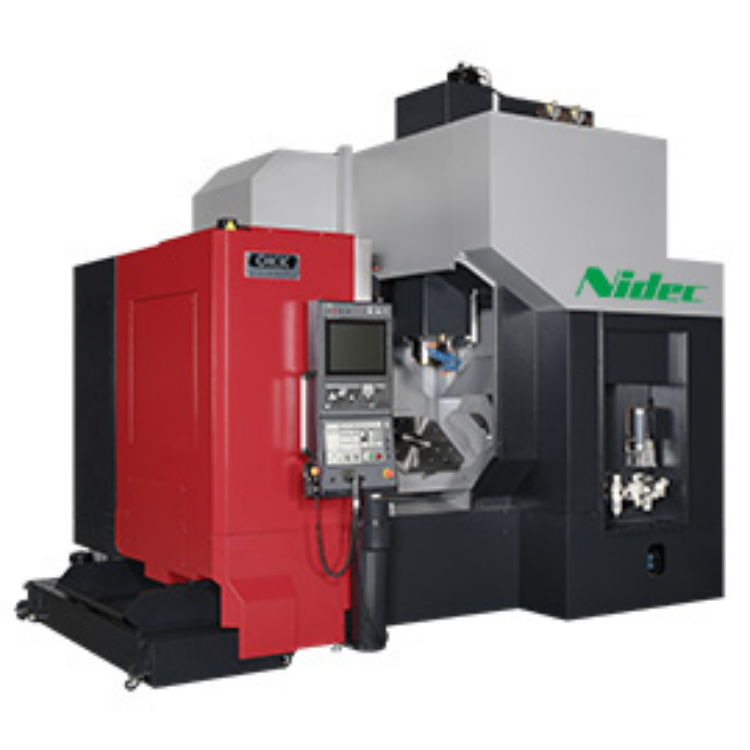

VC-X500 Series
Company: Nidec OKK Corporation
This machine tool showcases its prowess in efficiently integrating and processing complex and variable molds and components!
Nidec OKK's technology is focused in this unique 5-axis model. Process integration shortens the delivery time of the VCX-350, while setup improvements enhance its accuracy and ease the operator's workload.
· Product Data
· Product Features
Product Data
Product Specifications
InX/Y/Z axis movement | 700/850/610 mm |
InA/C shaft movement | -120 to 30/360 degrees |
Table dimensions | 500mm |
Table Load Capacity | 500 kg |
Rapid movement speed | Wheelbase:48m/min Z-axis: 32m/min |
Spindle Speed | 12,000 minutes - 1 (OP: 20,000 minutes - 1) |
Spindle taper | Item Number 40 |
Number of storage tools available | 40 （OP：60,80,120） |
Product Features
Main Structure
The product has expanded the processing area, enhancing space utilization.Y Axial displacement increased to240mm，z Axial displacement increased to150mmIn addition to expanding the processing area,VCX-500 The workpiece loading range has been increased compared to the existing models.60%。
Operational ease of the workbench
The operator of this product is positioned at a distance from the center of the workbench. 620mmThe distance between the floor surface and the top of the workbench is1,080mmThe operator's distance from the center of the main shaft is120mmWith these exceptional accessibility,VCX-500 Enhanced work efficiency.
